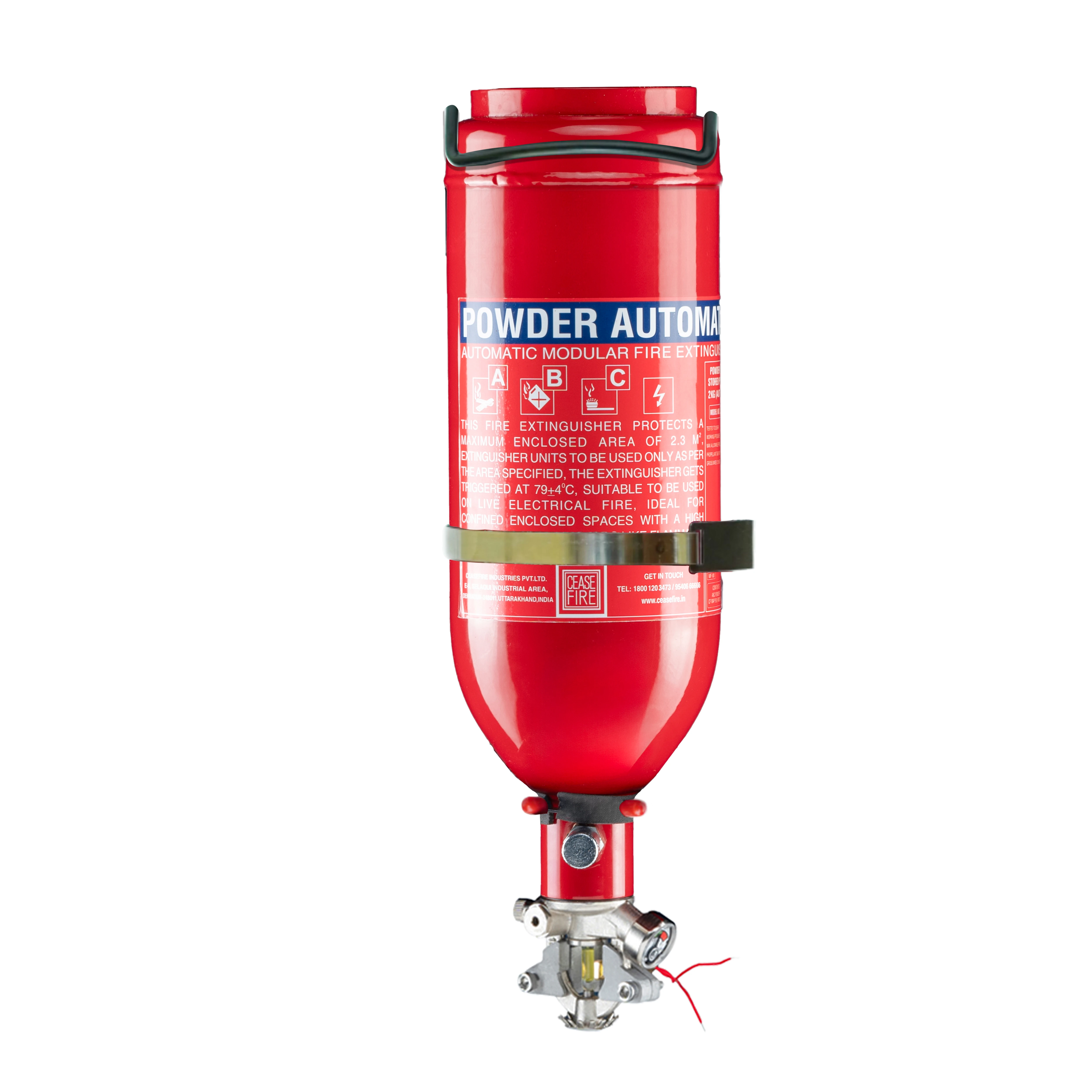

2kg Ceasefire Atom-X Pro Automatic Fire Extinguisher (Wall Mounted) - MAP50 Dry Powder

The Ceasefire Atom-X M Series Automatic Fire Extinguisher is the next generation of fire suppression technology which has evolved to smartly integrate standalone ceiling mounted and wall mounted fire extinguishing units with an intelligent detection module to form a formidable fire protection system. The Ceasefire Atom-X M Series Automatic Fire Extinguisher can be mounted on the ceiling or wall.

The biggest feature of the system is not only that it is retrofittable but it is tailor-made for the environment it is installed in. The kind of extinguishing units deployed (wall mounted or ceiling mounted) and the detection module configured (types of sensors chosen) purely depends on the unique risks a premises is faced with.

How The System Works

The flagship feature of the Atom X Pro system is its intelligent fire detection and actuation module. The Ceasefire Atom X Pro can be configured using a wide variety of detectors such as smoke detectors, beam detectors, heat detectors, or others depending upon on the need of the premises.

The Atom X acts on the principle of cross-zoning. Only when two or more detectors from two separate zones confirm the fire episode to the control panel, the panel sends an activation signal to the system. The activation signal is sent to the Metron Actuator in the form of an electrical impulse.

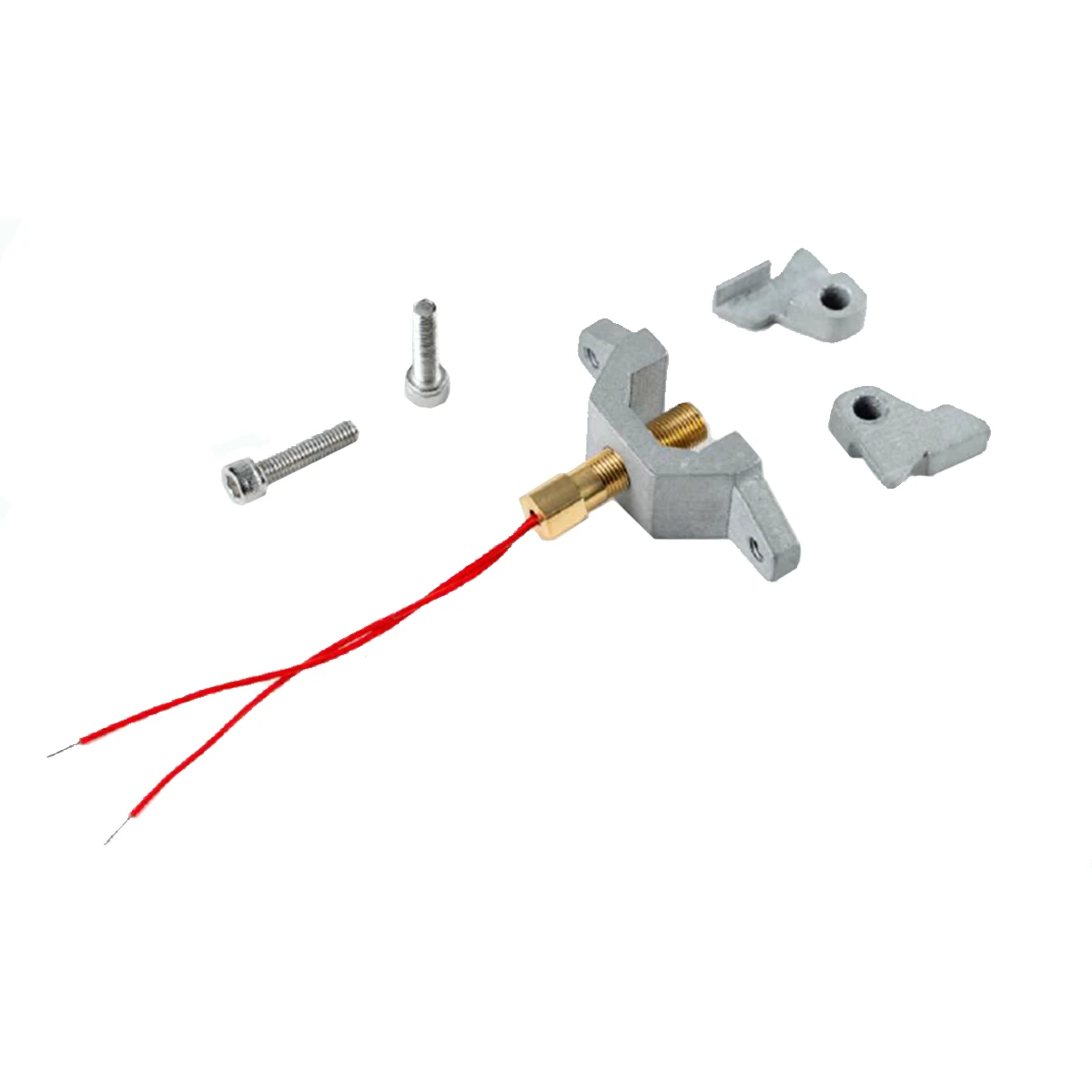

Metron Actuator
On receiving this electrical impulse a metal pin is fired inside the actuator that breaks the glass vial placed at the discharge point of Atom X units, triggering the discharge of the agent. What makes the Atom X truly versatile is that all Atom X units are triggered simultaneously to achieve total flooding results.

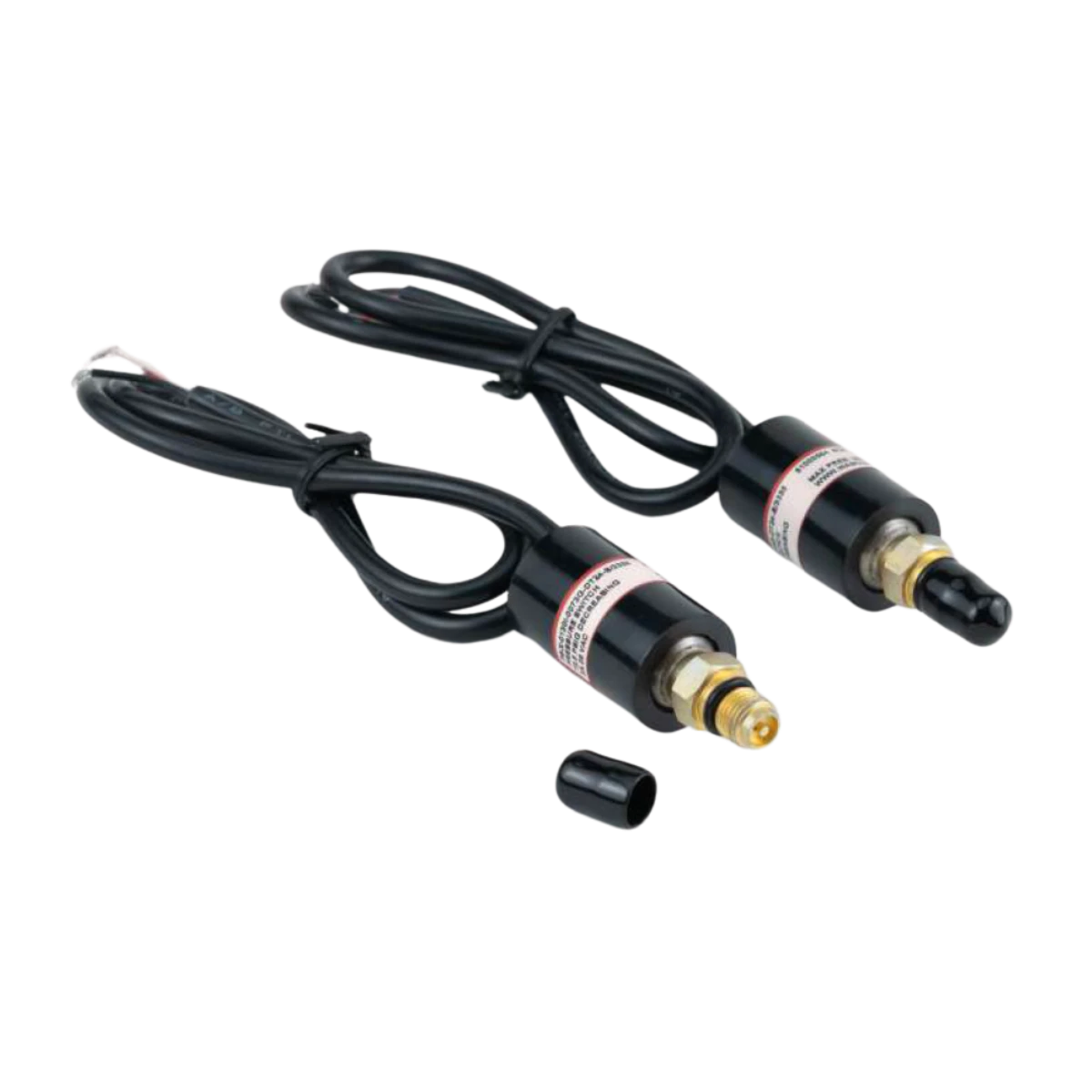

Pressure Switch
Extinguishing units deployed in the network are monitorable with the presence of a pressure switch. A pressure switch will trigger alarms in the event of a fire, which adds an extra element of safety to the Atom-X Pro. Furthermore, a pressure switch allows the user to do preventive maintenance of the system via a control panel.

• Easy To Install: Retrofittable system and can be installed with least amount of structural changes in a premises.

• Automatic Actuation: Detects fire through thermal sensor and activates automatically.

• Targeted Protection: Option flexible mounting bracket that enables optimal positioning of the extinguisher in the risk zone proving targeted protection.

• Electrical Actuation Option: The units can be activated electrically by opting for metron actuators and connecting them to a network of detectors via a control panel to be configured as a Total Flooding System.

• Certification: PED and UKCA-PED approved.

• Secure Mounting Bracket: Comes with a secure mounting bracket for direct installation on the wall.

• Saves Space: Agent cylinders are wall mounted units that do not require any floor space.
