Astro Intumescent Fire Door Strip - Fire and Smoke Seal (Brush Type)
We Recommend
Bestseller
Bulk Buy Options
Code: AFFOS001/017
from
INC VAT
Code: AFFOS001/017

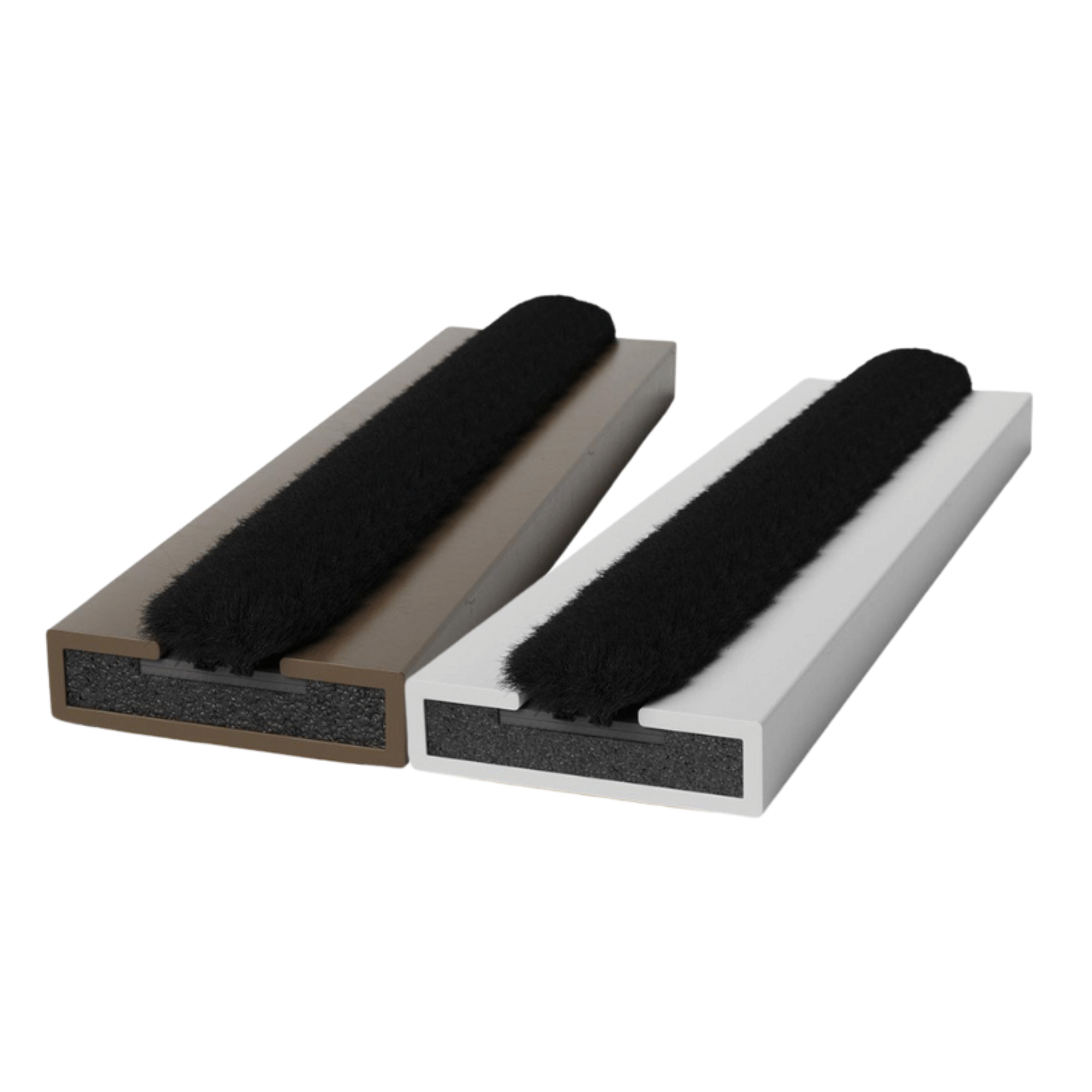

Intumescent fire and smoke seals for fire door assemblies. An intumescent graphite based fire seal contained within a PVC sleeve for fitting into a rebate to either the leaves or the frame of a door. In the event of a fire the seal expands (intumesces) to many times its original volume and seals the gap around the door to provide a safe and effective barrier against the passage of fire, smoke and hot gases.
Astroflame Intumescent Fire Seals are available with or without a cold smoke seal in the form of a nylon pile. Astroflame smoke seals provide a permanent barrier to smoke - particularly important as smoke fumes travel faster and further than the fire itself.
All Astro fire and smoke seals are supplied with a self-adhesive backing tape as standard to facilitate quick and easy fitting.
Tested for 30 minutes with 10mm and 15mm - Certifire Approved.
Tested for 60 minutes with 20mm and 25mm.
Smoke seals tested to EN1634-3
Astro Intumescent Fire Door Strip -Fire and Smoke Seal (Brush Type) | ||
Certifire-approved fire seals | BS 476 Part 22:1987 tested | 30 or 60 min rated |
2.1 m lengths | Self-adhesive backing | Available in White or Brown |
Astro Intumescent Fire Door Strip -Fire and Smoke Seal (Brush Type) | ||||
Product Code | AF1004 FS | AF1504 FS | AF2004 FS | AF2504 FS |
Type | Fire & Smoke | Fire & Smoke | Fire & Smoke | Fire & Smoke |
Fire Rating | 30 Mins | 30 Mins | 60 Mins | 60 Mins |
Profile Size | 10mm x 4mm | 15mm x 4mm | 20mm x 4mm | 25mm x 4mm |
Lengths | 1.05m or 2.1m | 1.05m or 2.1m | 1.05m or 2.1m | 1.05m or 2.1m |
A. Intumescent seals are materials that expand significantly when exposed to heat, such as during a fire.
This expansion helps to close gaps around fire doors, preventing the passage of fire and smoke.
They are a form of passive fire protection, meaning they work automatically without needing human intervention.
A. Fire doors are designed to contain fires, and intumescent seals are a key component in achieving this.
They help to maintain the fire and smoke resistance of the door assembly.
Without them, gaps around the door can allow fire and smoke to spread, potentially causing significant damage and endangering lives.
Fire-only seals: Expand under heat to block fire
Fire and smoke seals: Expand under heat and also include a brush or rubber seal to block smoke at ambient temperatures.
Always use the correct type of intumescent seal for your fire door.
Regularly inspect and maintain the seals.
If you are unsure about any aspect of intumescent seals, consult with a fire safety professional.
Intumescent fire and smoke seals for fire door assemblies. An intumescent graphite based fire seal contained within a PVC sleeve for fitting into a rebate to either the leaves or the frame of a door. In the event of a fire the seal expands (intumesces) to many times its original volume and seals the gap around the door to provide a safe and effective barrier against the passage of fire, smoke and hot gases.
Astroflame Intumescent Fire Seals are available with or without a cold smoke seal in the form of a nylon pile. Astroflame smoke seals provide a permanent barrier to smoke - particularly important as smoke fumes travel faster and further than the fire itself.
All Astro fire and smoke seals are supplied with a self-adhesive backing tape as standard to facilitate quick and easy fitting.
Tested for 30 minutes with 10mm and 15mm - Certifire Approved.
Tested for 60 minutes with 20mm and 25mm.
Smoke seals tested to EN1634-3
Astro Intumescent Fire Door Strip -Fire and Smoke Seal (Brush Type) | ||
Certifire-approved fire seals | BS 476 Part 22:1987 tested | 30 or 60 min rated |
2.1 m lengths | Self-adhesive backing | Available in White or Brown |
Astro Intumescent Fire Door Strip -Fire and Smoke Seal (Brush Type) | ||||
Product Code | AF1004 FS | AF1504 FS | AF2004 FS | AF2504 FS |
Type | Fire & Smoke | Fire & Smoke | Fire & Smoke | Fire & Smoke |
Fire Rating | 30 Mins | 30 Mins | 60 Mins | 60 Mins |
Profile Size | 10mm x 4mm | 15mm x 4mm | 20mm x 4mm | 25mm x 4mm |
Lengths | 1.05m or 2.1m | 1.05m or 2.1m | 1.05m or 2.1m | 1.05m or 2.1m |
A. Intumescent seals are materials that expand significantly when exposed to heat, such as during a fire.
This expansion helps to close gaps around fire doors, preventing the passage of fire and smoke.
They are a form of passive fire protection, meaning they work automatically without needing human intervention.
A. Fire doors are designed to contain fires, and intumescent seals are a key component in achieving this.
They help to maintain the fire and smoke resistance of the door assembly.
Without them, gaps around the door can allow fire and smoke to spread, potentially causing significant damage and endangering lives.
Fire-only seals: Expand under heat to block fire
Fire and smoke seals: Expand under heat and also include a brush or rubber seal to block smoke at ambient temperatures.
Always use the correct type of intumescent seal for your fire door.
Regularly inspect and maintain the seals.
If you are unsure about any aspect of intumescent seals, consult with a fire safety professional.
