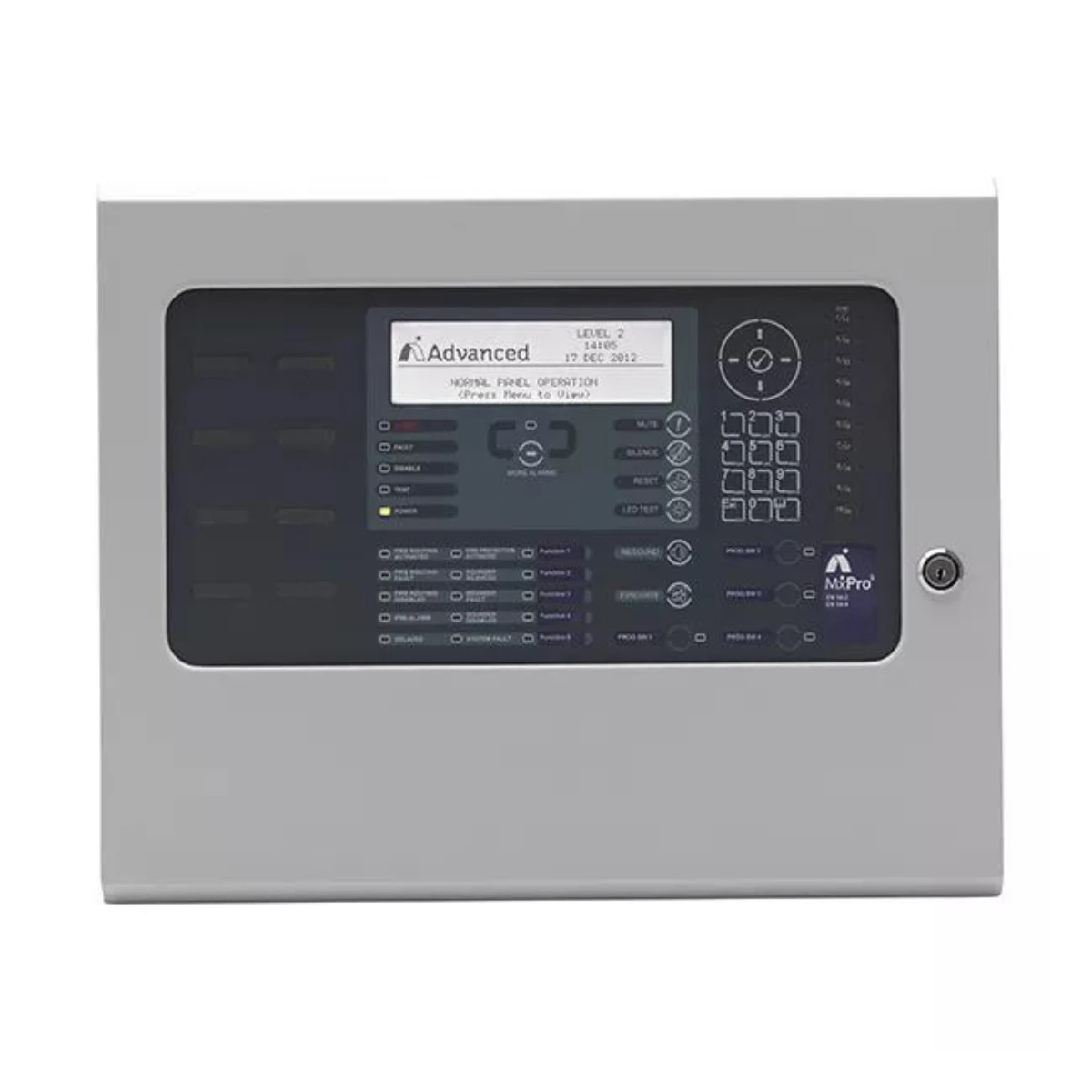

Advanced Electronics MX-5202 2 Loop Addressable Panel
.png)
from
INC VAT
Code: ADV/52024
The Advanced Electronics Mx-5202 2 Loop Addressable Panel features the latest dual flashbased microprocessor technology combined with a high resolution / high contrast graphical LCD display and tactile keypad providing a simple 'Select & Click' programming aid for Engineer configuration and End-User operation.
Powerful Cause and Effect programming coupled with 'DynamiX' zoning, and enhanced ‘Trace Diagnostics’ makes the Mx5202 panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable on-site via the on-board alphanumeric keypad, or PC-NeT Configuration Software.
2 Loop Panel
Programmable Push Buttons
Fully expandable
Fully Networkable
20 Zone LEDs
25 System LEDs
Rack-mount options
Dedicated loop driver for Apollo & Hochiki protocol support.Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware expansion
Dual flash-based microprocessor technology with Real-Time Clock on-board
Dedicated USB & RS232 Serial Port for direct PC or modem connection.Installer friendly 'Auto-learn', 'Loop Detection' and on-board Scope facility for ease of Commissioning and Fault finding.Fully programmable via the on-board alphanumeric keypad, or PC configuration tools
The Graphical display can be configured to operate with virtually any language or character set, and allow the installer's logo to be applied using the ‘Logo’ application software
Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination
Rack-mount options available.Integral ‘P-Bus’ for system expansion via available option cards
Connection to the ‘Ad-NeT’ peer-to-peer network is achieved using a simple plug-in network card allowing the system to share up to 2000 zones with full cross panel reporting, control and site-wide cause and effect functionality
Approved to BS EN54 part 2, 4 and 13
The Advanced Electronics Mx-5202 2 Loop Addressable Panel features the latest dual flashbased microprocessor technology combined with a high resolution / high contrast graphical LCD display and tactile keypad providing a simple 'Select & Click' programming aid for Engineer configuration and End-User operation.
Powerful Cause and Effect programming coupled with 'DynamiX' zoning, and enhanced ‘Trace Diagnostics’ makes the Mx5202 panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable on-site via the on-board alphanumeric keypad, or PC-NeT Configuration Software.
2 Loop Panel
Programmable Push Buttons
Fully expandable
Fully Networkable
20 Zone LEDs
25 System LEDs
Rack-mount options
Dedicated loop driver for Apollo & Hochiki protocol support.Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware expansion
Dual flash-based microprocessor technology with Real-Time Clock on-board
Dedicated USB & RS232 Serial Port for direct PC or modem connection.Installer friendly 'Auto-learn', 'Loop Detection' and on-board Scope facility for ease of Commissioning and Fault finding.Fully programmable via the on-board alphanumeric keypad, or PC configuration tools
The Graphical display can be configured to operate with virtually any language or character set, and allow the installer's logo to be applied using the ‘Logo’ application software
Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination
Rack-mount options available.Integral ‘P-Bus’ for system expansion via available option cards
Connection to the ‘Ad-NeT’ peer-to-peer network is achieved using a simple plug-in network card allowing the system to share up to 2000 zones with full cross panel reporting, control and site-wide cause and effect functionality
Approved to BS EN54 part 2, 4 and 13
