Apollo 55000-760APO | XP95 Mini Addressable Switch Monitor with Isolator
Code: FPS003/004
INC VAT
Code: FPS003/004

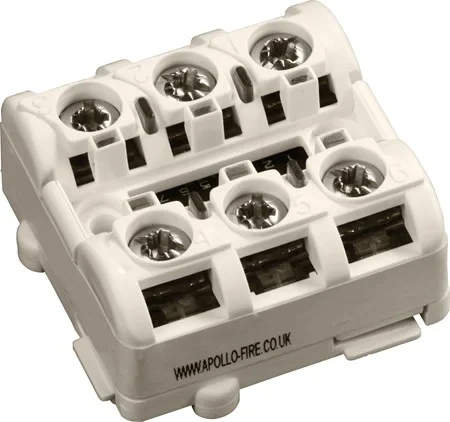

The Apollo 55000-760APO DIN-Rail Mini Switch Monitor Module is a compact, high-performance device for monitoring switches in space-restricted environments. Designed for DIN rail mounting, it can be integrated into control panels, fire alarm systems, and emergency systems.
It supports both Apollo’s XP95 and Discovery protocols, ensuring seamless integration with modern addressable fire detection systems.
Engineered for efficiency, it features a very low standby current of only 0.2mA and operates reliably across a wide temperature range of -20°C to 60°C. This makes it very well suited to challenging environments, including dusty or industrial settings.
The unit is constructed for durability, backed by a 10-year manufacturer warranty and optimised for long-term reliable performance in compact installations.
Key features:
Low quiescent current: 0.2mA with 20kΩ EOL resistor
Wide operating range: -20°C to 60°C
Compatible with Apollo XP95 and Discovery protocols
Ideal for control panels, emergency systems, and industrial use
Apollo 55000-760APO
Four input states - 'normal', 'fault', 'pre-alarm' and 'alarm'
Two visible LEDs
Loop-Powered
Din rail mount
Model | Apollo 55000-760APO |
Product Type | DIN-Rail Mini Switch Monitor Module |
Warranty | 10 years |
Colour | White |
Weight | 31.3g |
Product Length | 20mm / 0.79in |
Product Width | 39mm / 1.54in |
Product Depth | 39mm / 1.54in |
Standards | EN 54-17, EN 54-18 |
Approvals | FG, LPCB, VdS, CPR |
Protocol Voltage (Min) | 5V |
Protocol Voltage (Max) | 9V |
Protocol Voltage | 5 to 9V peak to peak |
Supply Voltage (Max) | 28V DC |
Supply Voltage (Min) | 17V DC |
Supply Voltage (Vmin-Vmax) | 17 to 28V DC |
Power-up Surge Current | 0.8mA |
Quiescent Current | 0.2mA (with 20kΩ EOL fitted) |
Humidity (Min) | 0% RH |
Humidity (Max) | 95% RH |
Operating Temperature | -20°C to 60°C / -4°F to 140°F |
Operating Temperature (Max) | 60°C / 140°F |
Operating Temperature (Min) | -20°C / -4°F |
The Apollo 55000-760APO DIN-Rail Mini Switch Monitor Module is a compact, high-performance device for monitoring switches in space-restricted environments. Designed for DIN rail mounting, it can be integrated into control panels, fire alarm systems, and emergency systems.
It supports both Apollo’s XP95 and Discovery protocols, ensuring seamless integration with modern addressable fire detection systems.
Engineered for efficiency, it features a very low standby current of only 0.2mA and operates reliably across a wide temperature range of -20°C to 60°C. This makes it very well suited to challenging environments, including dusty or industrial settings.
The unit is constructed for durability, backed by a 10-year manufacturer warranty and optimised for long-term reliable performance in compact installations.
Key features:
Low quiescent current: 0.2mA with 20kΩ EOL resistor
Wide operating range: -20°C to 60°C
Compatible with Apollo XP95 and Discovery protocols
Ideal for control panels, emergency systems, and industrial use
Apollo 55000-760APO
Four input states - 'normal', 'fault', 'pre-alarm' and 'alarm'
Two visible LEDs
Loop-Powered
Din rail mount
Model | Apollo 55000-760APO |
Product Type | DIN-Rail Mini Switch Monitor Module |
Warranty | 10 years |
Colour | White |
Weight | 31.3g |
Product Length | 20mm / 0.79in |
Product Width | 39mm / 1.54in |
Product Depth | 39mm / 1.54in |
Standards | EN 54-17, EN 54-18 |
Approvals | FG, LPCB, VdS, CPR |
Protocol Voltage (Min) | 5V |
Protocol Voltage (Max) | 9V |
Protocol Voltage | 5 to 9V peak to peak |
Supply Voltage (Max) | 28V DC |
Supply Voltage (Min) | 17V DC |
Supply Voltage (Vmin-Vmax) | 17 to 28V DC |
Power-up Surge Current | 0.8mA |
Quiescent Current | 0.2mA (with 20kΩ EOL fitted) |
Humidity (Min) | 0% RH |
Humidity (Max) | 95% RH |
Operating Temperature | -20°C to 60°C / -4°F to 140°F |
Operating Temperature (Max) | 60°C / 140°F |
Operating Temperature (Min) | -20°C / -4°F |
