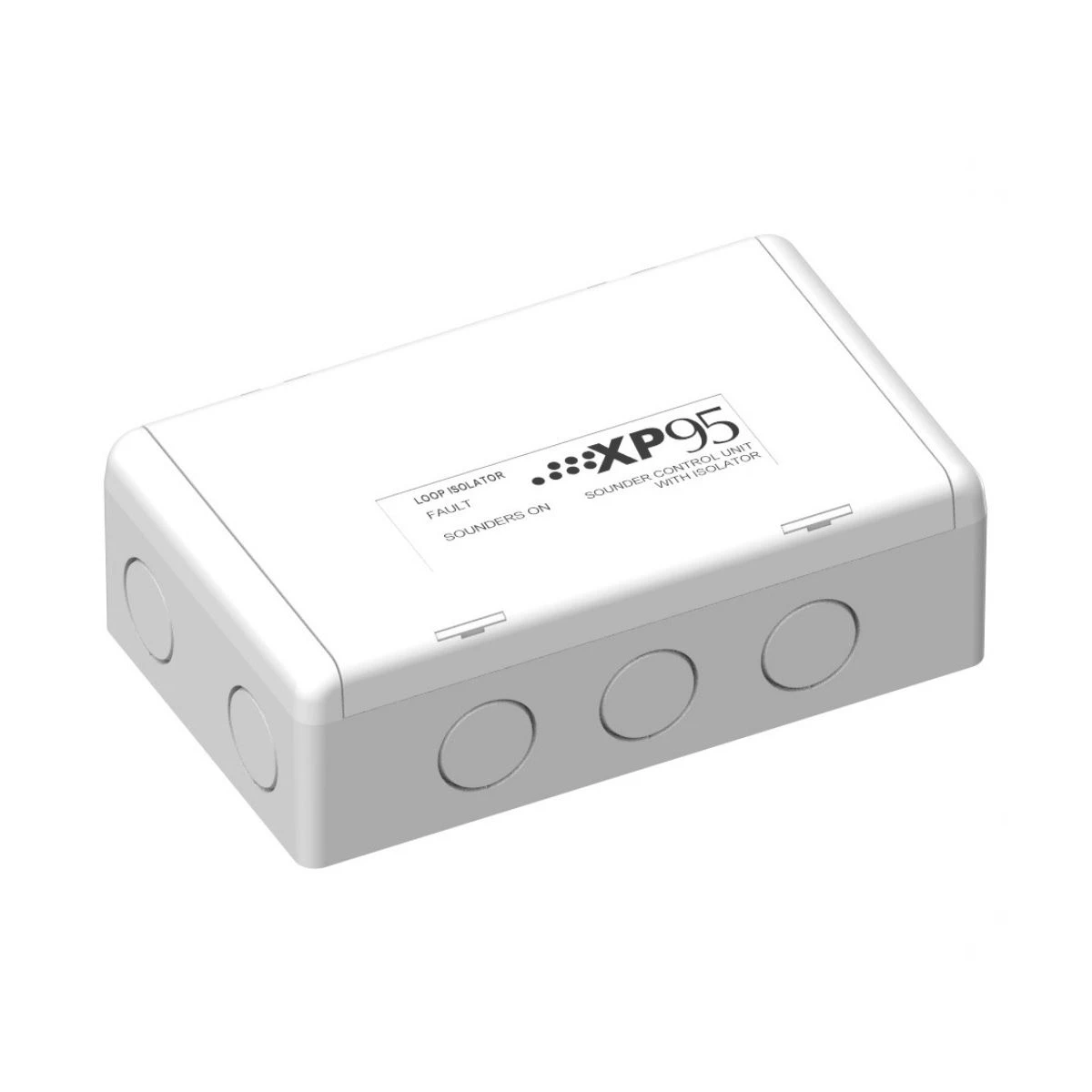

                Apollo 55000-852APO Addressable Sounder Control Unit with Isolator



            Code: APO/001
INC VAT
Code: APO/001
The Apollo XP95 AV Control Module (55000-852APO) is compatible with any fire panel using the XP95 or Discovery protocol. The Sounder Control Unit with Isolator manages a zone of externally powered sounders, visual signals, and VADs, while also communicating their status to control systems compatible with Apollo.
This unit effectively oversees a zone of conventional sounders and delivers real-time status updates to the control panel.
Designed for seamless integration in fire alarm systems, the 55000-852APO provides dependable monitoring and control of sounders, improving both system performance and the safety of your fire detection setup.
EN 54-17 & EN 54-18 Certified
Allows sounders to be operated 1 second on, 1 second off
Maybe synchronised with loop sounders
Suitable for semi-flush or surface mounting
XP95, Discovery compatible
| Part Number | 55000-852APO |
| Warranty | 10 year |
| Mechanical | |
| Colour | White |
| Weight | 240g |
| Product length | 48mm |
| Product width | 150mm |
| Product depth | 90mm |
| Product length (inches) | 1.89in |
| Product width (inches) | 5.91in |
| Product depth (inches) | 3.54in |
| Standards | EN 54-17, EN 54-18 |
| Approvals | FG, LPCB, VdS, CPR |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Power-up surge current | 2.6mA |
| Maximum power-up time | <1 second |
| On resistance | 0.2Ω |
| Sounder circuit voltage (max) | 32V dc |
| Sounder circuit currents | 30V dc |
| Sounder circuit currents tested at | 1A |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Humidity (max) | 95% RH |
| Humidity (min) | 0% RH |
| Operating temperature | -20 to 70°C |
| Operating temperature (max) | 70°C |
| Operating temperature (min) | -20°C |
| Designed to | IP54 |
| Operating temperature (°F) | -4 to 158°F |
| Operating temperature (max) | 158°F |
| Operating temperature (min) | -4°F |
The Apollo XP95 AV Control Module (55000-852APO) is compatible with any fire panel using the XP95 or Discovery protocol. The Sounder Control Unit with Isolator manages a zone of externally powered sounders, visual signals, and VADs, while also communicating their status to control systems compatible with Apollo.
This unit effectively oversees a zone of conventional sounders and delivers real-time status updates to the control panel.
Designed for seamless integration in fire alarm systems, the 55000-852APO provides dependable monitoring and control of sounders, improving both system performance and the safety of your fire detection setup.
EN 54-17 & EN 54-18 Certified
Allows sounders to be operated 1 second on, 1 second off
Maybe synchronised with loop sounders
Suitable for semi-flush or surface mounting
XP95, Discovery compatible
| Part Number | 55000-852APO |
| Warranty | 10 year |
| Mechanical | |
| Colour | White |
| Weight | 240g |
| Product length | 48mm |
| Product width | 150mm |
| Product depth | 90mm |
| Product length (inches) | 1.89in |
| Product width (inches) | 5.91in |
| Product depth (inches) | 3.54in |
| Standards | EN 54-17, EN 54-18 |
| Approvals | FG, LPCB, VdS, CPR |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Power-up surge current | 2.6mA |
| Maximum power-up time | <1 second |
| On resistance | 0.2Ω |
| Sounder circuit voltage (max) | 32V dc |
| Sounder circuit currents | 30V dc |
| Sounder circuit currents tested at | 1A |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Humidity (max) | 95% RH |
| Humidity (min) | 0% RH |
| Operating temperature | -20 to 70°C |
| Operating temperature (max) | 70°C |
| Operating temperature (min) | -20°C |
| Designed to | IP54 |
| Operating temperature (°F) | -4 to 158°F |
| Operating temperature (max) | 158°F |
| Operating temperature (min) | -4°F |
