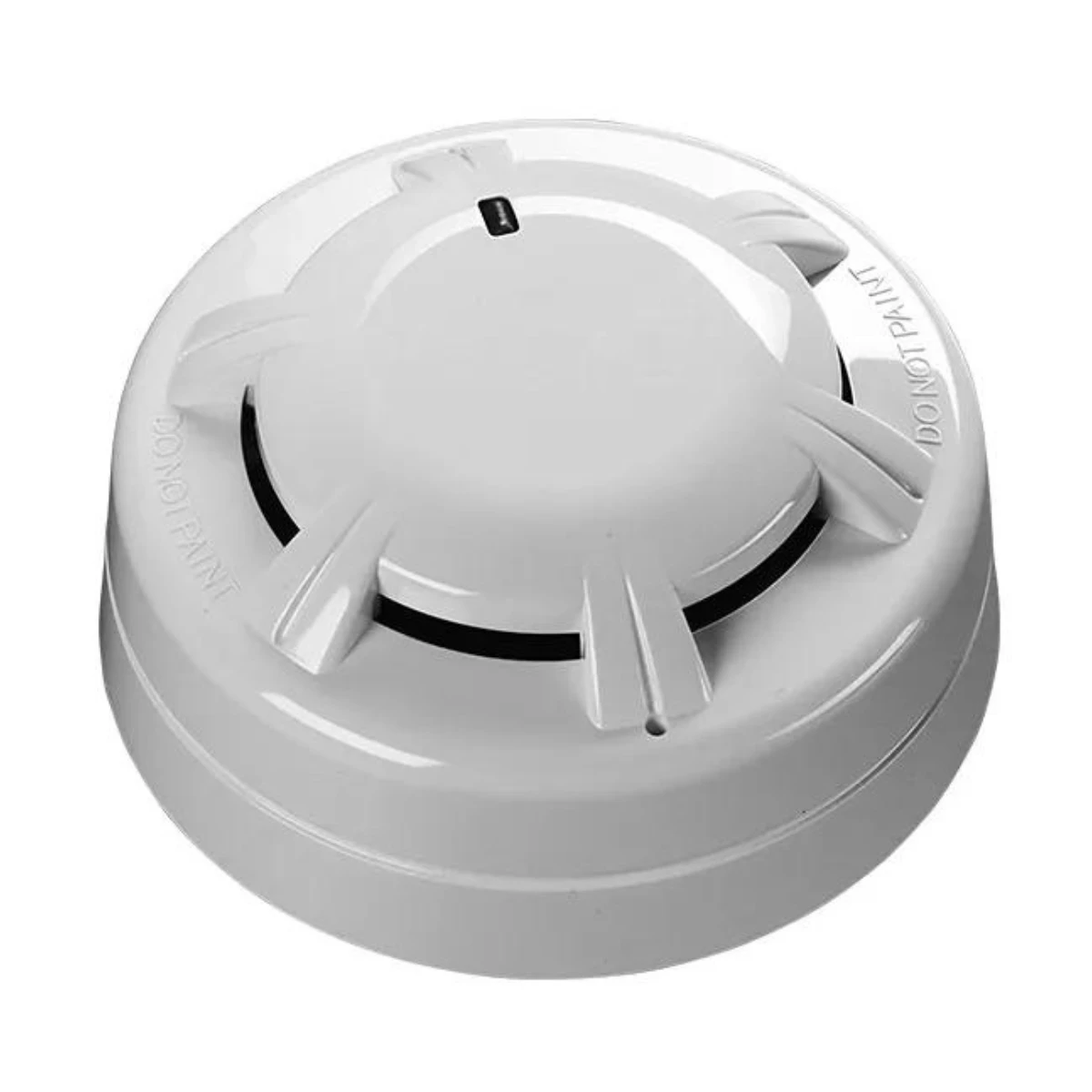

Apollo ORB-OP-02032-APO Orbis (Non Latching) Optical Smoke Detector w/ Relay Base
Code: APORBD001/038
INC VAT
Code: APORBD001/038
The Apollo ORB-OP-02032-APO Orbis Conventional Optical Smoke Detector with Relay Base is a non-latching detector designed for reliable smoke detection in commercial and industrial environments.
Operating on the light scatter principle, it uses advanced optical sensing technology that is significantly different from earlier designs. This ensures a fast and accurate response to smoke while greatly reducing false alarms.
With its supplied relay base, the Orbis ORB-OP-02032-APO offers flexible integration into fire alarm systems, straightforward installation, and dependable performance across a wide range of building types.
Apollo ORB-OP-02032-APO Orbis (Non-Latching) Optical Smoke Detector w/ Relay Base | ||
Supplied with a relay base for easy system integration | Conventional non-latching optical smoke detector | Advanced light scatter technology for reliable smoke detection |
Chevron-type sensing chamber for improved smoke entry | Reduced false alarms compared to older optical detectors | Designed for detecting slow-burning, smouldering fires |
Alarm LED indicator provides a clear visual status | Durable, lightweight polycarbonate housing | |
Apollo ORB-OP-02032-APO Orbis (Non Latching) Optical Smoke Detector w/ Relay Base | |||
Applications | Dusty environments | Polarity | L1 & L2 are polarity sensitive |
Fire Type | Slow-burning, smouldering fires | Sampling Frequency | Once every 4 seconds |
Colour | White | Minimum Detector Active Voltage | 6 V |
Sensor Configuration | Chamber with surface-mount infrared emitter and prism; solid-state integrated photo-diode and amplifier | Holding Voltage | 5–33 V |
Weight | 75 g | Minimum Voltage to Light Alarm LED | 5 V |
Housing Material | Polycarbonate | Alarm Reset Time | 1 second |
Product Length | 31 mm / 1.22 in | Alarm Load | 600 Ω |
Product Diameter | 97 mm / 3.82 in | Humidity | 0%–98% RH (no condensation or icing) |
Detection Principle | Photo-electric light scattering | Operating Temperature | -40°C to +70°C / -40°F to +158°F |
Chamber Type | Chevron | Storage Temperature | -40°C to +70°C |
Maximum Power-up Time | < 20 seconds | IP Rating | IP23D |
Quiescent Current | 95 μA (tested at 24V DC) | ||
The Apollo ORB-OP-02032-APO Orbis Conventional Optical Smoke Detector with Relay Base is a non-latching detector designed for reliable smoke detection in commercial and industrial environments.
Operating on the light scatter principle, it uses advanced optical sensing technology that is significantly different from earlier designs. This ensures a fast and accurate response to smoke while greatly reducing false alarms.
With its supplied relay base, the Orbis ORB-OP-02032-APO offers flexible integration into fire alarm systems, straightforward installation, and dependable performance across a wide range of building types.
Apollo ORB-OP-02032-APO Orbis (Non-Latching) Optical Smoke Detector w/ Relay Base | ||
Supplied with a relay base for easy system integration | Conventional non-latching optical smoke detector | Advanced light scatter technology for reliable smoke detection |
Chevron-type sensing chamber for improved smoke entry | Reduced false alarms compared to older optical detectors | Designed for detecting slow-burning, smouldering fires |
Alarm LED indicator provides a clear visual status | Durable, lightweight polycarbonate housing | |
Apollo ORB-OP-02032-APO Orbis (Non Latching) Optical Smoke Detector w/ Relay Base | |||
Applications | Dusty environments | Polarity | L1 & L2 are polarity sensitive |
Fire Type | Slow-burning, smouldering fires | Sampling Frequency | Once every 4 seconds |
Colour | White | Minimum Detector Active Voltage | 6 V |
Sensor Configuration | Chamber with surface-mount infrared emitter and prism; solid-state integrated photo-diode and amplifier | Holding Voltage | 5–33 V |
Weight | 75 g | Minimum Voltage to Light Alarm LED | 5 V |
Housing Material | Polycarbonate | Alarm Reset Time | 1 second |
Product Length | 31 mm / 1.22 in | Alarm Load | 600 Ω |
Product Diameter | 97 mm / 3.82 in | Humidity | 0%–98% RH (no condensation or icing) |
Detection Principle | Photo-electric light scattering | Operating Temperature | -40°C to +70°C / -40°F to +158°F |
Chamber Type | Chevron | Storage Temperature | -40°C to +70°C |
Maximum Power-up Time | < 20 seconds | IP Rating | IP23D |
Quiescent Current | 95 μA (tested at 24V DC) | ||
