Code: CTEC001/018

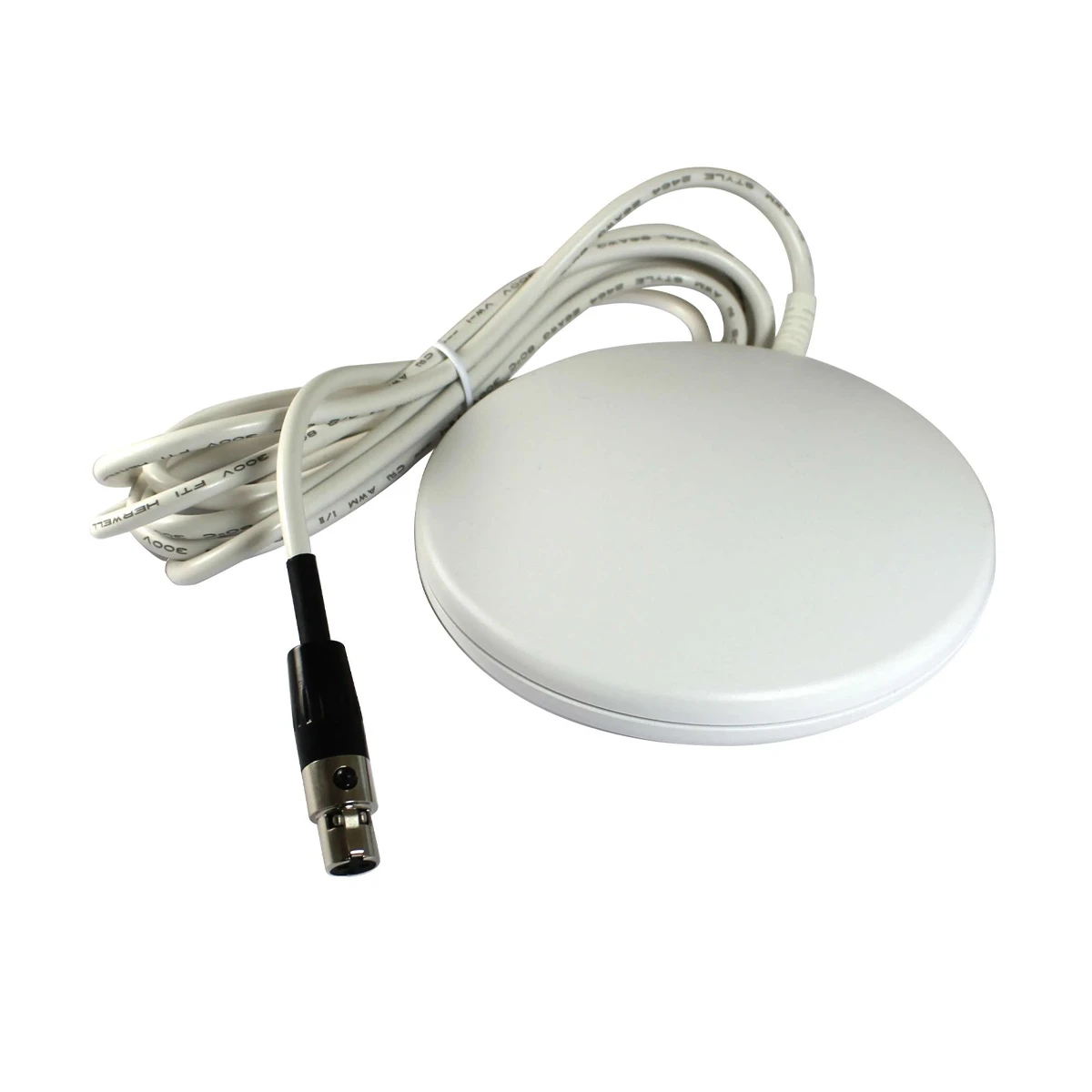

A discreet vibrating pillow pad. Typically used to provide early warning of a potential fire alarm condition to the hard of hearing. The pad is not designed for continuous use and should not be left running for prolonged periods without being reset.
Supersedes the old BF363 pillow pad.

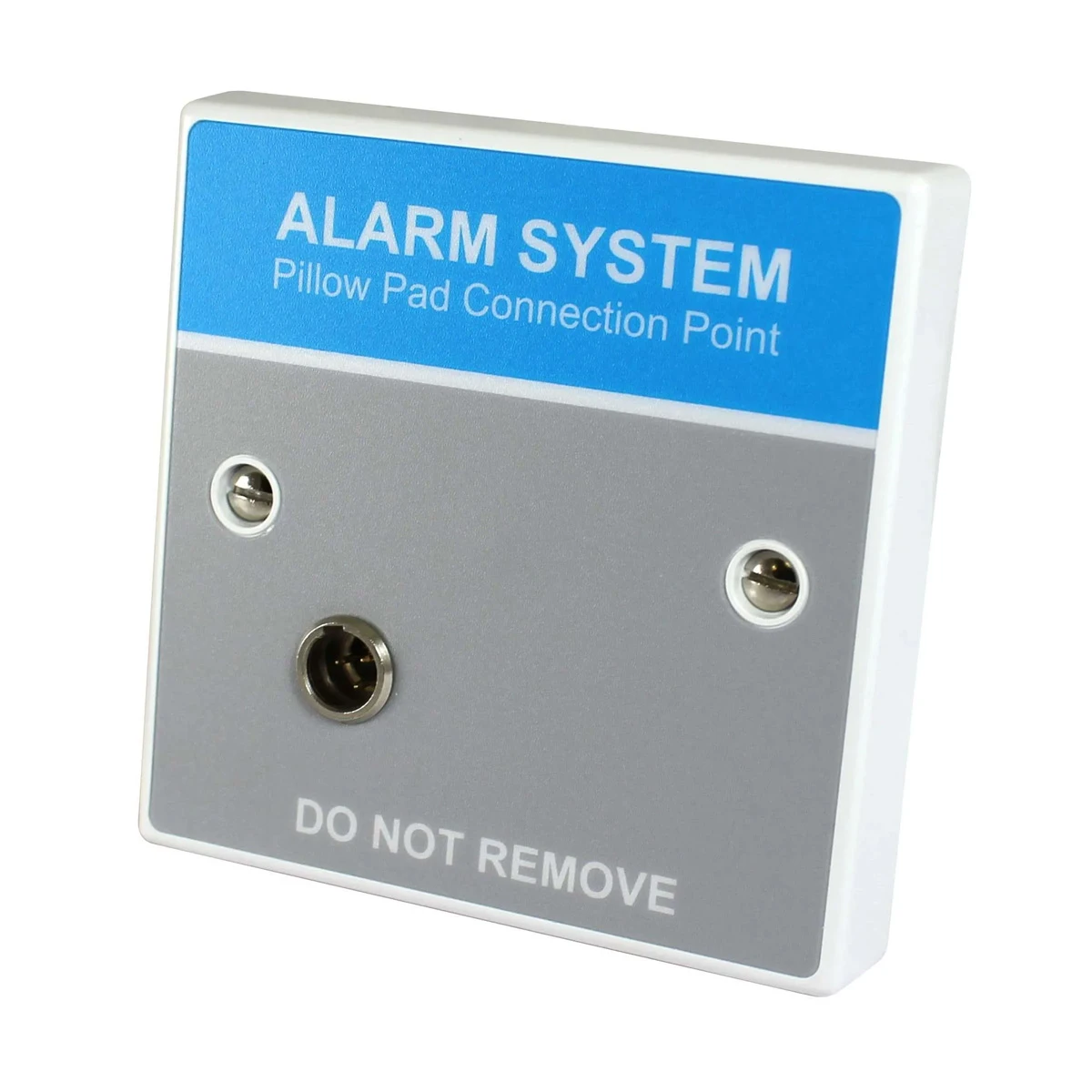

Can be used in conjunction with a BF320JP connection plate to warn the hearing impaired of a potential fire alarm or evacuation alert condition.
Vibrates and pulses on and off when triggered as per the requirements of BS 5446-3 (2015).
Designed to be placed under a pillow to supplement the audible and/or visual indication alerts provided by a system’s sounders and/or VADs.
Wide 10-30V DC voltage range means it can also be connected to many third-party connector plates (subject to testing).
Includes a 2m connection lead with a locking mini-XLR connector to prevent accidental removal.
Includes a 6K8 end-of-line monitoring resistor for fire alarm system use – see instructions for monitoring options on other systems.
Product Code | CTEC001/018 |
Weight | 162g |
Product dimensions (mm) | 100mm diameter x D 34mm; Connection lead measures 2m. |
Operating conditions/temperature | -10ºC to +60ºC |
Approvals/certifications | Complies with the requirements of BS 5446-3 |
A discreet vibrating pillow pad. Typically used to provide early warning of a potential fire alarm condition to the hard of hearing. The pad is not designed for continuous use and should not be left running for prolonged periods without being reset.
Supersedes the old BF363 pillow pad.
Can be used in conjunction with a BF320JP connection plate to warn the hearing impaired of a potential fire alarm or evacuation alert condition.
Vibrates and pulses on and off when triggered as per the requirements of BS 5446-3 (2015).
Designed to be placed under a pillow to supplement the audible and/or visual indication alerts provided by a system’s sounders and/or VADs.
Wide 10-30V DC voltage range means it can also be connected to many third-party connector plates (subject to testing).
Includes a 2m connection lead with a locking mini-XLR connector to prevent accidental removal.
Includes a 6K8 end-of-line monitoring resistor for fire alarm system use – see instructions for monitoring options on other systems.
Product Code | CTEC001/018 |
Weight | 162g |
Product dimensions (mm) | 100mm diameter x D 34mm; Connection lead measures 2m. |
Operating conditions/temperature | -10ºC to +60ºC |
Approvals/certifications | Complies with the requirements of BS 5446-3 |
