Code: CTEC001/004

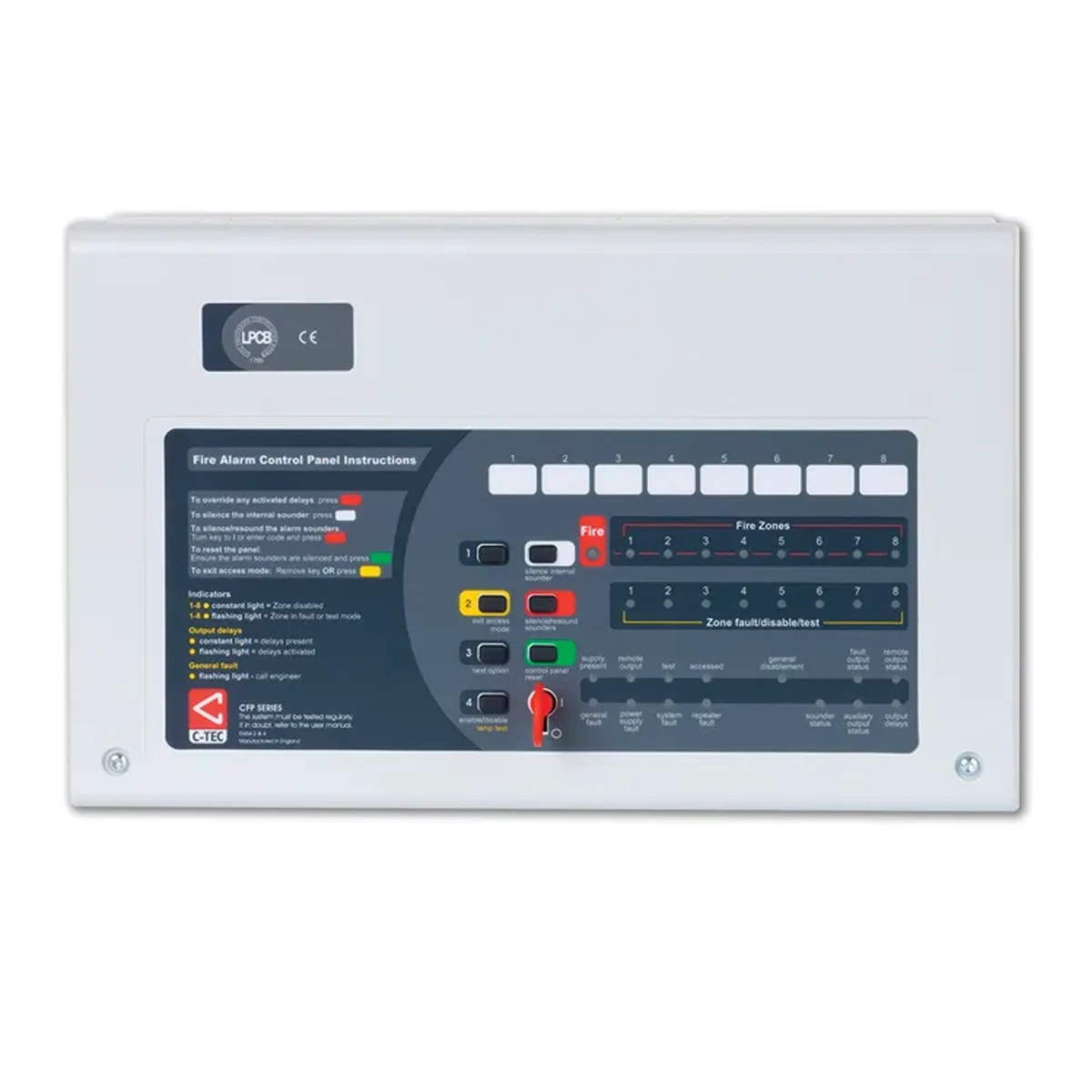

C-Tec (CFP760) Conventional Repeater Panel is used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote locations on site.
Can be used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote parts of site (e.g. all potential fire service entrances).
Up to 8 repeaters per CFP master.
Includes its own Mains power supply that requires its own standby battery supply.
Provides the user with access to all AL1 and AL2 functions.
Master/Repeater communication achieved using CFP761 network driver cards (one CFP761 is supplied with the Repeater, an additional CF761 card is required at the master CFP).
Communicates over screened two-wire fire resistant cable.
Total repeater network cable length should not exceed 1KM.
Attractive flush or surface mountable plastic lid and enclosure – no bezel required.
Compatibility | Compatible with C-TEC's CFP Standard and CFP AlarmSense panels. (Legacy CFP Economy panels cannot be extended with this product). |
Mains supply | 230V 50/60Hz. |
Internal power supply | 19V-28.5V (27V nominal). |
Max battery size and type | 2 x 12V 2.1Ah VRLA connected in series for 72 hour standby. 2 x 12V 1.2Ah for 24 hours. |
Max. network cable length | 1KM. |
Product dimensions (mm) | 380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required). |
Construction & finish | Plastic lid and base; RAL7035 textured |
IP Rating | IP30. |
Weight | 1.75kg (without batteries) |
Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
C-Tec (CFP760) Conventional Repeater Panel is used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote locations on site.
Can be used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote parts of site (e.g. all potential fire service entrances).
Up to 8 repeaters per CFP master.
Includes its own Mains power supply that requires its own standby battery supply.
Provides the user with access to all AL1 and AL2 functions.
Master/Repeater communication achieved using CFP761 network driver cards (one CFP761 is supplied with the Repeater, an additional CF761 card is required at the master CFP).
Communicates over screened two-wire fire resistant cable.
Total repeater network cable length should not exceed 1KM.
Attractive flush or surface mountable plastic lid and enclosure – no bezel required.
Compatibility | Compatible with C-TEC's CFP Standard and CFP AlarmSense panels. (Legacy CFP Economy panels cannot be extended with this product). |
Mains supply | 230V 50/60Hz. |
Internal power supply | 19V-28.5V (27V nominal). |
Max battery size and type | 2 x 12V 2.1Ah VRLA connected in series for 72 hour standby. 2 x 12V 1.2Ah for 24 hours. |
Max. network cable length | 1KM. |
Product dimensions (mm) | 380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required). |
Construction & finish | Plastic lid and base; RAL7035 textured |
IP Rating | IP30. |
Weight | 1.75kg (without batteries) |
Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
