The C-TEC EP215 Extinguishant Hold/Abort Button is a surface or flush mounting hold or abort button designed to connect to an EP203 automatic extinguisher panel to provide a means of delaying or cancelling the extinguishant release sequence.

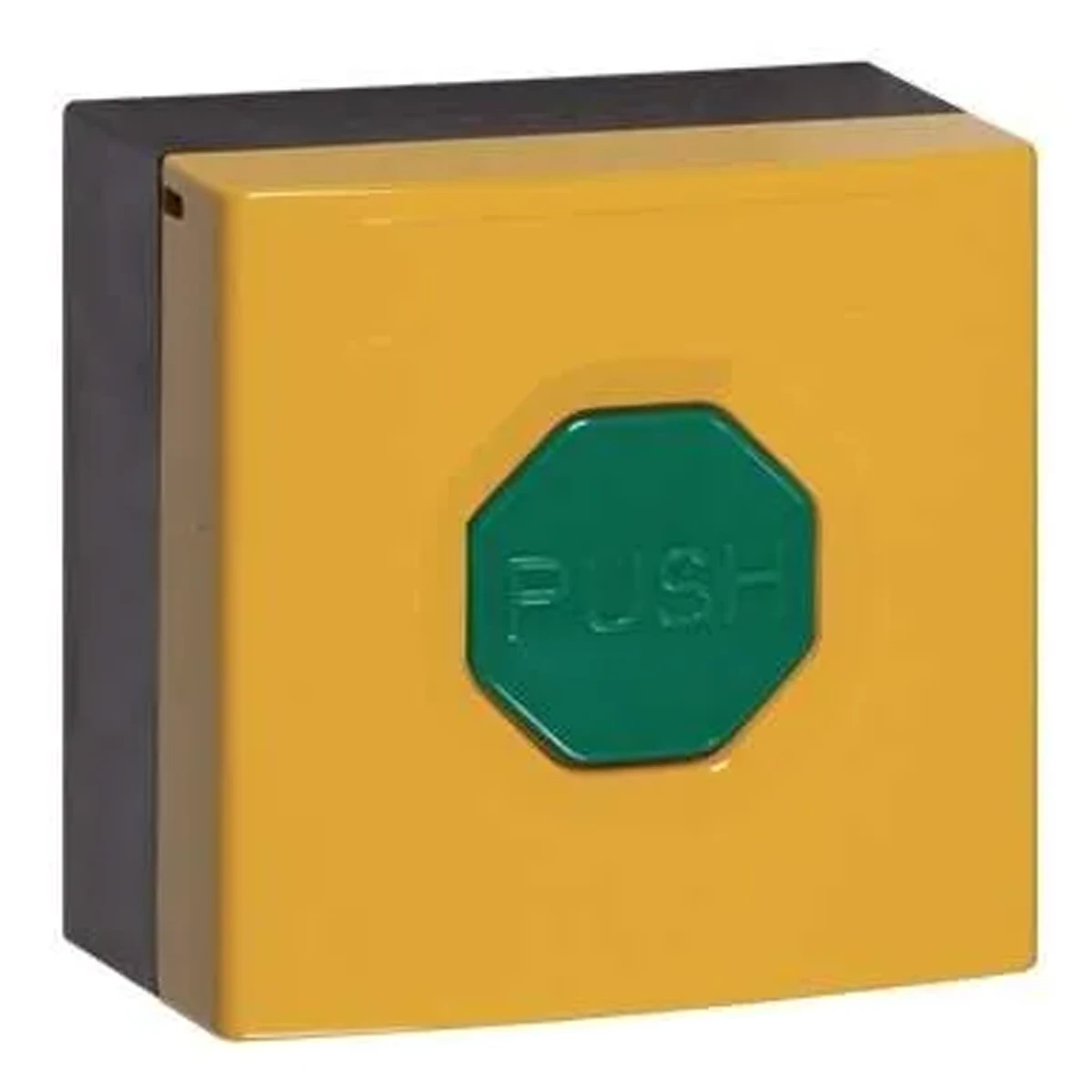

It comprises of a 35mm black box, yellow lid and green push button.
A surface or flush mounting hold or abort button designed to connect to an EP203 automatic extinguisher panel to provide a means of delaying or cancelling the extinguishant release sequence.
Comprises a 35mm black back box, yellow lid and green push button.
Supplied with two branding label options (‘Extinguishant Hold Off’ and ‘Extinguishant Abort’).
Actual operation depends on wiring configuration (if hold and abort functions are required, at least two EP215 buttons will be needed).
IP24 rated (indoor use only).
Quiescent current | 0mA (none). |
---|---|
Alarm current | Determined by the type of control equipment and number / type of field devices connected to the system. |
Indicators | n/a. |
Controls | Green button. |
Product dimensions (mm) | 87 H x 87 W x 58 D mm. Surface or flush mounting. |
Construction & finish | Polycarbonate. Green push button, yellow call point housing, black back box. |
IP Rating | IP24. |
Weight | TBC. |
Operating conditions/temperature | -0ºC to +65ºC. Max. relative humidity 95% non-condensing. |
The C-TEC EP215 Extinguishant Hold/Abort Button is a surface or flush mounting hold or abort button designed to connect to an EP203 automatic extinguisher panel to provide a means of delaying or cancelling the extinguishant release sequence.
It comprises of a 35mm black box, yellow lid and green push button.
A surface or flush mounting hold or abort button designed to connect to an EP203 automatic extinguisher panel to provide a means of delaying or cancelling the extinguishant release sequence.
Comprises a 35mm black back box, yellow lid and green push button.
Supplied with two branding label options (‘Extinguishant Hold Off’ and ‘Extinguishant Abort’).
Actual operation depends on wiring configuration (if hold and abort functions are required, at least two EP215 buttons will be needed).
IP24 rated (indoor use only).
Quiescent current | 0mA (none). |
---|---|
Alarm current | Determined by the type of control equipment and number / type of field devices connected to the system. |
Indicators | n/a. |
Controls | Green button. |
Product dimensions (mm) | 87 H x 87 W x 58 D mm. Surface or flush mounting. |
Construction & finish | Polycarbonate. Green push button, yellow call point housing, black back box. |
IP Rating | IP24. |
Weight | TBC. |
Operating conditions/temperature | -0ºC to +65ºC. Max. relative humidity 95% non-condensing. |
