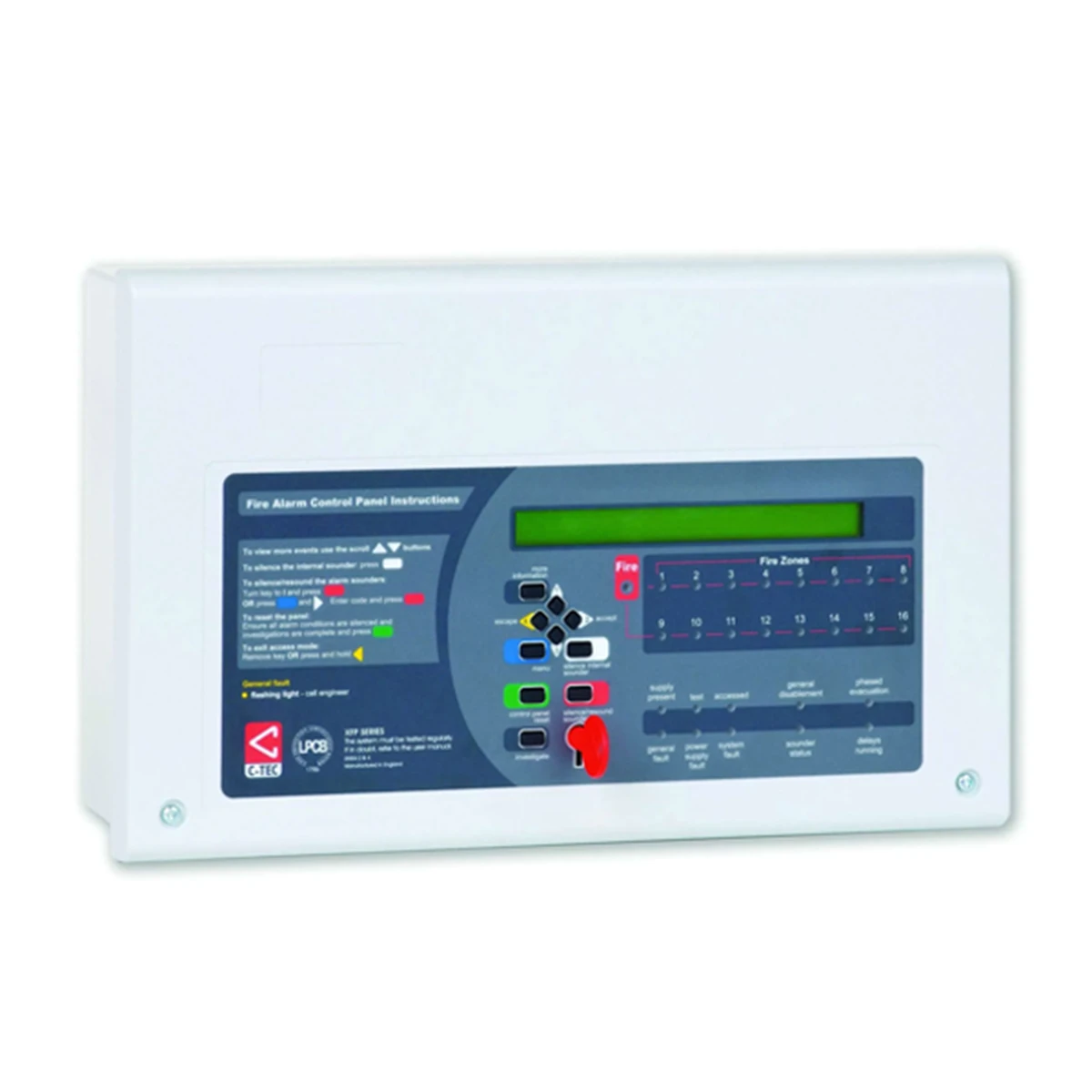

C-TEC XFP50 Addressable Fire Panel - Hochiki ESP Protocol
We Recommend
Bestseller
from
INC VAT
Code: CTECA001/004
Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, the XFP501E/H is also fully compatible with C-TEC’s Hush Button fire alarm solution.
Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).
Compatibility with Hochiki’s ESP protocol.
Two independently programmable conventional sounder circuits.
Two programmable inputs.
A fault output relay and three programmable relay outputs with voltage free changeover contacts.
A selection of zone dependency/coincidence functions.
A day/night (building occupied/unoccupied) function.
An investigation delay period function.
Phased evacuation facility.
An alarm counter that records how many times the panel has been in alarm state.
Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop.
An integral EN54-4/A2 switch mode power supply.
Adjustable contamination levels.
Earth fault monitoring.
Combined keypad / keyswitch entry to Access Levels 2 and 3.
999 event monitoring.
An intuitive Windows based upload-download PC program.
Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 non-redundant network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel.
Approvals/certifications | Certified to EN54-2 & 4 by the LPCB. |
Protocol/compatibility | Hochiki ESP. |
Mains supply | 230V 50/60Hz. |
Mains rated current | 350mA maximum. |
Internal power supply | 27Vdc nominal. |
Total output current limited to | 1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA). |
Quiescent current | 50mA (loop unloaded). |
Max battery size and type | 2 x 12V 3.2Ah VRLA connected in series. |
No. of loop drivers | 1. |
Max. loop output current | 500mA (25V min; 34V max). |
Max. loop length | 1KM. |
Max. addressable devices per loop | 126. |
No. of conventional sounder circuits | 2 (Max. length per circuit is 500m). |
EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold). |
Max. sounder output current | 400mA. |
Auxiliary relays | 3 x Programmable Relays (programmable from C&Es). 1 x Fault Relay (active when no faults are present). Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. |
Other outputs | 24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA. |
Auxiliary inputs | 2 x Programmable Inputs (programmable from C&Es). Connect to 0V to trigger, Max. input voltage 27V (non-latching). |
PC connection | PC connection via RS232 molex connector (supplied in XFP507 upload/download software kit); No printer connection available. |
Indicators | 2 line x 40 character backlit display; 16 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; Syst |
Connections | Fixed, largest acceptable conductor size 1mm2. |
Expansion connections | 2-wire RS485 non-redundant network/repeater connection available via optional XFP761 network card. Max. 8 mains per network or 8 repeaters per non-networked main. Limit 1KM (main panel network) or |
Product dimensions (mm) | 380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required). |
Construction & finish | Plastic lid and base; RAL7035 textured |
IP Rating | IP30. |
Weight | 1.8kg (without batteries). |
Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, the XFP501E/H is also fully compatible with C-TEC’s Hush Button fire alarm solution.
Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).
Compatibility with Hochiki’s ESP protocol.
Two independently programmable conventional sounder circuits.
Two programmable inputs.
A fault output relay and three programmable relay outputs with voltage free changeover contacts.
A selection of zone dependency/coincidence functions.
A day/night (building occupied/unoccupied) function.
An investigation delay period function.
Phased evacuation facility.
An alarm counter that records how many times the panel has been in alarm state.
Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop.
An integral EN54-4/A2 switch mode power supply.
Adjustable contamination levels.
Earth fault monitoring.
Combined keypad / keyswitch entry to Access Levels 2 and 3.
999 event monitoring.
An intuitive Windows based upload-download PC program.
Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 non-redundant network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel.
Approvals/certifications | Certified to EN54-2 & 4 by the LPCB. |
Protocol/compatibility | Hochiki ESP. |
Mains supply | 230V 50/60Hz. |
Mains rated current | 350mA maximum. |
Internal power supply | 27Vdc nominal. |
Total output current limited to | 1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA). |
Quiescent current | 50mA (loop unloaded). |
Max battery size and type | 2 x 12V 3.2Ah VRLA connected in series. |
No. of loop drivers | 1. |
Max. loop output current | 500mA (25V min; 34V max). |
Max. loop length | 1KM. |
Max. addressable devices per loop | 126. |
No. of conventional sounder circuits | 2 (Max. length per circuit is 500m). |
EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold). |
Max. sounder output current | 400mA. |
Auxiliary relays | 3 x Programmable Relays (programmable from C&Es). 1 x Fault Relay (active when no faults are present). Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. |
Other outputs | 24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA. |
Auxiliary inputs | 2 x Programmable Inputs (programmable from C&Es). Connect to 0V to trigger, Max. input voltage 27V (non-latching). |
PC connection | PC connection via RS232 molex connector (supplied in XFP507 upload/download software kit); No printer connection available. |
Indicators | 2 line x 40 character backlit display; 16 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; Syst |
Connections | Fixed, largest acceptable conductor size 1mm2. |
Expansion connections | 2-wire RS485 non-redundant network/repeater connection available via optional XFP761 network card. Max. 8 mains per network or 8 repeaters per non-networked main. Limit 1KM (main panel network) or |
Product dimensions (mm) | 380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required). |
Construction & finish | Plastic lid and base; RAL7035 textured |
IP Rating | IP30. |
Weight | 1.8kg (without batteries). |
Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
