Code: CTECA001/007

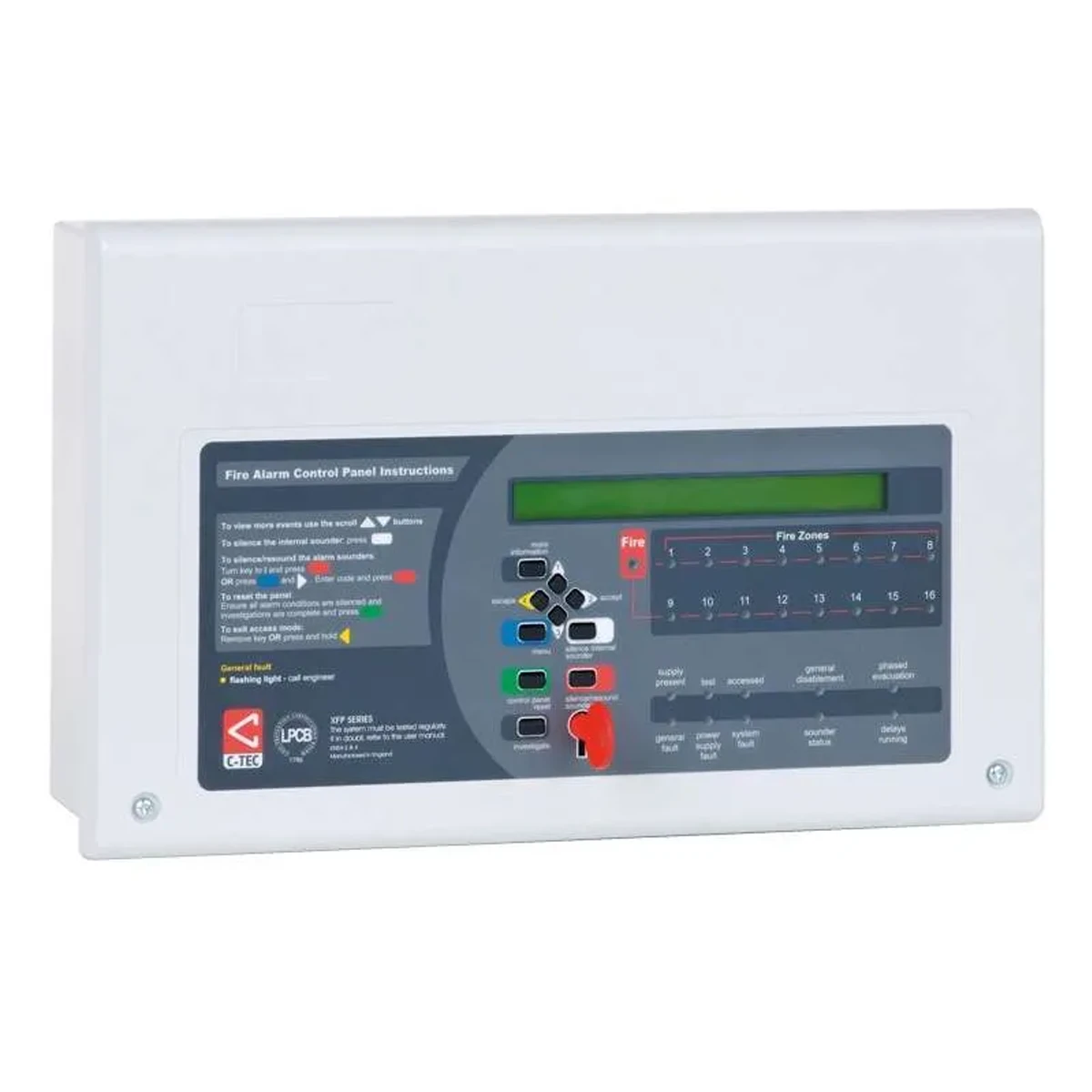

The C-Tec XFP510-16 Network repeater panel is simple to configure using the free software and connects with upto 8 other panels or repeaters, enabling full system control and indication from a remote location within the building.
Can be used to repeat the functions of an XFP Main panel at remote parts of a site (e.g. all potential fire service entrances).
Offers all of the functions and controls of an XFP Main panel (access levels 1, 2 and 3).
Includes an on-board fault relay.
Requires its own dedicated Mains power and battery back-up supply.
A maximum of eight XFP Repeaters can be connected to one non-networked XFP Main panel.
Communication between the XFP Main panel and Repeater requires a CFP761 network driver card (fitted as standard in all XFP510-16s, available as an optional extra on Main XFP 16 Zone panels).
Repeater network wired in 1.5 mm2 two-core screened fire resistant cable. Network length must not exceed 500 metres.
Protocol/compatibility | Compatible with C-TEC's XFP CAST, Apollo XP95/Discovery and Hochiki ESP main panels. |
---|---|
Mains supply | 230V 50/60Hz. |
Mains rated current | 350mA maximum. |
Internal power supply | 27Vdc nominal. |
Total output current limited to | 1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA). |
Quiescent current | TBC. |
Max battery size and type | 2 x 12V 3.2Ah VRLA connected in series. |
Auxiliary relays | Fault (Failsafe; Capable of switching 1A @ 30V DC; Must not be used for switching Mains voltages). |
PC connection | None. |
Indicators | 2 line x 40 character backlit display; 16 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; Syst |
Expansion connections | On board CFP761 network driver card facilitates the connection of additional XFP Repeaters. |
Product dimensions (mm) | 380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required). |
Construction & finish | Plastic lid and base; RAL7035 textured |
IP Rating | IP30. |
Weight | 1.8kg (without batteries). |
Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
Network specification | Max. no. of Repeaters per Main XFP: 8 (any mix); Max. total length of Repeater network: 500m; Cabling requirements: 1.5mm2 two core screened fire resistant. |
