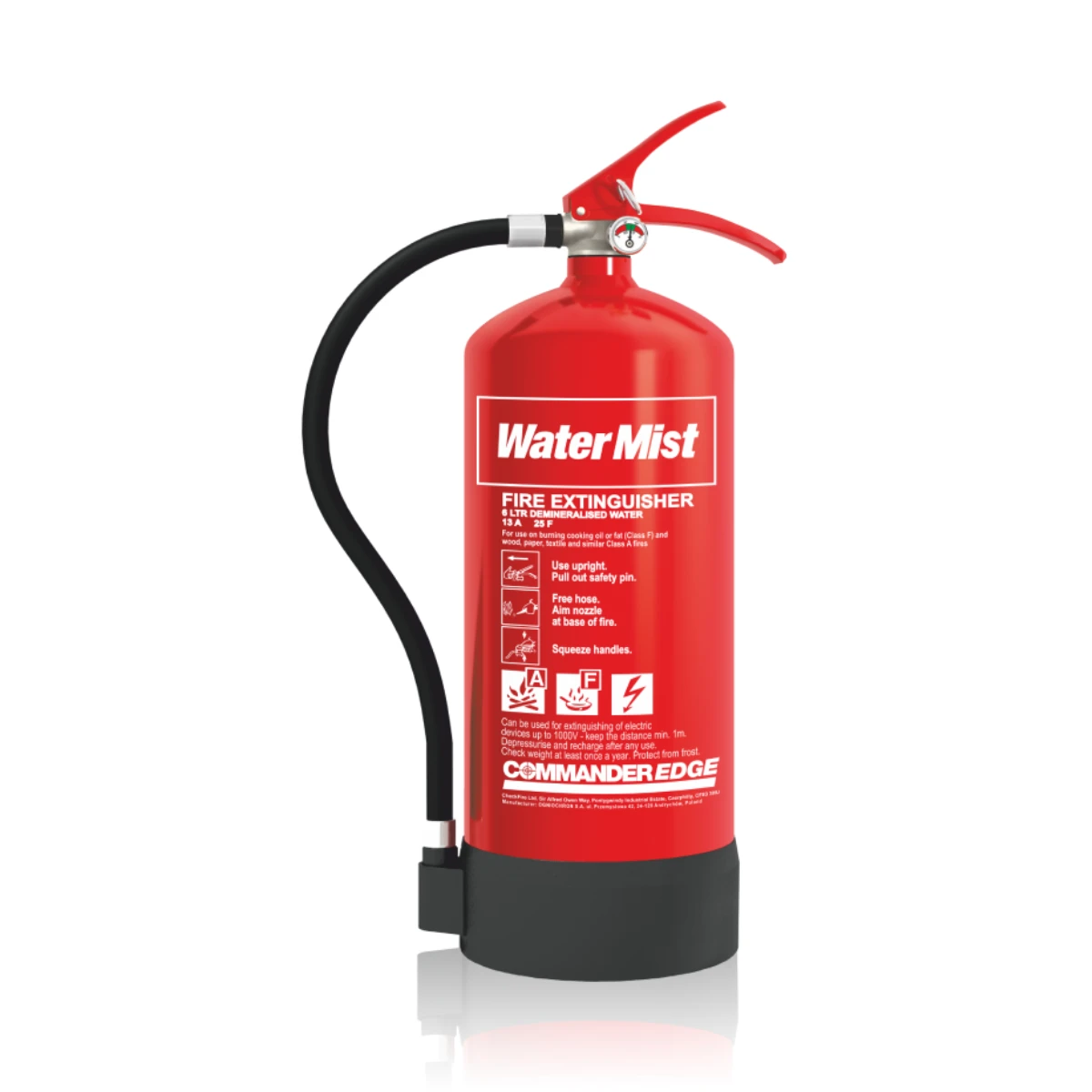

CommanderEDGE 6ltr Water Mist Fire Extinguisher
We Recommend
INC VAT
Code: CFCR001/023
The Commander Edge 6ltr Water Mist Fire Extinguisher is a versatile fire-fighting solution that’s suitable for use on Class A (combustible materials) and Class F (cooking oils and fats) fires, making them an ideal choice for a number of different settings. The unit also features Kitemark certification.
As well as being an environmentally friendly option, water mist fire extinguishers work by producing a mist curtain, which provides intense cooling to the fire, cutting off the supply of oxygen and suffocating the flames. As the droplets are so small, they leave almost no trace, making them a great solution for many applications including hospitals, commercial kitchens, museums and offices.
CE approved
Manufactured to BS EN3
Passed 35kv conductivity test
Polythene internal lining
Corrosion resistant finish
Full range of spare parts available
J bracket included
Super strong base skirt for protection
Squeeze grip operation
Built to last - ideal for harsh environments
Easy to service
5-year warranty on all models
Capacity | 6ltr (WS6EMIST) |
Fire rating | 13A 25F |
Extinguisher medium | Water |
Temperature range | +5°C - +60°C |
Pressuring gas | Nitrogen |
Cylinder material | Steel |
Working pressure | 15 bar |
Height | 501mm |
Diameter | 160mm |
Width including hose | 197mm |
Weight | 9.3kg |
A water mist fire extinguisher is a type of fire extinguisher that uses a fine mist of water to extinguish fires. This type of extinguisher operates by discharging a high-pressure mist of microscopic water droplets that cool down the flames and surrounding surfaces, removing the heat required to sustain the fire.
The fire extinguisher utilises specially engineered rotors to mix water and air at a pre-determined ratio, producing a fine mist of 40-60 micron molecules. Due to their small size, these droplets have a significantly larger surface area coverage than water alone, allowing them to spread further and cool more rapidly.
The mist is then ejected through a uniquely designed nozzle, which propels it over an extended distance. Upon reaching the flames, the mist transforms into steam, creating a blanket effect that surrounds and smothers the fire. The water in the mist cools the flames, reducing their temperature below the point of combustion and preventing them from reigniting.
As a result of this process, the oxygen supply to the fire is cut off, and the flames extinguish within seconds. The principle behind this is that without heat or oxygen, a fire cannot continue to burn.
Typically, a water mist fire extinguisher can be used to extinguish Class A, B, F and electrical fires, depending on the specific model and rating.
Class A fires involve combustible materials like wood, paper and textiles. Water mist extinguishers are highly effective in tackling Class A fires as the fine mist cools down the flames and surrounding surfaces, removing the heat needed to sustain the fire.
Class B fires involve flammable liquids such as gasoline, oil and solvents. Water mist extinguishers can also extinguish Class B fires by cooling the flames and suffocating them with the mist. However, it is essential to note that using water on some flammable liquids can spread the fire or cause it to splash, so it is crucial to check the extinguisher's suitability for the specific type of liquid involved.
Class F fires involve cooking oils and fats, typically found in commercial kitchens. Water mist extinguishers are highly effective in tackling these fires as they create a mist that quickly cools the flames and prevents re-ignition.
Electrical fires involve electrical equipment, and water mist extinguishers are suitable for these types of fires as the fine mist is non-conductive and safe to use around live electrical equipment. No electrocution!
Yes! Water mist is non-conductive. Please check the fire extinguisher labelling before use.
Water mist fire extinguishers are highly effective in extinguishing fires, and in some cases, they can be more effective than other types of fire extinguishers. However, the effectiveness of a water mist extinguisher depends on the specific type of fire it is designed to extinguish.
Compared to traditional water-based extinguishers, water mist extinguishers use a fine mist that reduces the amount of water needed to extinguish a fire, making them a more eco-friendly and cost-effective option. The use of a water mist fire extinguisher reduces the potential for collateral damage to sensitive equipment and electronics.
Compared to foam-based extinguishers, water mist fire extinguishers are effective in extinguishing Class A, B, F and electrical fires. While foam extinguishers are highly effective in smothering Class A and Class B flames. A foam fire extinguisher can cause significant damage to electronics.
Compared to powder-based extinguishers, water mist extinguishers are safer to use in enclosed spaces, as they do not create a cloud of powder that can obscure vision and potentially cause respiratory issues. However, powder extinguishers are highly effective in extinguishing flammable liquid fires and can cover a more extensive area than water mist extinguishers. ABC dry powder fire extinguishers will always be considered the most versatile.
The range of a water mist fire extinguisher can vary depending on several factors such as the type of nozzle, water pressure, and the size of the extinguisher. Typically, water mist fire extinguishers have a range of 6 to 12 feet (1.8 to 3.7 meters).
Water mist fire extinguishers are generally suitable for use in many types of buildings and environments, but there may be some situations where they are not the most appropriate choice.
Water mist fire extinguishers are typically used in areas where traditional fire extinguishers may not be effective, such as where there is a risk of electrical fires or where water damage may be a concern. They are also ideal for areas where people may be at risk from exposure to other types of fire extinguisher agents, such as in hospitals or care homes.
However, water mist fire extinguishers are not suitable for certain types of fires, such as flammable liquid fires or fires involving combustible metals. In these situations, it's essential to use a fire extinguisher specifically designed for those types of fires.
It's important to conduct a fire risk assessment for your building or environment to determine the types of fire hazards that may be present and the most appropriate types of fire extinguishers to have on hand. This assessment should be carried out by a qualified fire safety professional or fire risk assessor.
The Commander Edge 6ltr Water Mist Fire Extinguisher is a versatile fire-fighting solution that’s suitable for use on Class A (combustible materials) and Class F (cooking oils and fats) fires, making them an ideal choice for a number of different settings. The unit also features Kitemark certification.
As well as being an environmentally friendly option, water mist fire extinguishers work by producing a mist curtain, which provides intense cooling to the fire, cutting off the supply of oxygen and suffocating the flames. As the droplets are so small, they leave almost no trace, making them a great solution for many applications including hospitals, commercial kitchens, museums and offices.
CE approved
Manufactured to BS EN3
Passed 35kv conductivity test
Polythene internal lining
Corrosion resistant finish
Full range of spare parts available
J bracket included
Super strong base skirt for protection
Squeeze grip operation
Built to last - ideal for harsh environments
Easy to service
5-year warranty on all models
Capacity | 6ltr (WS6EMIST) |
Fire rating | 13A 25F |
Extinguisher medium | Water |
Temperature range | +5°C - +60°C |
Pressuring gas | Nitrogen |
Cylinder material | Steel |
Working pressure | 15 bar |
Height | 501mm |
Diameter | 160mm |
Width including hose | 197mm |
Weight | 9.3kg |
A water mist fire extinguisher is a type of fire extinguisher that uses a fine mist of water to extinguish fires. This type of extinguisher operates by discharging a high-pressure mist of microscopic water droplets that cool down the flames and surrounding surfaces, removing the heat required to sustain the fire.
The fire extinguisher utilises specially engineered rotors to mix water and air at a pre-determined ratio, producing a fine mist of 40-60 micron molecules. Due to their small size, these droplets have a significantly larger surface area coverage than water alone, allowing them to spread further and cool more rapidly.
The mist is then ejected through a uniquely designed nozzle, which propels it over an extended distance. Upon reaching the flames, the mist transforms into steam, creating a blanket effect that surrounds and smothers the fire. The water in the mist cools the flames, reducing their temperature below the point of combustion and preventing them from reigniting.
As a result of this process, the oxygen supply to the fire is cut off, and the flames extinguish within seconds. The principle behind this is that without heat or oxygen, a fire cannot continue to burn.
Typically, a water mist fire extinguisher can be used to extinguish Class A, B, F and electrical fires, depending on the specific model and rating.
Class A fires involve combustible materials like wood, paper and textiles. Water mist extinguishers are highly effective in tackling Class A fires as the fine mist cools down the flames and surrounding surfaces, removing the heat needed to sustain the fire.
Class B fires involve flammable liquids such as gasoline, oil and solvents. Water mist extinguishers can also extinguish Class B fires by cooling the flames and suffocating them with the mist. However, it is essential to note that using water on some flammable liquids can spread the fire or cause it to splash, so it is crucial to check the extinguisher's suitability for the specific type of liquid involved.
Class F fires involve cooking oils and fats, typically found in commercial kitchens. Water mist extinguishers are highly effective in tackling these fires as they create a mist that quickly cools the flames and prevents re-ignition.
Electrical fires involve electrical equipment, and water mist extinguishers are suitable for these types of fires as the fine mist is non-conductive and safe to use around live electrical equipment. No electrocution!
Yes! Water mist is non-conductive. Please check the fire extinguisher labelling before use.
Water mist fire extinguishers are highly effective in extinguishing fires, and in some cases, they can be more effective than other types of fire extinguishers. However, the effectiveness of a water mist extinguisher depends on the specific type of fire it is designed to extinguish.
Compared to traditional water-based extinguishers, water mist extinguishers use a fine mist that reduces the amount of water needed to extinguish a fire, making them a more eco-friendly and cost-effective option. The use of a water mist fire extinguisher reduces the potential for collateral damage to sensitive equipment and electronics.
Compared to foam-based extinguishers, water mist fire extinguishers are effective in extinguishing Class A, B, F and electrical fires. While foam extinguishers are highly effective in smothering Class A and Class B flames. A foam fire extinguisher can cause significant damage to electronics.
Compared to powder-based extinguishers, water mist extinguishers are safer to use in enclosed spaces, as they do not create a cloud of powder that can obscure vision and potentially cause respiratory issues. However, powder extinguishers are highly effective in extinguishing flammable liquid fires and can cover a more extensive area than water mist extinguishers. ABC dry powder fire extinguishers will always be considered the most versatile.
The range of a water mist fire extinguisher can vary depending on several factors such as the type of nozzle, water pressure, and the size of the extinguisher. Typically, water mist fire extinguishers have a range of 6 to 12 feet (1.8 to 3.7 meters).
Water mist fire extinguishers are generally suitable for use in many types of buildings and environments, but there may be some situations where they are not the most appropriate choice.
Water mist fire extinguishers are typically used in areas where traditional fire extinguishers may not be effective, such as where there is a risk of electrical fires or where water damage may be a concern. They are also ideal for areas where people may be at risk from exposure to other types of fire extinguisher agents, such as in hospitals or care homes.
However, water mist fire extinguishers are not suitable for certain types of fires, such as flammable liquid fires or fires involving combustible metals. In these situations, it's essential to use a fire extinguisher specifically designed for those types of fires.
It's important to conduct a fire risk assessment for your building or environment to determine the types of fire hazards that may be present and the most appropriate types of fire extinguishers to have on hand. This assessment should be carried out by a qualified fire safety professional or fire risk assessor.
