Code: FPS401/616
£1.80
INC VAT
Code: FPS401/616

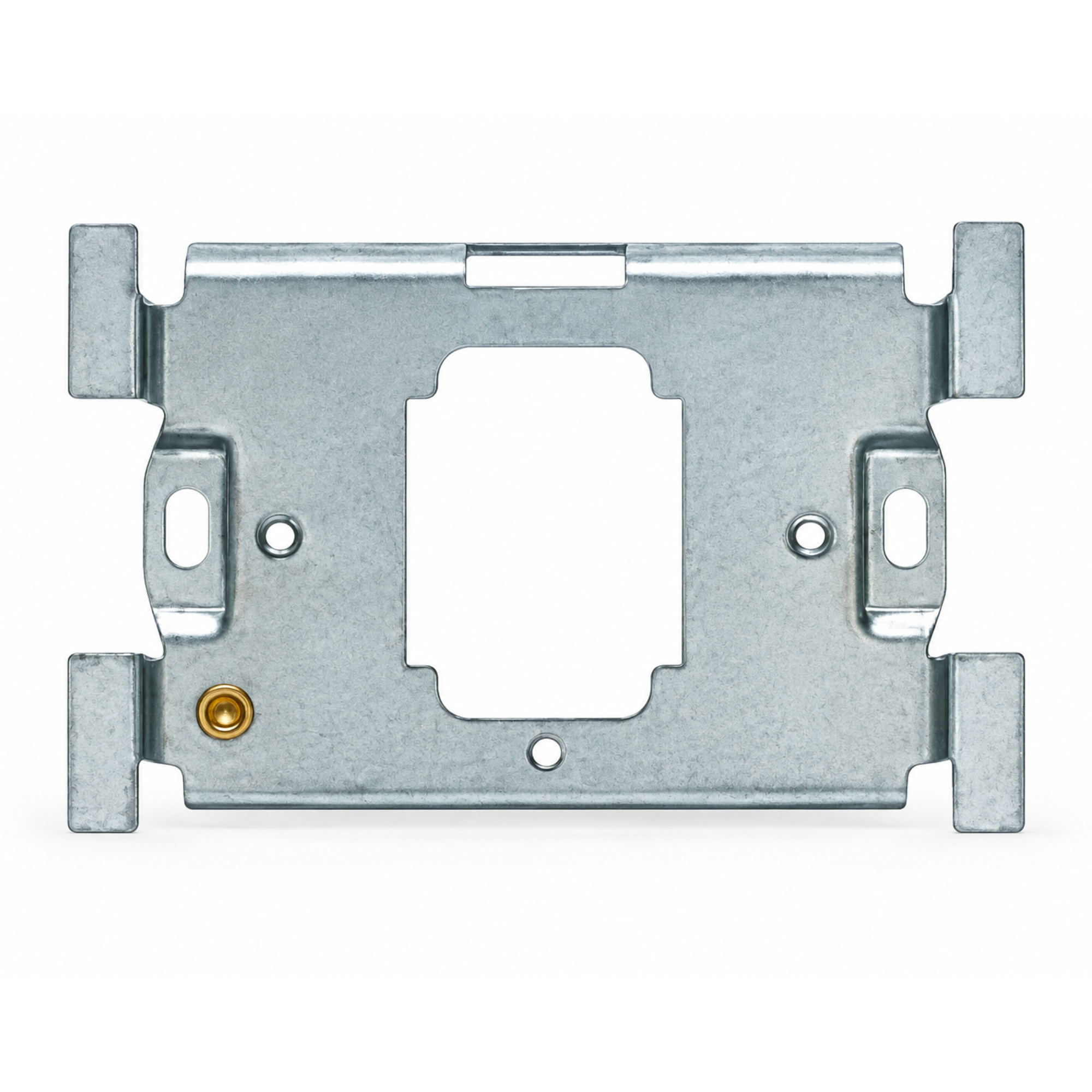

The Crabtree Switch Mounting Plate is a metal frame for a single grid module. The module inserts are rear fixed, with screw fixing used to secure the frame.
Suitable for both flush-mounted installations and floor boxes, the frame has a vertical mounting direction. It conforms to BS 5733 and carries both CE and UKCA conformity.
Crabtree Switch Mounting Plate | ||
1 gang grid frame | Screw-fixed grid modules | Rear-fixed module inserts |
Metal construction | Suitable for flush mounting | Suitable for floor boxes |
Vertical mounting direction | Single vertical module | BS 5733 standard |
CE conformity | UKCA conformity | |
Crabtree Switch Mounting Plate | |||
List Number | 6901 | Range | Rockergrid |
Product Type | 1 Gang Grid Frame | Product Standard | BS 5733 |
Terminal Capacity E | 3 x 2.5mm² | LRV Value | 21 |
CE Conformity | Yes | UKCA Conformity | Yes |
Model | Flush mounted (plaster) | Mounting Method | Screw mounting |
Module Insert Mounting | Back side | Mounting Direction | Vertical |
Vertical Modules | 1 | Material | Metal |
Flush-Mounted Installation | Suitable | Floor Box | Suitable |
The Crabtree Switch Mounting Plate is a metal frame for a single grid module. The module inserts are rear fixed, with screw fixing used to secure the frame.
Suitable for both flush-mounted installations and floor boxes, the frame has a vertical mounting direction. It conforms to BS 5733 and carries both CE and UKCA conformity.
Crabtree Switch Mounting Plate | ||
1 gang grid frame | Screw-fixed grid modules | Rear-fixed module inserts |
Metal construction | Suitable for flush mounting | Suitable for floor boxes |
Vertical mounting direction | Single vertical module | BS 5733 standard |
CE conformity | UKCA conformity | |
Crabtree Switch Mounting Plate | |||
List Number | 6901 | Range | Rockergrid |
Product Type | 1 Gang Grid Frame | Product Standard | BS 5733 |
Terminal Capacity E | 3 x 2.5mm² | LRV Value | 21 |
CE Conformity | Yes | UKCA Conformity | Yes |
Model | Flush mounted (plaster) | Mounting Method | Screw mounting |
Module Insert Mounting | Back side | Mounting Direction | Vertical |
Vertical Modules | 1 | Material | Metal |
Flush-Mounted Installation | Suitable | Floor Box | Suitable |
