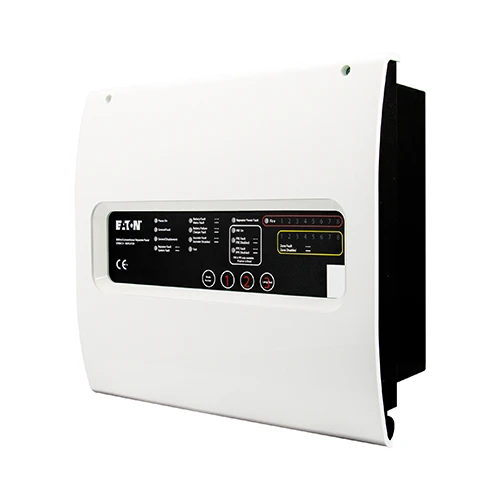

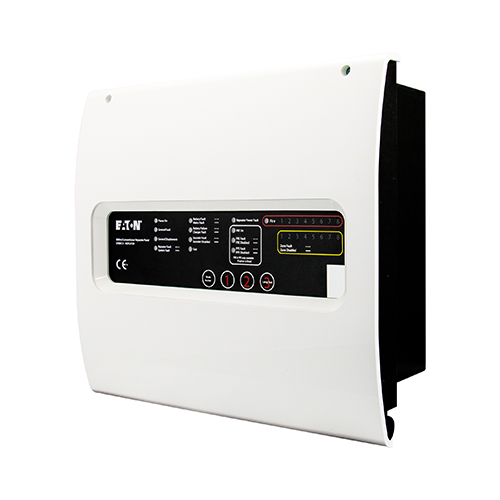

Eaton Flexi Bi-Wire & Conventional Repeater Panel
Code: FPS004/004
INC VAT
Code: FPS004/004
The Eaton EFBWCV Repeater Panel is a flexible extension for your fire alarm system. It works seamlessly with 2, 4, and 8-zone Bi-Wire and conventional panels. This also includes newer ranges such as Bi-Wire-Ultra, Bi-Wire-Flexi, and EFCVxZ.
It mirrors the main panel’s sound and light alerts for both fire and fault indications, and up to three repeater panels can be daisy-chained to a single control unit. This makes it a practical choice for larger buildings or sites that require alarm information to be accessible from several points.
It features its own built-in power supply, so installation is straightforward. Only a mains connection and a data cable are needed between the repeater and the main panel.
Its sleek, contemporary housing is designed to complement Eaton control panels, allowing it to fit well in a wide range of commercial or residential environments.
Eaton Flexi Bi-Wire & Conventional Repeater Panel | |
Compatible with Eaton 2, 4, and 8 zone bi-wire & conventional control panels | Uses the same modern enclosure as the control panels |
Supports up to 3 repeaters per main panel | Internal power supply included |
Specification | Value |
|---|---|
Reference | EFBWCV-REPEATER |
Description | Repeater panel |
Input Voltage Range | 18.75–30.7 V |
Maximum Current Drawn From Battery | 2.7 A |
Repeater Port Type | RS485 |
Nodes Supported | Up to 3 repeaters and 1 fire panel |
Operating Temperature | -5°C to +40°C |
Relative Humidity | 93% ±3%, non-condensing |
IP Rating | IP30 |
Weight (excluding batteries) | 2.25 kg |
Material | PC ABS Front and Rear |
Cable Access | 29 × 20 mm drill positions – slots for rear cable entry |
Cable Type | 2-core 1.5 mm² screened fire rated cable, 500 m max per zone |
Standards | BS5839-pt1 |
The Eaton EFBWCV Repeater Panel is a flexible extension for your fire alarm system. It works seamlessly with 2, 4, and 8-zone Bi-Wire and conventional panels. This also includes newer ranges such as Bi-Wire-Ultra, Bi-Wire-Flexi, and EFCVxZ.
It mirrors the main panel’s sound and light alerts for both fire and fault indications, and up to three repeater panels can be daisy-chained to a single control unit. This makes it a practical choice for larger buildings or sites that require alarm information to be accessible from several points.
It features its own built-in power supply, so installation is straightforward. Only a mains connection and a data cable are needed between the repeater and the main panel.
Its sleek, contemporary housing is designed to complement Eaton control panels, allowing it to fit well in a wide range of commercial or residential environments.
Eaton Flexi Bi-Wire & Conventional Repeater Panel | |
Compatible with Eaton 2, 4, and 8 zone bi-wire & conventional control panels | Uses the same modern enclosure as the control panels |
Supports up to 3 repeaters per main panel | Internal power supply included |
Specification | Value |
|---|---|
Reference | EFBWCV-REPEATER |
Description | Repeater panel |
Input Voltage Range | 18.75–30.7 V |
Maximum Current Drawn From Battery | 2.7 A |
Repeater Port Type | RS485 |
Nodes Supported | Up to 3 repeaters and 1 fire panel |
Operating Temperature | -5°C to +40°C |
Relative Humidity | 93% ±3%, non-condensing |
IP Rating | IP30 |
Weight (excluding batteries) | 2.25 kg |
Material | PC ABS Front and Rear |
Cable Access | 29 × 20 mm drill positions – slots for rear cable entry |
Cable Type | 2-core 1.5 mm² screened fire rated cable, 500 m max per zone |
Standards | BS5839-pt1 |
