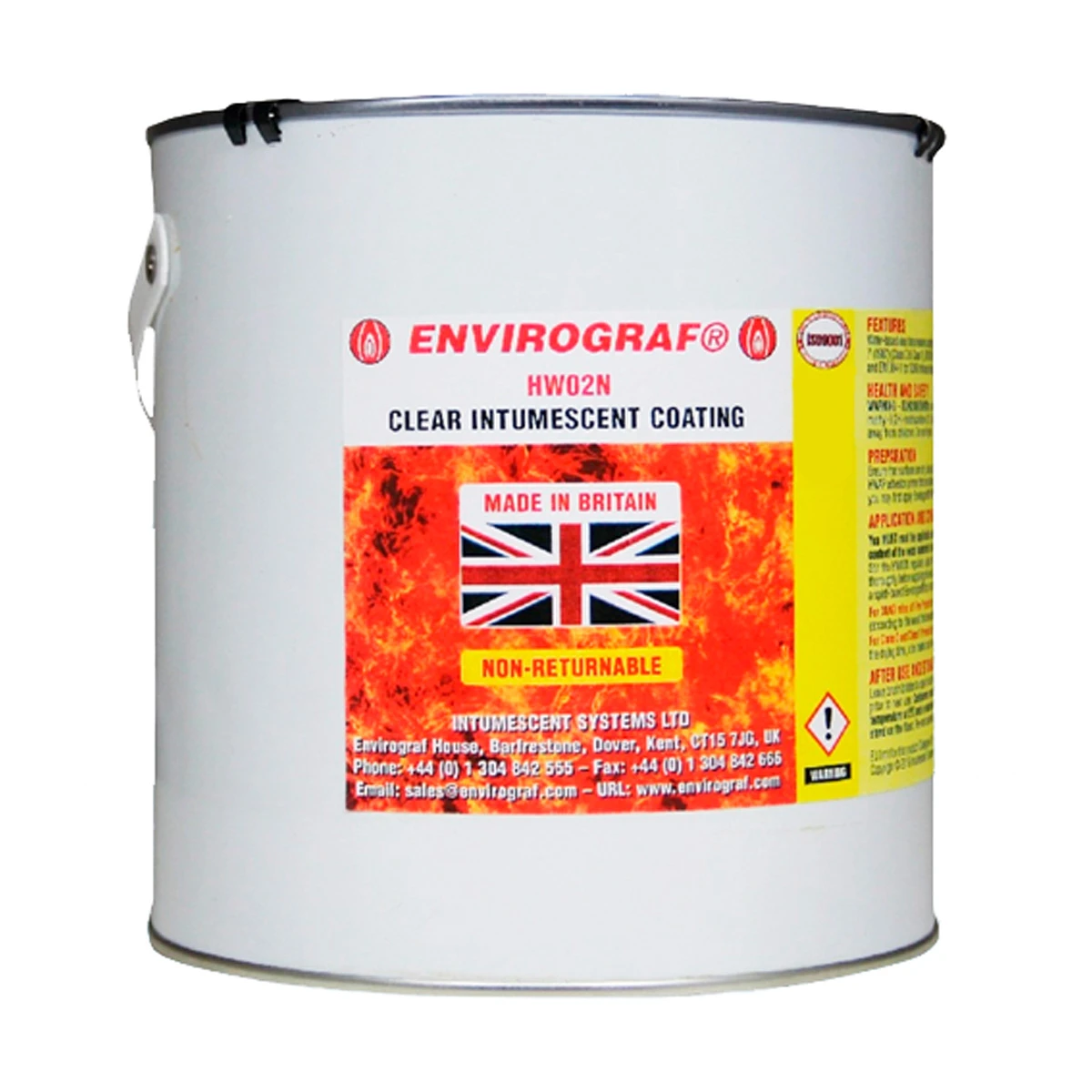

Intumescent Coating for Wood, Clear (Internal & External) HW02N
We Recommend
Bestseller
Bulk Buy Options
Code: FPPC001/049
from
£46.43
INC VAT
Code: FPPC001/049
Product 42 (HW range) is a fire-resistance coating. It’s the one used to upgrade existing doors to 30 or 60 minutes, and it also works on panelling, floors, joists and structural timber.
Product 92 (QVFR/C,QVFR/W ES/VFR) is only a spread-of-flame coating (Class 0/1, B-s1,d0). It stops flames racing across a surface. It’s meant for wall panelling, ceilings, cladding and furniture.
HW02N is a clear, water-based intumescent coating that upgrades timber to 30 or 60 minutes of fire protection, without hiding the natural look of the wood.
Key features
Fire protection: 30 or 60 minutes, depending on the timber.
Spread of flame: BS Class 0 and Class 1, and Euroclass B-s1,d0.
Clear finish: goes on cloudy and dries clear, so the grain stays visible.
Internal and external use.
Easy to apply: by brush, roller or spray.
Ideal for
Period features, hardwood doors and panelling.
Wood, timber cladding, MDF, insulation board and plasterboard.
Doors, flooring, furniture and other wood-derived products.
There’s no need to strip existing paint or varnish: apply the Envirograf® HWAP adhesion primer first and HW02N can go straight over the top. HWAP primer must always be used on cedar. HW02N can be applied by brush, roller or spray.
Proven fire performance
Doors: tested on new and old doors, some over 200 years old, achieving over 60 minutes integrity.
Panelling and cladding: upgraded to a 30 or 60-minute fire rating, depending on the type and thickness of the wood.
Floors: open joists and floorboards achieved 60 minutes of fire protection on a loaded floor.
Mouldings and carcasses: achieved a 90-minute fire rating.
Timber types: tested across a range of timbers, including MDF and plywood.
Coverage
Two coats at 8m² per litre per coat give 30 minutes on 9mm softwood and 60 minutes on 14mm softwood. Thinner timber needs three coats.
HW02N must be finished with a compatible Envirograf protective top coat: one coat for internal use and two for external use. The top coat must be applied the same day the second coat dries, and HW02N should never be left overnight without it. On black surfaces, use a black top coat. Once the top coat is dry, the surface can be waxed or French polished.
Once sealed, HW02N lasts the life of the surface. Only the top coat needs refreshing, every 8 to 12 years.
Not sure how much you need? Contact us on [email protected] and we can help you calculate what you need.
Please Note:
This product is both non-returnable and non-refundable.
If you require a certificate for the item you are fire-proofing, you will need to apply a primer and a top coat. A top coat alone will not be sufficient for a certificate to be issued.
Envirograf HW02N Clear Intumescent Coating | ||
With the use of Envirograf primer, coatings can be applied on painted or varnished surfaces with no need to strip them beforehand | Provides UV protection for external timber surfaces | Suitable for internal or external use |
Suitable for treated and untreated timber and wood related services | Available in tubs of 1 litre, 2.5 litres, 5 litres, 10 litres or 20 litres | |
Envirograf HW02N Clear Intumescent Coating | |||
Type | Water based fire protection product | Dry to Touch | 1-2 hours. Varies with temperature humidity ventilation and film thickness |
Colour | Clear when dry | Conditions During Application | Temperature of air and substrate must be above 5°C |
Specific Gravity | 1.14 | Moisture Content Before Use | 12% / 14% |
VOC | EU limit for this product (Category A/i): 140g/l (2010). This product contains 10g/l VOC | Shelf Life | 12 Months |
Recommended Spreading Rate | For 30-60 mins: apply 2 coats at 8m2 per litre per coat (according to the wood thickness/density/type) For Class 0 and Class 1: apply one coat at 10m2 per litre. | Storage Temperature | 5°C - 30°C |
Application Methods | Brush, roller or spray | Coverage | 4m² per litre |
Product 42 (HW range) is a fire-resistance coating. It’s the one used to upgrade existing doors to 30 or 60 minutes, and it also works on panelling, floors, joists and structural timber.
Product 92 (QVFR/C,QVFR/W ES/VFR) is only a spread-of-flame coating (Class 0/1, B-s1,d0). It stops flames racing across a surface. It’s meant for wall panelling, ceilings, cladding and furniture.
HW02N is a clear, water-based intumescent coating that upgrades timber to 30 or 60 minutes of fire protection, without hiding the natural look of the wood.
Key features
Fire protection: 30 or 60 minutes, depending on the timber.
Spread of flame: BS Class 0 and Class 1, and Euroclass B-s1,d0.
Clear finish: goes on cloudy and dries clear, so the grain stays visible.
Internal and external use.
Easy to apply: by brush, roller or spray.
Ideal for
Period features, hardwood doors and panelling.
Wood, timber cladding, MDF, insulation board and plasterboard.
Doors, flooring, furniture and other wood-derived products.
There’s no need to strip existing paint or varnish: apply the Envirograf® HWAP adhesion primer first and HW02N can go straight over the top. HWAP primer must always be used on cedar. HW02N can be applied by brush, roller or spray.
Proven fire performance
Doors: tested on new and old doors, some over 200 years old, achieving over 60 minutes integrity.
Panelling and cladding: upgraded to a 30 or 60-minute fire rating, depending on the type and thickness of the wood.
Floors: open joists and floorboards achieved 60 minutes of fire protection on a loaded floor.
Mouldings and carcasses: achieved a 90-minute fire rating.
Timber types: tested across a range of timbers, including MDF and plywood.
Coverage
Two coats at 8m² per litre per coat give 30 minutes on 9mm softwood and 60 minutes on 14mm softwood. Thinner timber needs three coats.
HW02N must be finished with a compatible Envirograf protective top coat: one coat for internal use and two for external use. The top coat must be applied the same day the second coat dries, and HW02N should never be left overnight without it. On black surfaces, use a black top coat. Once the top coat is dry, the surface can be waxed or French polished.
Once sealed, HW02N lasts the life of the surface. Only the top coat needs refreshing, every 8 to 12 years.
Not sure how much you need? Contact us on [email protected] and we can help you calculate what you need.
Please Note:
This product is both non-returnable and non-refundable.
If you require a certificate for the item you are fire-proofing, you will need to apply a primer and a top coat. A top coat alone will not be sufficient for a certificate to be issued.
Envirograf HW02N Clear Intumescent Coating | ||
With the use of Envirograf primer, coatings can be applied on painted or varnished surfaces with no need to strip them beforehand | Provides UV protection for external timber surfaces | Suitable for internal or external use |
Suitable for treated and untreated timber and wood related services | Available in tubs of 1 litre, 2.5 litres, 5 litres, 10 litres or 20 litres | |
Envirograf HW02N Clear Intumescent Coating | |||
Type | Water based fire protection product | Dry to Touch | 1-2 hours. Varies with temperature humidity ventilation and film thickness |
Colour | Clear when dry | Conditions During Application | Temperature of air and substrate must be above 5°C |
Specific Gravity | 1.14 | Moisture Content Before Use | 12% / 14% |
VOC | EU limit for this product (Category A/i): 140g/l (2010). This product contains 10g/l VOC | Shelf Life | 12 Months |
Recommended Spreading Rate | For 30-60 mins: apply 2 coats at 8m2 per litre per coat (according to the wood thickness/density/type) For Class 0 and Class 1: apply one coat at 10m2 per litre. | Storage Temperature | 5°C - 30°C |
Application Methods | Brush, roller or spray | Coverage | 4m² per litre |
