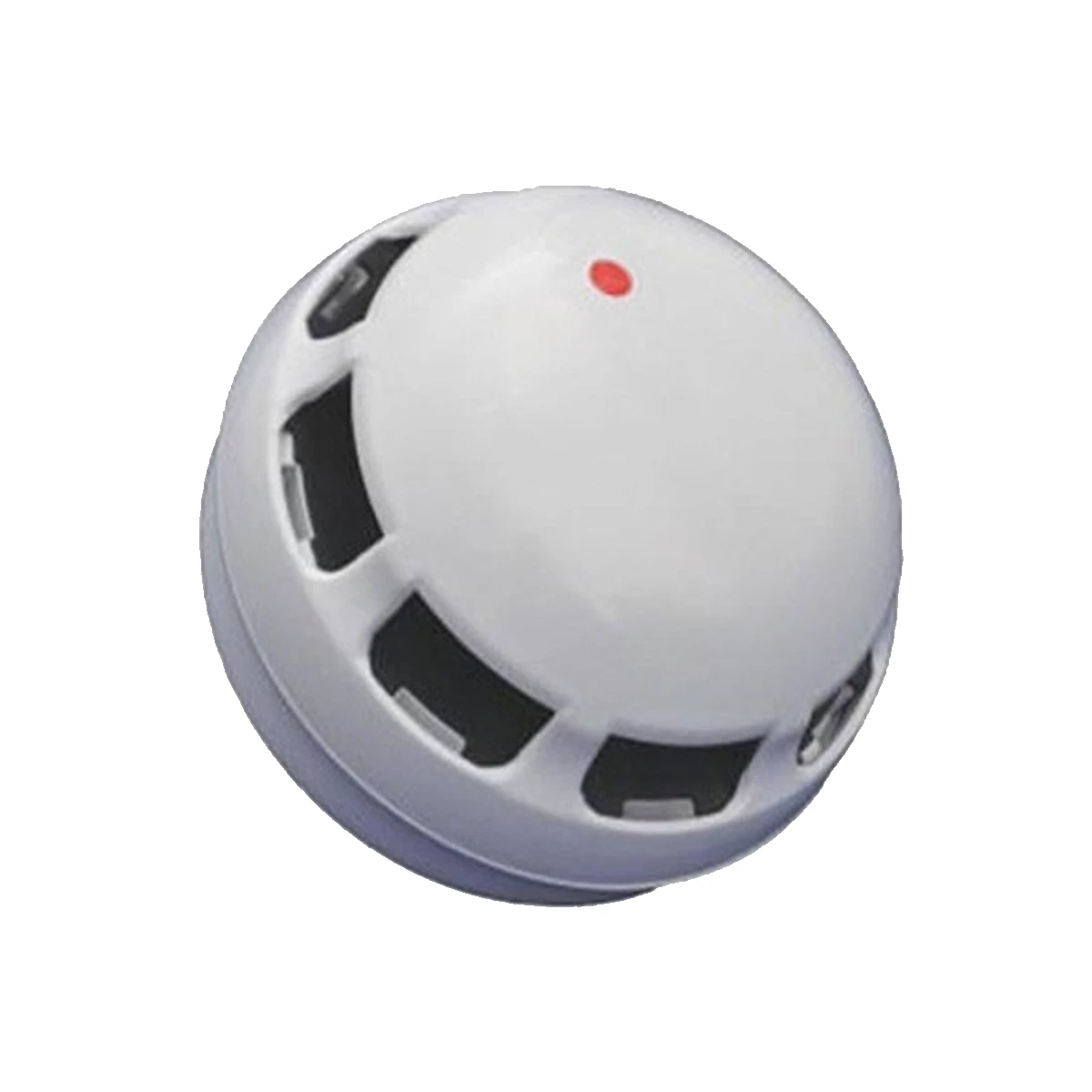

Fike 204-0003 Twinflex Multipoint ASD Detector & Base
INC VAT
Code: FIKEBI001/011
The Fike 204-0003 Twinflex Multipoint ASD Detector & Base has a photo-electric sensing chamber which measures smoke density. The detector also features a thermistor sensing circuit for accurate heat measurement. These combined enables the unit to be configured to a heat, smoke or combined setting. The detector is only compatible with the Twinflex control panels (and their alarm equipment and associated detection).
The detector has three smoke detector modes, three heat detection modes and one cmobination mode. The mode is easy to change with the use of the in-built DIL switches that are located inside the detector.
Photo-electric sensing chamber - measure smoke density
Thermistor sensing circuit - accurate heat measurement
Configurable to heat, smoke or combined setting
Only compatible with the Twinflex control panels
Three smoke detector modes
Three heat detector modes
One combination mode
In-built DIL switches
Operating voltage range: 18V to 32V DC
LED operation detector in normal state (smoke) - flashes at 20 second intervals
Detector in normal state (heat): double flash at 20 second intervals
Detector at EOL: flash at 5 second intervals
Detector in fault: flash at 1.3 second intervals
Detector detecting fire: flash at 0.7 second intervals
Detector in fire (once processed at panel): continuous
Element type: optical smoke / thermistor
IP rating: IP21
The Fike 204-0003 Twinflex Multipoint ASD Detector & Base has a photo-electric sensing chamber which measures smoke density. The detector also features a thermistor sensing circuit for accurate heat measurement. These combined enables the unit to be configured to a heat, smoke or combined setting. The detector is only compatible with the Twinflex control panels (and their alarm equipment and associated detection).
The detector has three smoke detector modes, three heat detection modes and one cmobination mode. The mode is easy to change with the use of the in-built DIL switches that are located inside the detector.
Photo-electric sensing chamber - measure smoke density
Thermistor sensing circuit - accurate heat measurement
Configurable to heat, smoke or combined setting
Only compatible with the Twinflex control panels
Three smoke detector modes
Three heat detector modes
One combination mode
In-built DIL switches
Operating voltage range: 18V to 32V DC
LED operation detector in normal state (smoke) - flashes at 20 second intervals
Detector in normal state (heat): double flash at 20 second intervals
Detector at EOL: flash at 5 second intervals
Detector in fault: flash at 1.3 second intervals
Detector detecting fire: flash at 0.7 second intervals
Detector in fire (once processed at panel): continuous
Element type: optical smoke / thermistor
IP rating: IP21
