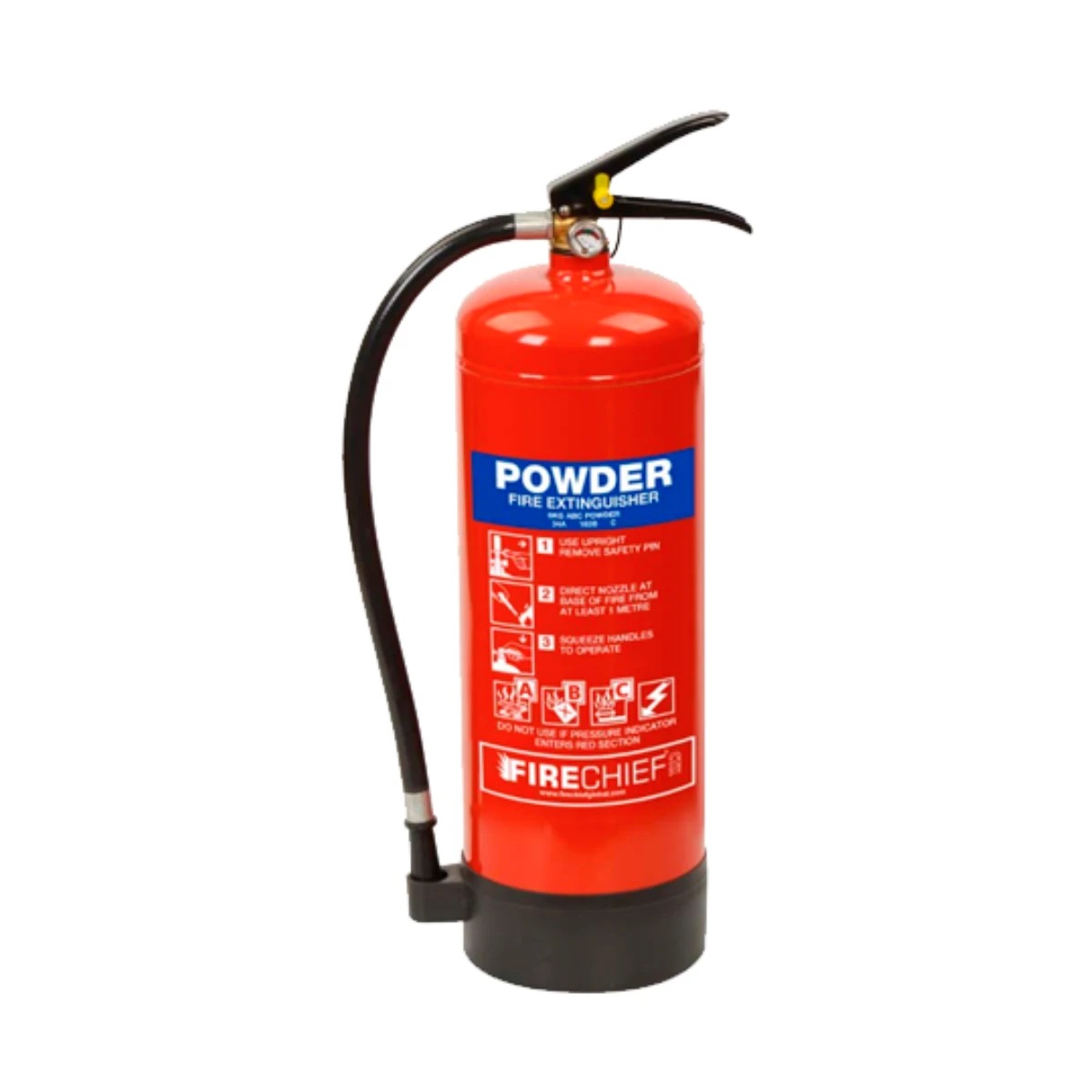

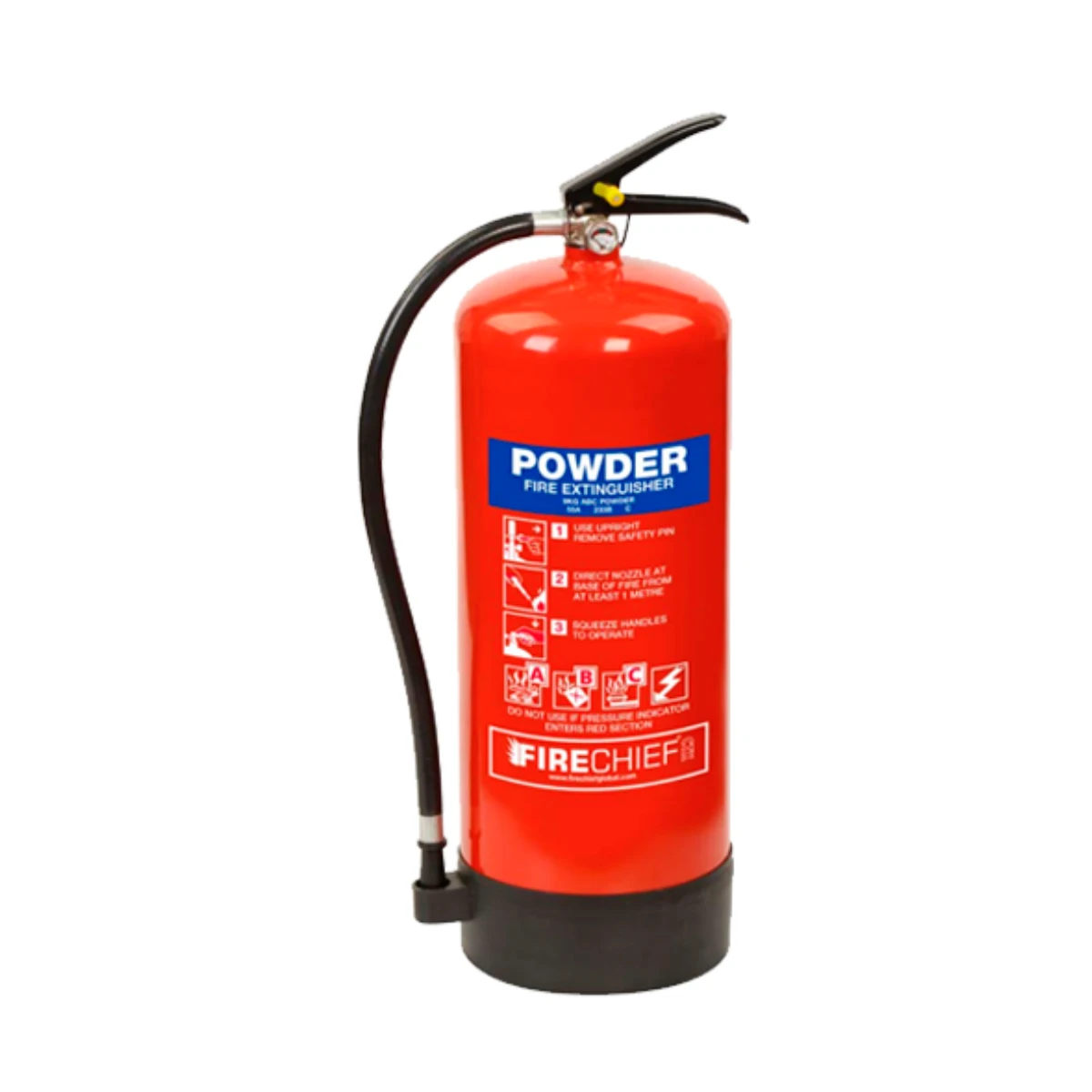

The FireChief CTX series of Dry Powder Extinguishers are exceptionally versatile and capable of combating Class A, B, and C fires, including electrical hazards, flammable liquids and gases, general wood/paper fires, and even vehicle fires.
This product is Kitemark certified to BS EN 3 standards and comes with a 5-year guarantee. It has undergone a 35kV dielectric test, features squeeze grip operation, has an internal polyethylene lining, has been designed for multi-purpose applications and comes with a corrosion-resistant finish.
The CTX range of FireChief extinguishers is a more affordable alternative to the standard XTR range.
CE approved
Kitemarked to BS EN3
Passed 35kv conductivity test
Corrosion resistant finish
J bracket included
Super strong base skirt for protection
Squeeze grip operation
Built to last - ideal for harsh environments
Easy to service
5-year warranty on all models
Capacity | 6kg (CXP6) | 9kg (CXP9) |
Fire rating | 34A 183B C | 55A 233B C |
Extinguisher medium | ABC powder | ABC powder |
Temperature range | -30°C - +60°C | -30°C - +60°C |
Working pressure | 14 bar | 14 bar |
Discharge time | ≥15 seconds | ≥15 seconds |
Height | 525mm | 570mm |
Diameter | 150mm | 184mm |
Weight* | 8.9kg | 13.3kg |
Carton height | 550mm | 590mm |
Carton length | 160mm | 195mm |
Carton width | 155mm | 190mm |
Packaged weight** | 9.55kg | 14.1kg |
* Extinguisher, contents and plastic base only (where applicable) - not including hose, bracket or packaging.
** Includes all packaging, hose / horn and bracket.
A. ABC dry powder fire extinguishers can be used on Class A solid combustibles, Class B flammable liquids, Class C flammable gases and electrical fires.
Class A – Solid Combustibles (wood, paper, cloth etc.)
Class B – Flammable Liquids (oils, solvents, alcohol, gasoline etc.)
Class C – Flammable Gases (propane, butane, petroleum gases etc)
A. The canister has a red body, a blue banner running along the top section labelling it POWDER, and a horn-shaped nozzle. White capitalised text is used for the POWDER label.
A. ABC dry powder fire extinguishers are commonly found in fabrication industries, industrial units, outside events, garage forecourts, businesses with large boiler rooms, LPG dispensing plants, welding or flame cutting businesses.
A. All our portable fire extinguishers are supplied ready for use, but those with larger capacities may need to be filled and charged prior to the first time they’re used. The product listing will explain this clearly.
A. Fire extinguishers must be serviced every 12 months, this is known as the “basic service”. This service should be performed in accordance with British Standard BS5036-3 and conducted by a third-party, appropriately trained technician.
A. This depends entirely on what you are trying to extinguish, below are some examples of fires you could encounter.
Class A – Solid Combustibles (wood, paper, cloth etc.)
Class A Fire Extinguishers – Water, Water Additive, Dry Powder and Wet Chemical
Class B – Flammable Liquids (oils, solvents, alcohol, gasoline etc.)
Class B Fire Extinguishers – CO2, Dry Powder and Foam
Class C – Flammable Gases (propane, butane, petroleum gases etc)
Class C Fire Extinguishers – Dry Powder
Class D – Flammable Metals (magnesium, sodium, potassium, calcium, titanium etc.)
Class D Fire Extinguishers – Specialist Dry Powder (M28, MonneX and L2)
Electrical – Electrical Fires
Fire Extinguishers for Electrical Fires – CO2 and Dry Powder
Class F – Flammable Cooking (cooking oils and fats)
Class F Fire Extinguishers – Wet Chemical
A: In the fire extinguisher evaluation, a scenario is set up involving a 1m x 1m metallic plate suspended by insulators and connected to an AC transformer generating 35,000V between the plate and the ground. The extinguisher under scrutiny is positioned so that its nozzle aims at the plate's centre, maintaining a minimum distance of 1m. An ammeter is attached between the extinguisher handle and the ground, as well as between the nozzle and the ground. The extinguisher is discharged toward the plate, and the resulting current is measured.
To pass the test, the current flowing between the extinguisher handle and the ground, as well as between the nozzle and the ground, must not exceed 0.5 mA. This value represents the threshold for human perception and is one-tenth of the typically required current for a muscular reaction. This criterion must be met consistently throughout the entire discharge process of the portable fire extinguisher.
Successfully tested extinguishers are labelled to indicate their suitability for application on live electrical equipment, specifying usage up to 1000V at a distance of 1m. Extinguishers that fail the test or those that haven't undergone testing (including water and foam extinguishers discharged as a jet and some non-kitemarked extinguishers that have not been submitted for evaluation) are marked with a warning: "Do not use on live electrical equipment.
