Vimpex Identi-Cryer Lockdown System Starter Pack - Large Premises
We Recommend
Code: FPS114/124
INC VAT
Code: FPS114/124
Designed for larger premises such as schools, leisure centres and council buildings, this comprehensive lockdown alert system helps improve site security and emergency readiness.
The starter pack provides everything needed to set up a reliable lockdown system that delivers fast, clear alerts during critical incidents. It's suitable for both new installations and as part of wider safety upgrades.

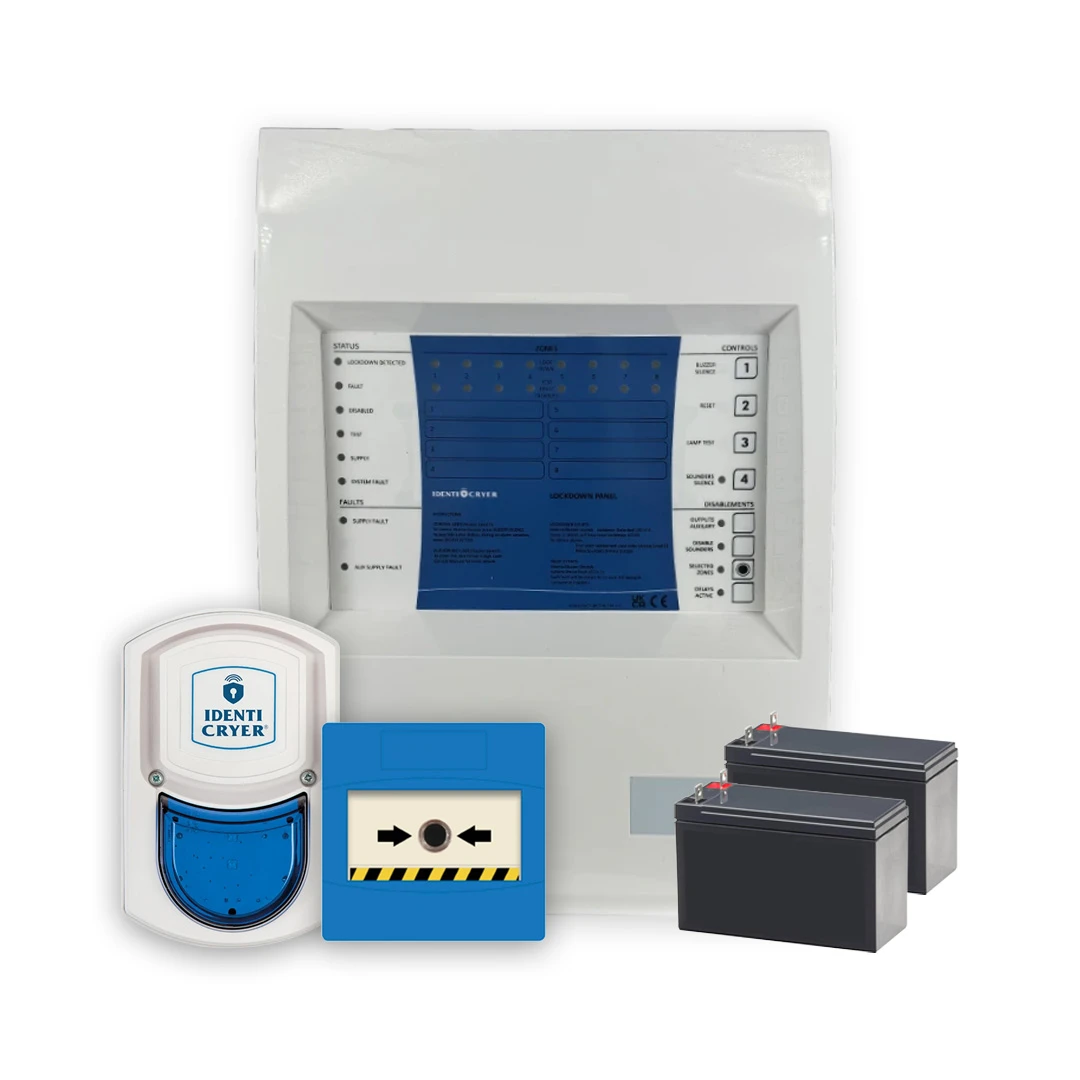

Kit contents:

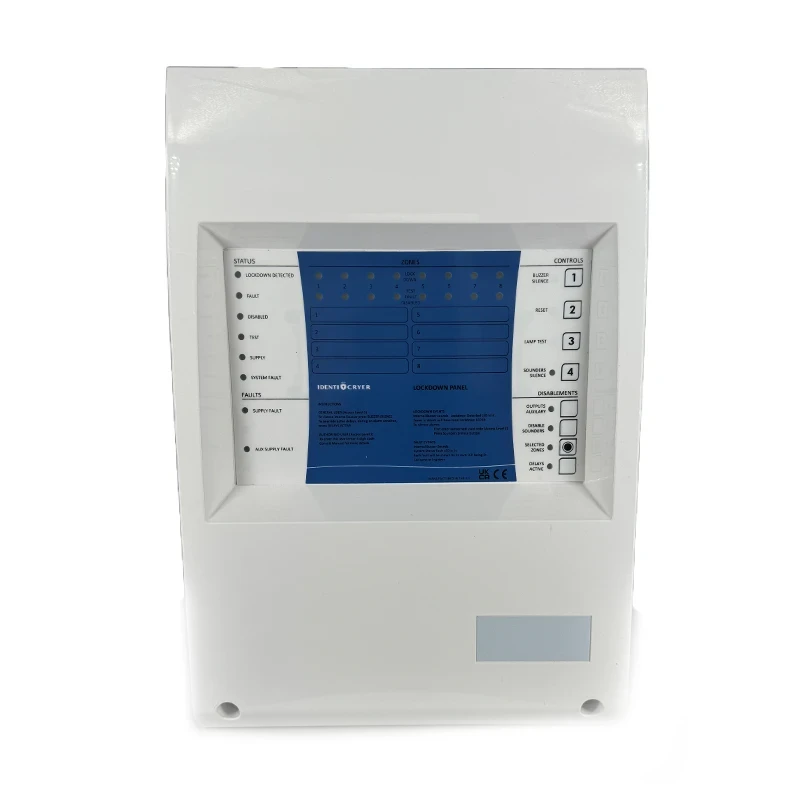

1 x 8 Zone Lockdown Panel – Allows separate zone activation and continuous fault monitoring. Compact, easy to mount, and intuitive to operate.

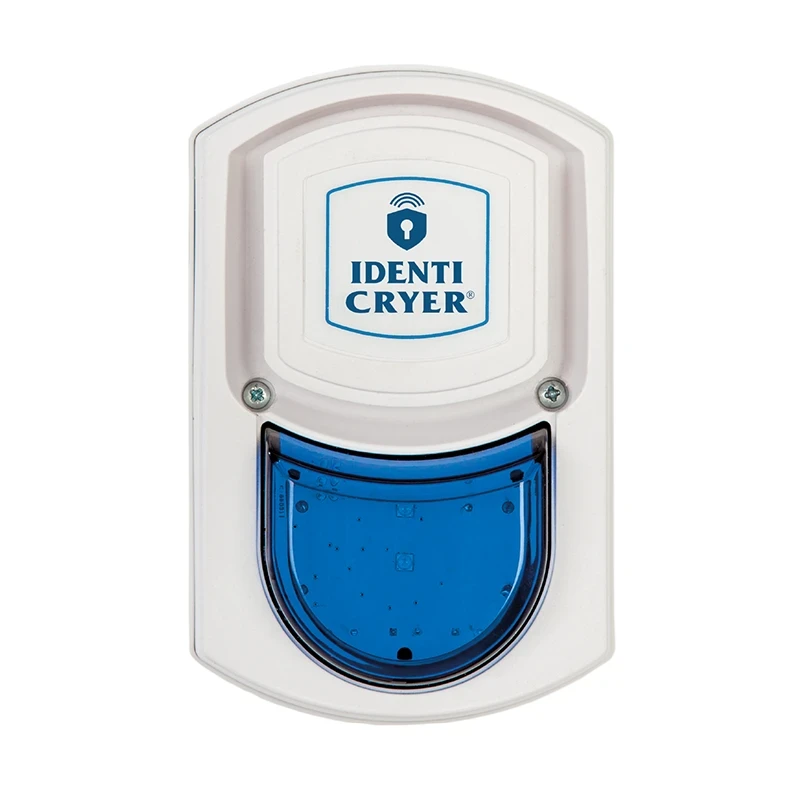

1 x Deep Base Sounder with Blue Beacon – Combines a flashing blue light with a loud audible tone, ensuring alerts are noticed even in busy or noisy environments.
1 x Blue Lockdown Call Point – Distinctively coloured for fast identification and straightforward activation in an emergency.
2 x 7Ah Trade Batteries – Long-life backup batteries to maintain system operation during a mains power outage.
This system is designed with Martyn’s Law in mind and helps venues take a proactive approach to security. Whether you’re responding to a security threat or needing a clear site-wide alert system, the Identi-Cryer delivers fast, effective communication.
Best suited for:
Primary and secondary schools
Nurseries and childcare settings
Faith-based venues
Community centres
Sports and social clubs
8 zone control panel ideal for large sites
24-hour fault monitoring
Blue call point for clear lockdown activation
Deep base sounder with integrated blue beacon
Backup battery functionality for power resilience
Suitable for primary schools, nurseries & social clubs
Supports Martyn’s Law compliance
Specification | Call Point | Control Panel | Sounder Beacon |
|---|---|---|---|
Insulation Resistance | >100 Mohm @ 500 V dc | ||
Maximum Current | 3 A @ 250 V ac / 5 A @ 125 V ac | ||
Cable Termination | 0.5 - 2.5 mm² | Screw TB 2.5 mm² | |
Operating Temperature | -30 to +70°C | -10°C to 50°C | -25°C to +70°C |
Humidity | 0–95% | ||
IP Rating | IP42 | IP30 | IP45 or IP66 (Deep Base required for IP66) |
Material / Construction | ABS / Polycarbonate / PA6 + Glass Fibre | Fire Rated ABS | ABS |
Mains Supply | 230 Vac (100 Watts Max) | ||
Mains Supply Fuse | 4 A - 250 V Slow Blow – 20 mm | ||
Output Voltage | 28.5 nominal Vdc | ||
Battery Size Max | 12 Vdc 7Ah (2 Batteries) | ||
Dedicated Sounder Circuits | 2 x 24 Vdc, fused at 500 mA | ||
Aux. Relay Output | 1 x Fire, 1 x Fault (NO, NC, C) | ||
Relay Contact Rating | 50 Vdc – 2 A resistive loads | ||
Detection Circuit EOL | Active EOL – Capacitor | ||
Sounder Circuit EOL | 10K Ohms, 0.25 W | ||
Colour | White | White | |
Dimensions (HxWxD) | 404 x 272 x 107 mm | ||
Weight | 1.7 Kg | ||
Operating Voltage | 20–28 V dc | ||
Current @ 24 V dc, Peak/Avg – Sounder | 27/20 mA | ||
Current @ 24 V – Sounder + Low Strobe | 33/26 mA | ||
Current @ 24 V – Sounder + High Strobe | 52/60 mA | ||
Current – Low Current Strobe Only | 13 mA | ||
Current – High Current Strobe Only | 32 mA | ||
Strobe Output (Low) | 2 Cd | ||
Strobe Output (High) | 6 Cd | ||
Sound Output – Fast Sweep Tone | 100 dB (A)* | ||
Sound Output – Voice | 95 dB (A)** | ||
Volume Adjustment Range | 82 to 100 dB(A) (±18 dB(A)) |
