Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet

Name: Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet
Brand: Paxton
Price: 392.39 GBP
Availability: InStock

Code: FPS900/086

£392.39

INC VAT

Code: FPS900/086

*Delivery can depend on the items in your basket, we keep you informed about shipping once your order is placed.

Have a question about this? Click here

Overview Features Technical Data

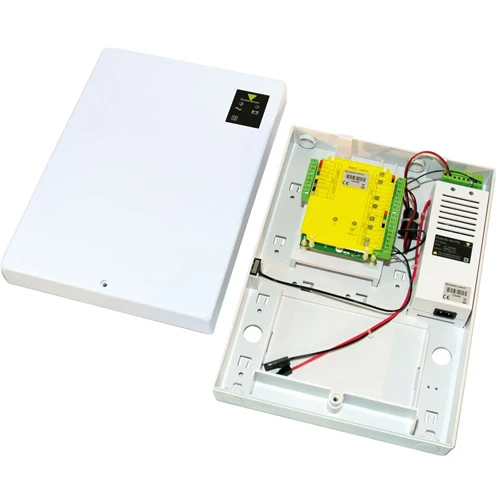

The Paxton 682-531 Net2 Plus Single Door Controller combines a single-door access control unit with a 12VDC 2A power supply and plastic housing. It can connect directly to a TCP/IP network using a standard RJ45 connection, with a built-in TCP/IP converter for network communication.

The controller can operate as part of a network while continuing to make access decisions and store events independently. An RS485 connection also allows Net2 Plus and Net2 Classic control units to be networked using dedicated CAT5 cabling, while Net2 Plus, Net2 Classic and Net2 nano control units can be used together on the same site.

With capacity for up to 50,000 users or tokens, 250 access levels and more than 2,500 stored events, the controller also provides inputs for an exit button and door contact, alongside an alarm/bell output.

Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet
Single-door access control unit	12VDC 2A power supply included	Plastic housing
Built-in TCP/IP converter	Standard RJ45 network connection	RS485 networking
Up to 50,000 users/tokens	250 access levels	2,500+ stored events
2 reader ports per ACU	Exit button input	Door contact input
Alarm/bell output	Colour-coded terminal wiring	Supports compatible third-party readers

Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet
Product Code	682-531	Product Type	Single Door Access Control Unit
Power Supply	12VDC 2A	Housing	Plastic
Maximum Users/Tokens	50,000	Access Levels	250
Time Zones	64	Stored Events	2,500+
PIN Length	4–8	Number of Codes	50
Code Length	4–8	Data Retention During Total Power Loss	30 days
Door Open Time	1–5000 seconds	Silent Operation	Yes
Handsfree Compatible	Yes – requires interface	Clock & Data	Yes
26 Bit Wiegand	Yes – max. 50 bits	Custom Wiegand	Yes – max. 50 bits
Operating Voltage	12VDC ±20% or 24VDC ±20%	Current Consumption	200mA @ 12VDC
Relay Switchable Voltage	24V DC	Relay Switchable Current	4A max.
Alarm Output Current	1A	TCP/IP	Yes
RS485	Yes	Wireless	No
Ethernet Network Speed	100Mbit/s auto MIDX	Ethernet Bandwidth	200 kbit/sec
DHCP Support	Yes – fixed IP recommended	Reader Ports per ACU	2
Readers/Keypads per ACU	4 – check individual reader current draw	Reader Port Output Current	500mA total
Third-Party Reader Support	Yes – if compatible	Reader Cable	Belden 9540
Network Cable	CAT5 or Belden 8723	Exit Button Input	Yes
Door Contact Input	Yes	Alarm/Bell Output	Yes
Operating Temperature	0°C to +55°C	Moisture Resistance	No
Vandal Resistance	Low

Overview

Features

Technical Data Technical Data Mobile Dropdown

Related Products

Fire Extinguisher Guide

Make Sure You've Got The Right Fire Extinguisher For Your Environment

Nationwide Servicing

Purchase Your Fire Extinguisher Servicing Online Now - Available Across The Country

Products From Fire Protection Shop

Fire Protection Shop specialise in the supply of high-quality fire extinguishers. There are many different classifications of fire and so our products include a variety of different extinguisher types. For example, we offer water or foam fire extinguishers for solid combustibles and carbon dioxide fire extinguishers for flammable liquid or electrical fires. Each extinguishing agent comes with its benefits. Typically, water extinguishers are cheaper, produce a cooling effect and prevent reignition once the fire has been extinguished. Carbon dioxide extinguishers are clean agents, they leave no residue, are suitable for electrical fires and are often used on liquid fires which include petrol, oil or other solvents.

In addition to our extinguishers, we offer a range of fire safety products to both domestic and commercial premises. This includes the supply of fire blankets, extinguisher stands, smoke alarms, first aid kits and much more. Our entire range is sourced from reputable brand manufacturers at competitive prices. Also, all of our products carry a full warranty and guarantee and are supplied with relevant fixings where applicable.

So, for fire extinguishers, alarms and all your other fire safety needs, trust Fire Protection Shop to give you the quality, expertise and service you require.

Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet

Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet

Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet

Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet

Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet

Paxton 310-300 Prox RDR Cover 50mm In & Out

Paxton 323-110 P200 Proximity Reader

Paxton 326-735 Compact Vandal Proof Proximity Reader

Paxton 370-225BL Backbox Proximity Reader

Paxton 390-135 Proximity Panel Mount Reader

Paxton 390-747 Satin Chrome Metal Proximity Reader

Paxton 477-222 Proximity Hands-Free Interface with Plastic Housing

Paxton 477-384 Net2 Air Bridge (Ethernet)

Paxton 477-600 Net2 Air Bridge

Paxton 593-721 Marine Exit Button

Paxton 682 Net2 Plus Single Door Controller with PoE

Paxton 682-531 Net2 Plus Single Door Controller with PSU - Plastic Cabinet

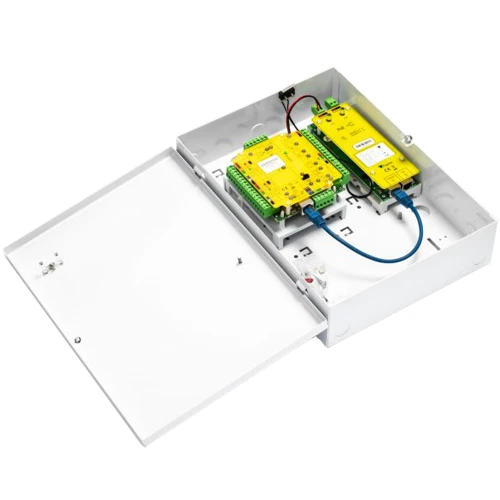

Paxton 682-721 Net2 Plus Single Door Controller PoE+ - Metal Cabinet
