Code: FPS331/337
INC VAT
Code: FPS331/337

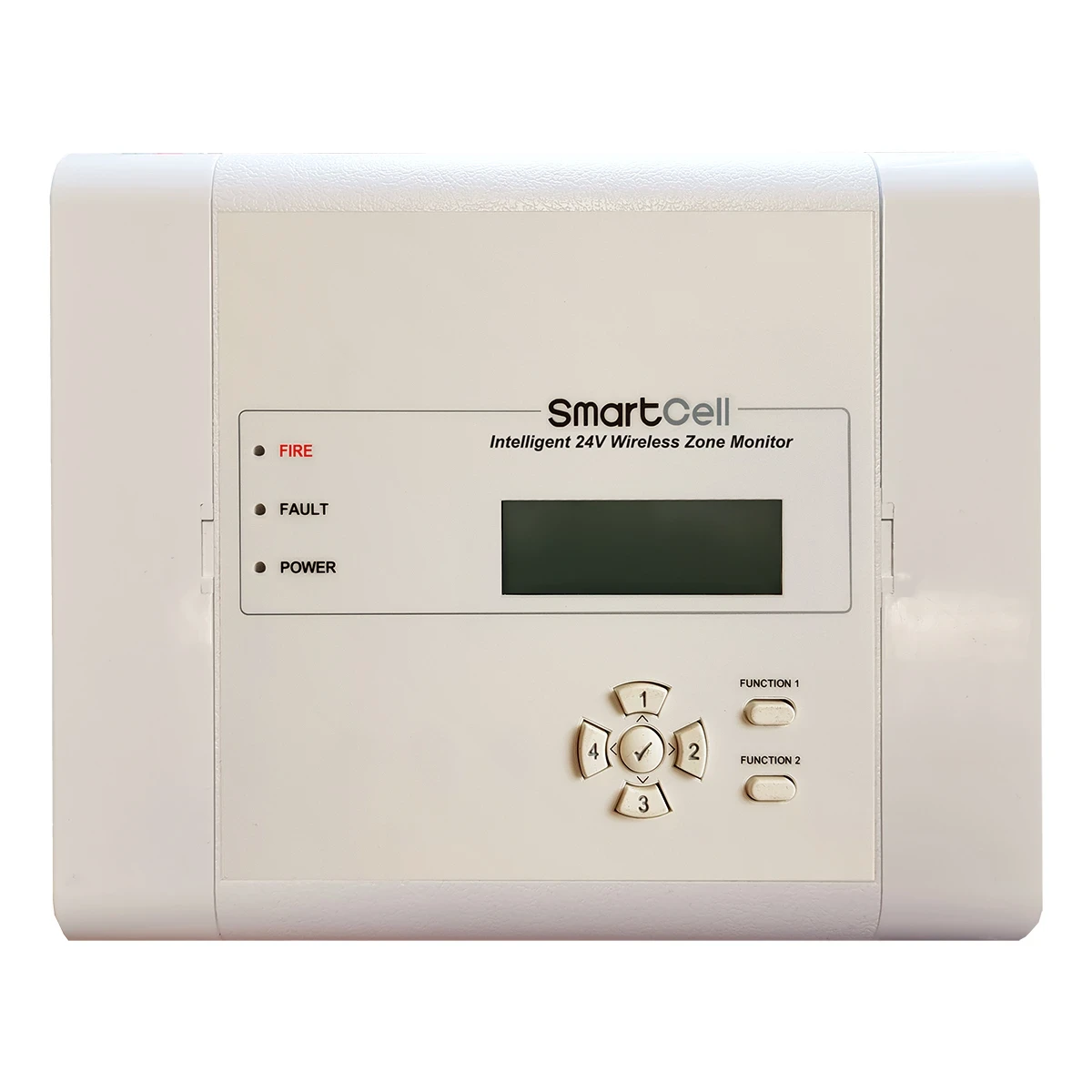

The SmartCell Wireless Zone Monitor (WZM) supports up to 16 SmartCell wireless fire devices, using bidirectional communication on the European harmonised 868 MHz frequency band.
It connects to both conventional and addressable fire alarm systems, offering flexibility for a wide range of installations.
SmartCell WZM and its wireless devices help you achieve compliance with the latest fire regulations quickly, reducing installation time and minimising disruption compared to cabled systems.
Suitable for almost any building, the WZM often matches or exceeds the performance of wired devices. It features onboard connections for addressable and conventional systems and supports up to 16 wireless fire devices.
By removing the need for expensive fire-rated cable and associated labour, the WZM lowers installation and maintenance costs while reducing the total cost of ownership.
Supports up to 16 SmartCell wireless fire devices
Addressable & conventional control panel connections
230V
80-character LCD display
USB-A & USB-B connectivity
48 hr battery backup
Category | Specification |
|---|---|
Electrical | Power supply type: 230 VACOperating voltage: 220–240 VAC, 50 Hz, 0.3 ACurrent consumption: 5 mA (PSU), plus 100 mA from WZM |
Input | Input quantity: 2Input type and rating: Resistor monitored inputs |
Output | Output quantity: 2Output type and rating: 1 × fire & 1 × fault, rated 30 V @ 1 A |
Physical | Dimensions: 275 × 220 × 80 mm (W × H × D)Net weight: 1.55 kg Colour: White Mounting type: Surface mount Cable entries: 4 × 100 mm (bottom), 4 × 100 mm (back)Batteries: 6 V, 4 Ah |
Environmental | Operating temperature: -5 to +45°CStorage temperature: 0 to +30°CRelative humidity: 95% noncondensing max. Environment: Indoor IP rating: IP30 |
Regulatory | Compliancy: CECertification: CPR Standards: EN54-13, EN54-18, EN54-25 |
Wireless Signalling | Operating frequency: 868 to 870 MHz Output transmitter: 14 dBm max. / 25 mW |
The SmartCell Wireless Zone Monitor (WZM) supports up to 16 SmartCell wireless fire devices, using bidirectional communication on the European harmonised 868 MHz frequency band.
It connects to both conventional and addressable fire alarm systems, offering flexibility for a wide range of installations.
SmartCell WZM and its wireless devices help you achieve compliance with the latest fire regulations quickly, reducing installation time and minimising disruption compared to cabled systems.
Suitable for almost any building, the WZM often matches or exceeds the performance of wired devices. It features onboard connections for addressable and conventional systems and supports up to 16 wireless fire devices.
By removing the need for expensive fire-rated cable and associated labour, the WZM lowers installation and maintenance costs while reducing the total cost of ownership.
Supports up to 16 SmartCell wireless fire devices
Addressable & conventional control panel connections
230V
80-character LCD display
USB-A & USB-B connectivity
48 hr battery backup
Category | Specification |
|---|---|
Electrical | Power supply type: 230 VACOperating voltage: 220–240 VAC, 50 Hz, 0.3 ACurrent consumption: 5 mA (PSU), plus 100 mA from WZM |
Input | Input quantity: 2Input type and rating: Resistor monitored inputs |
Output | Output quantity: 2Output type and rating: 1 × fire & 1 × fault, rated 30 V @ 1 A |
Physical | Dimensions: 275 × 220 × 80 mm (W × H × D)Net weight: 1.55 kg Colour: White Mounting type: Surface mount Cable entries: 4 × 100 mm (bottom), 4 × 100 mm (back)Batteries: 6 V, 4 Ah |
Environmental | Operating temperature: -5 to +45°CStorage temperature: 0 to +30°CRelative humidity: 95% noncondensing max. Environment: Indoor IP rating: IP30 |
Regulatory | Compliancy: CECertification: CPR Standards: EN54-13, EN54-18, EN54-25 |
Wireless Signalling | Operating frequency: 868 to 870 MHz Output transmitter: 14 dBm max. / 25 mW |
