Vanguard Maxi Emergency LED Bulkhead Self Test
We Recommend
Bestseller
5 Year Warranty
Bulk Buy Options
Code: EL001/700
INC VAT
Code: EL001/700

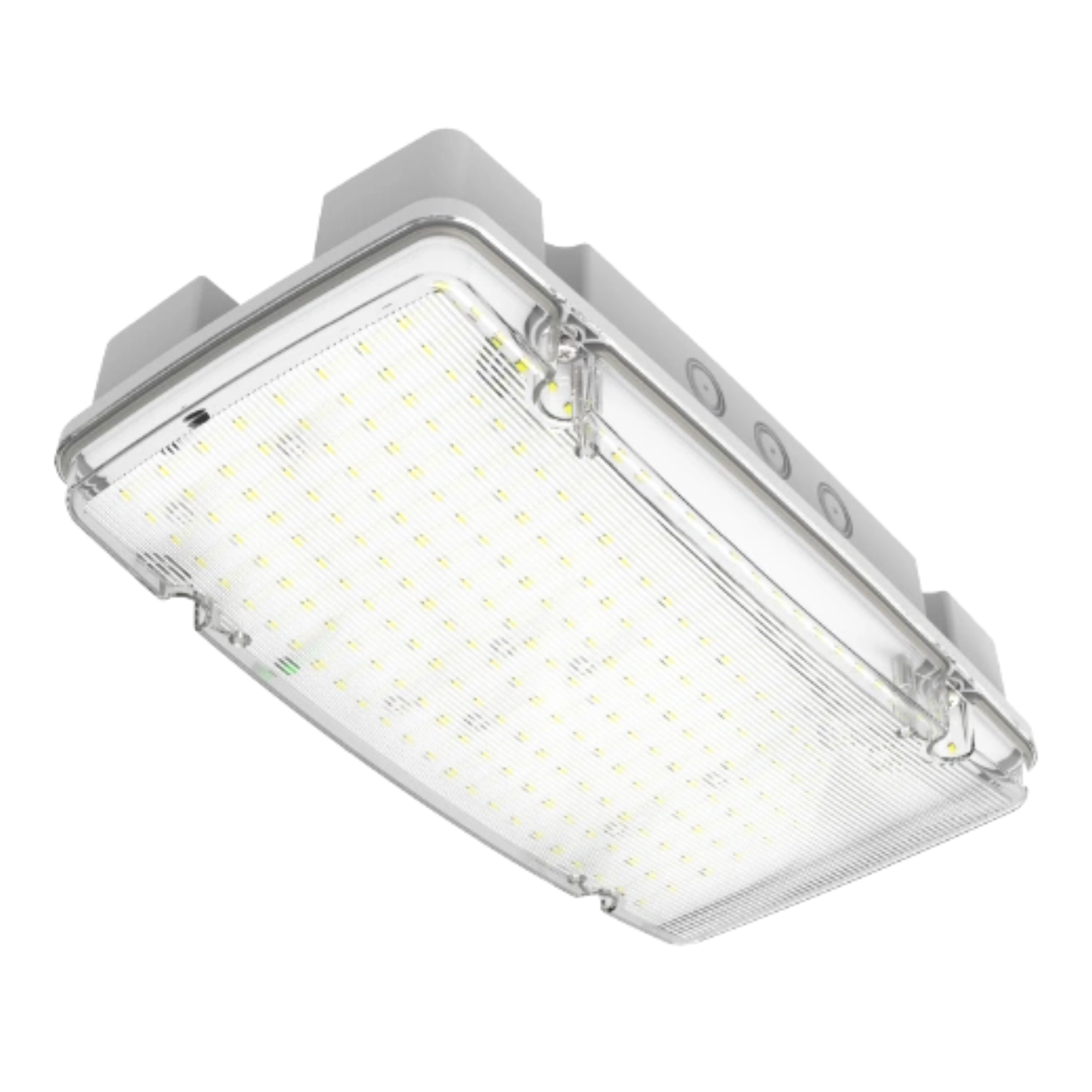

The Vanguard MAXI sets a new standard in high-output emergency lighting, designed to meet the toughest demands of commercial and industrial environments. Offering selectable outputs of 1000 or 1500 lumens in non-maintained operation, this premium emergency bulkhead provides exceptional flexibility while delivering outstanding energy efficiency.
With advanced LED technology, the Vanguard MAXI achieves an impressive 150 lm/W performance while consuming only 10W. The latest V2 model combines selectable self-test and manual test functionality with an efficient prismatic lens, ensuring a wide 135° light distribution for both escape routes and open area applications.
Durability is at the core of its design, with a robust IP66 rating for weather resistance and IK08 impact protection for demanding environments. The built-in LiFePO₄ battery guarantees up to 3 hours of reliable emergency duration, offering extended service life compared to traditional batteries.
For clarity and visibility, the luminaire delivers a 6500K cool white output with Ra >80 colour rendering, ensuring safe evacuation conditions. Backed by a 5-year warranty including emergency battery cover, the Vanguard MAXI represents the ultimate choice where maximum light output, reliability, and compliance are critical.
Vanguard Maxi Emergency LED Bulkhead Self Test | ||
LiFePO₄ battery provides up to 3 hours of reliable emergency duration | Selectable output of 1000 or 1500 lumens for powerful emergency illumination | IP66 weatherproof and IK08 impact resistant construction for tough environments |
Energy efficient design delivering 150 lm/W while consuming only 10 watts | Prismatic lens with 135° light distribution for wide and even coverage | Supplied with a 5 year warranty including battery protection |
Vanguard Emergency LED Bulkhead Self Test | |||
Length | 321mm | Width | 167mm |
Depth | 83mm | Weight | 1.468kg |
Wattage | 10W | Lumen Output | Selectable 1500lm / 1000lm |
IP Rating | IP66 | Colour Finish | White RAL9003 |
It delivers selectable high-output emergency lighting of 1000 or 1500 lumens, far brighter than standard bulkheads, while maintaining outstanding energy efficiency at 150 lm/W.
The output can be set during installation, allowing you to select either 1000 or 1500 lumens depending on the space and required luminaire spacing.
Yes. It is designed for non-maintained operation, meaning it activates only during mains power failure—ideal for applications where emergency-only lighting is required.
It provides wide, even coverage, reducing the number of fittings needed and ensuring consistent illumination in open areas and escape routes.
The V2 offers selectable self-test or manual testing. Self-test automatically runs scheduled checks, while manual testing follows standard on-demand procedures.
It is ideal for large commercial, retail, warehouse, and industrial environments where maximum emergency light output and efficient coverage are essential.
Despite its high lumen output, the Vanguard MAXI consumes just 10W and achieves 150 lm/W efficacy, making it one of the most efficient emergency bulkheads available.
It ensures colours appear natural and clear under emergency lighting, which is crucial for safe navigation and visibility during an evacuation.
Yes. With IP66 ingress protection and IK08 impact resistance, it is built to withstand moisture, dust, and mechanical impact, indoors or outdoors.
The Vanguard MAXI is backed by a 5-year product warranty, 5-year emergency battery warranty, and 2-year on-site warranty for complete peace of mind.
The Vanguard MAXI sets a new standard in high-output emergency lighting, designed to meet the toughest demands of commercial and industrial environments. Offering selectable outputs of 1000 or 1500 lumens in non-maintained operation, this premium emergency bulkhead provides exceptional flexibility while delivering outstanding energy efficiency.
With advanced LED technology, the Vanguard MAXI achieves an impressive 150 lm/W performance while consuming only 10W. The latest V2 model combines selectable self-test and manual test functionality with an efficient prismatic lens, ensuring a wide 135° light distribution for both escape routes and open area applications.
Durability is at the core of its design, with a robust IP66 rating for weather resistance and IK08 impact protection for demanding environments. The built-in LiFePO₄ battery guarantees up to 3 hours of reliable emergency duration, offering extended service life compared to traditional batteries.
For clarity and visibility, the luminaire delivers a 6500K cool white output with Ra >80 colour rendering, ensuring safe evacuation conditions. Backed by a 5-year warranty including emergency battery cover, the Vanguard MAXI represents the ultimate choice where maximum light output, reliability, and compliance are critical.
Vanguard Maxi Emergency LED Bulkhead Self Test | ||
LiFePO₄ battery provides up to 3 hours of reliable emergency duration | Selectable output of 1000 or 1500 lumens for powerful emergency illumination | IP66 weatherproof and IK08 impact resistant construction for tough environments |
Energy efficient design delivering 150 lm/W while consuming only 10 watts | Prismatic lens with 135° light distribution for wide and even coverage | Supplied with a 5 year warranty including battery protection |
Vanguard Emergency LED Bulkhead Self Test | |||
Length | 321mm | Width | 167mm |
Depth | 83mm | Weight | 1.468kg |
Wattage | 10W | Lumen Output | Selectable 1500lm / 1000lm |
IP Rating | IP66 | Colour Finish | White RAL9003 |
It delivers selectable high-output emergency lighting of 1000 or 1500 lumens, far brighter than standard bulkheads, while maintaining outstanding energy efficiency at 150 lm/W.
The output can be set during installation, allowing you to select either 1000 or 1500 lumens depending on the space and required luminaire spacing.
Yes. It is designed for non-maintained operation, meaning it activates only during mains power failure—ideal for applications where emergency-only lighting is required.
It provides wide, even coverage, reducing the number of fittings needed and ensuring consistent illumination in open areas and escape routes.
The V2 offers selectable self-test or manual testing. Self-test automatically runs scheduled checks, while manual testing follows standard on-demand procedures.
It is ideal for large commercial, retail, warehouse, and industrial environments where maximum emergency light output and efficient coverage are essential.
Despite its high lumen output, the Vanguard MAXI consumes just 10W and achieves 150 lm/W efficacy, making it one of the most efficient emergency bulkheads available.
It ensures colours appear natural and clear under emergency lighting, which is crucial for safe navigation and visibility during an evacuation.
Yes. With IP66 ingress protection and IK08 impact resistance, it is built to withstand moisture, dust, and mechanical impact, indoors or outdoors.
The Vanguard MAXI is backed by a 5-year product warranty, 5-year emergency battery warranty, and 2-year on-site warranty for complete peace of mind.
