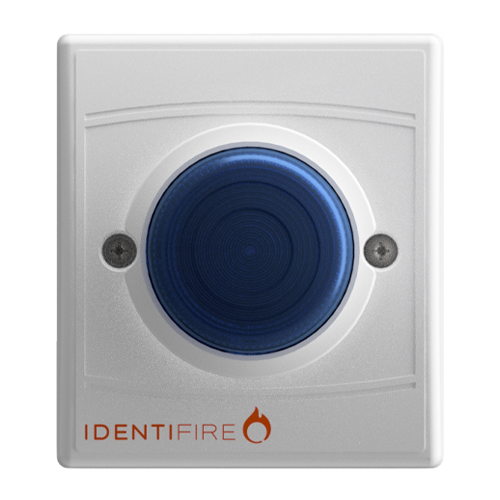

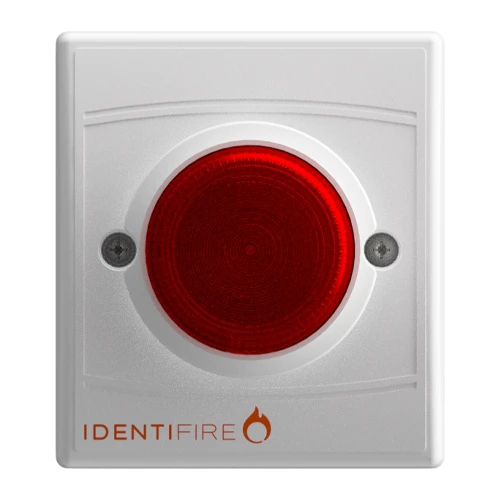

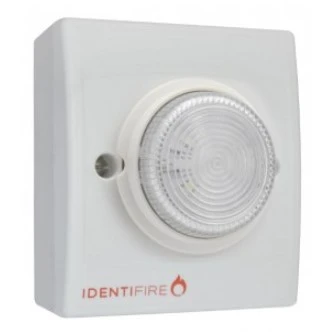

Vimpex Identifire Tritone Conventional Sounder VAD Beacon - White Body
Code:
INC VAT
Code:
The Identifire TriTone Sounder VAD delivers the same reliable performance as the standard TriTone Sounder—now with an integrated, EN-approved visual alarm device (VAD) for enhanced alerting capability. Its sleek, low-profile design makes it ideal for standard installations where both functionality and aesthetics are important.
Part of the installer-friendly Identifire range, this unit offers flexibility, consistency, and style. Supplied with a surface-mount back box, it can also be flush-mounted using a standard electrical back box for a cleaner finish.
Compatible with conventional sounder circuits, notification alarm circuits, and SavWire (2-Wire) systems
Low current draw, allowing easy integration with analogue addressable fire systems via a conventional circuit or output module
Sounder output: 98 dB(A)
Visual beacon: Red or white flash option
EN54-3 approved for both sounder and beacon functionality
Mounting options:
– Surface mount with the included Identifire back box
– Flush mount with a standard electrical gang box
Back box features internal knock-out fixing holes for fast installation, and supports conduit entry and cable gland use
Approved to EN 54 Part 3
98 dB(A)
14mA current consumption
20 - 28V dc operating voltage
Red or White Flash Beacon
Made from fire rated ABS
Can be surface mounted with the provided Identifire back box
Can be flush mounted with a standard electrical gang box
Specification | Description |
---|---|
Maximum Conductor Size | 2.5 mm² per terminal |
Tone 1 - J1 (Position 1) | Slow Sweep: Tone 800Hz to 970Hz swept at 1Hz, 92-96 dB(A) J2 Fitted, 86-90 dB(A) J2 Not Fitted |
Tone 2 - J1 (Position 2) | Medium Sweep: Tone 800Hz to 970Hz swept at 3Hz, 92-96 dB(A) J2 Fitted, 86-90 dB(A) J2 Not Fitted |
Tone 3 - J1 (Not Fitted) | Fast Sweep: Tone 800Hz to 970Hz swept at 9Hz, 92-96 dB(A) J2 Fitted, 86-90 dB(A) J2 Not Fitted |
Operating Current | 14 mA (J2 Fitted) / 11.5 mA (J2 Not Fitted) |
Operating Voltage | 24 V DC (20 - 28 V DC) |
Approval | EN 54-3 :2001+A1:2002+A2:2006, CE DoP:2821-CPR-0227, UKCA DoP:0843-CPR-1142 |
Operating Temperature | -5°C to +50°C |
Operating Humidity | 95% non-condensing |
Material | Fire-rated ABS |
Knockouts | 4 off 20 mm round, 1 off rectangular |
The Identifire TriTone Sounder VAD delivers the same reliable performance as the standard TriTone Sounder—now with an integrated, EN-approved visual alarm device (VAD) for enhanced alerting capability. Its sleek, low-profile design makes it ideal for standard installations where both functionality and aesthetics are important.
Part of the installer-friendly Identifire range, this unit offers flexibility, consistency, and style. Supplied with a surface-mount back box, it can also be flush-mounted using a standard electrical back box for a cleaner finish.
Compatible with conventional sounder circuits, notification alarm circuits, and SavWire (2-Wire) systems
Low current draw, allowing easy integration with analogue addressable fire systems via a conventional circuit or output module
Sounder output: 98 dB(A)
Visual beacon: Red or white flash option
EN54-3 approved for both sounder and beacon functionality
Mounting options:
– Surface mount with the included Identifire back box
– Flush mount with a standard electrical gang box
Back box features internal knock-out fixing holes for fast installation, and supports conduit entry and cable gland use
Approved to EN 54 Part 3
98 dB(A)
14mA current consumption
20 - 28V dc operating voltage
Red or White Flash Beacon
Made from fire rated ABS
Can be surface mounted with the provided Identifire back box
Can be flush mounted with a standard electrical gang box
Specification | Description |
---|---|
Maximum Conductor Size | 2.5 mm² per terminal |
Tone 1 - J1 (Position 1) | Slow Sweep: Tone 800Hz to 970Hz swept at 1Hz, 92-96 dB(A) J2 Fitted, 86-90 dB(A) J2 Not Fitted |
Tone 2 - J1 (Position 2) | Medium Sweep: Tone 800Hz to 970Hz swept at 3Hz, 92-96 dB(A) J2 Fitted, 86-90 dB(A) J2 Not Fitted |
Tone 3 - J1 (Not Fitted) | Fast Sweep: Tone 800Hz to 970Hz swept at 9Hz, 92-96 dB(A) J2 Fitted, 86-90 dB(A) J2 Not Fitted |
Operating Current | 14 mA (J2 Fitted) / 11.5 mA (J2 Not Fitted) |
Operating Voltage | 24 V DC (20 - 28 V DC) |
Approval | EN 54-3 :2001+A1:2002+A2:2006, CE DoP:2821-CPR-0227, UKCA DoP:0843-CPR-1142 |
Operating Temperature | -5°C to +50°C |
Operating Humidity | 95% non-condensing |
Material | Fire-rated ABS |
Knockouts | 4 off 20 mm round, 1 off rectangular |
