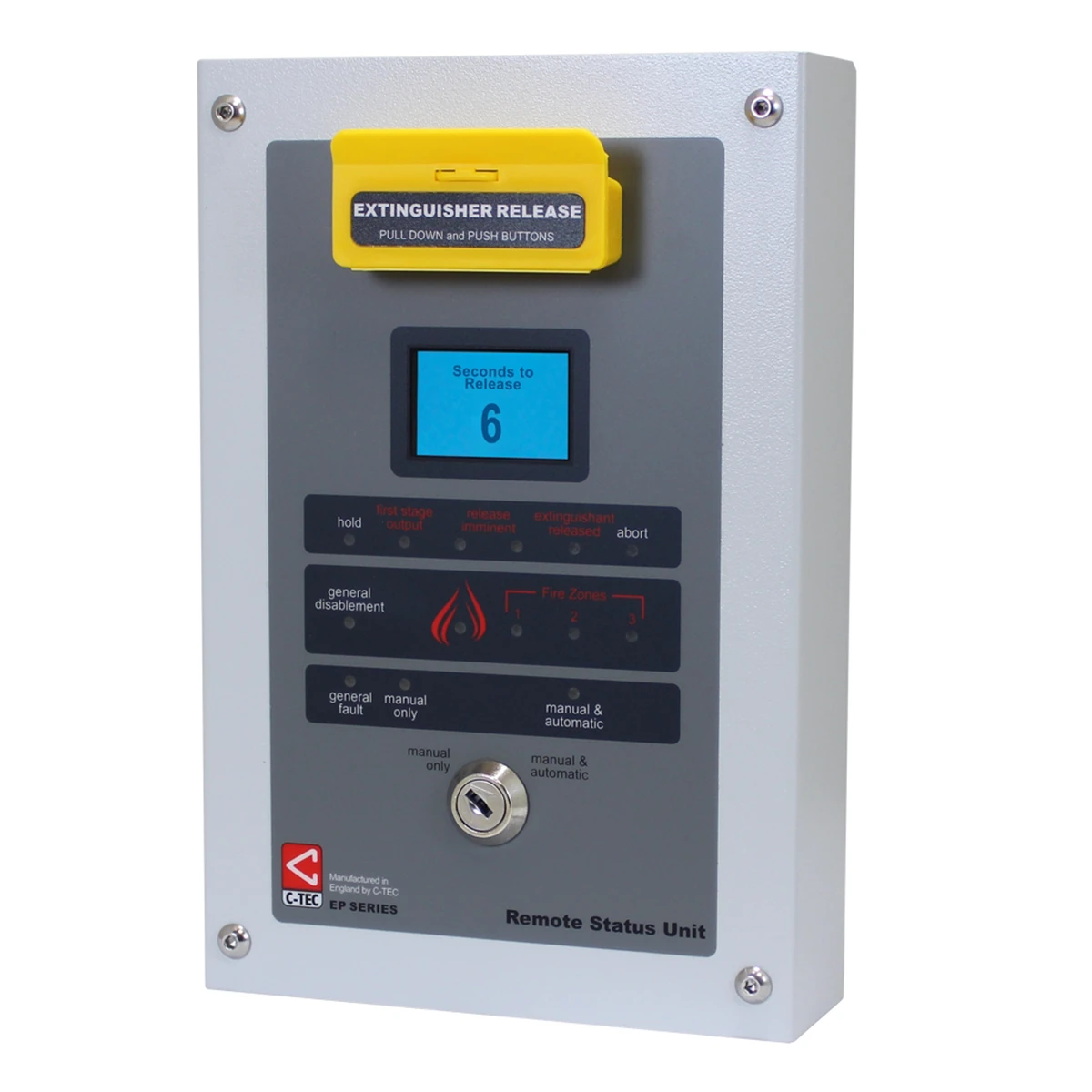

C-TEC EP210S Remote Status Unit - Surface Mounting
INC VAT
Code: FPS330/763
The C-TEC EP210S Remote Status Unit is designed to connect to the RS485 terminals on an EP203 Automatic Extinguisher Panel to provide remote system status indication via a 128 x 64 pixel LCD status display.
It includes a pull-down manual release button, a mode (auto/manual) keyswitch and a wide range of system status indicators.
Designed to connect to the RS485 terminals on an EP203 Automatic Extinguisher Panel to provide remote system status indication via a 128 x 64 pixel LCD status display.
Also includes a pull-down manual release button, a mode (auto/manual) keyswitch and a wide range of system status indicators.
Three monitored input connections (Hold, Abort and Mode).
Max. 8 remote status units per EP203 panel.
Flush remote status units (EP210F) and weather proof enclosures (BF359/1) also available.
Power requirements | 21-28VDC (200mA electronic fuse). |
---|---|
Quiescent current | 7mA. |
Auxiliary inputs | Three: (1) Hold; (2) Abort; (3) Mode. A 6k8 EOL resistor must be fitted across the terminals of the last device on each monitored input circuit. Unused circuits must have the 6k8 resistor fitted a |
Indicators | Gen. fire; Fire Zones (x3); Gen. disablement; Hold; 1st Stage Output; 2nd Stage Output; Release Imminent (x2); Exting. Released; Abort; Gen. Fault; Man. Only; Man/Auto. |
Controls | Extinguishant release (housed in yellow casing); Operation keyswitch (Manual only or Manual & Auto). |
Product dimensions (mm) | 160 W x 240 H x 51 D mm. |
Construction & finish | Metal. |
IP Rating | IP30. |
Weight | 1.498kg. |
Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
Network specification | RS485; Max. 8 remote status units (any mix) per EP203; Four wire connection (2 power, 2 data); Daisy-chain wiring. |
The C-TEC EP210S Remote Status Unit is designed to connect to the RS485 terminals on an EP203 Automatic Extinguisher Panel to provide remote system status indication via a 128 x 64 pixel LCD status display.
It includes a pull-down manual release button, a mode (auto/manual) keyswitch and a wide range of system status indicators.
Designed to connect to the RS485 terminals on an EP203 Automatic Extinguisher Panel to provide remote system status indication via a 128 x 64 pixel LCD status display.
Also includes a pull-down manual release button, a mode (auto/manual) keyswitch and a wide range of system status indicators.
Three monitored input connections (Hold, Abort and Mode).
Max. 8 remote status units per EP203 panel.
Flush remote status units (EP210F) and weather proof enclosures (BF359/1) also available.
Power requirements | 21-28VDC (200mA electronic fuse). |
---|---|
Quiescent current | 7mA. |
Auxiliary inputs | Three: (1) Hold; (2) Abort; (3) Mode. A 6k8 EOL resistor must be fitted across the terminals of the last device on each monitored input circuit. Unused circuits must have the 6k8 resistor fitted a |
Indicators | Gen. fire; Fire Zones (x3); Gen. disablement; Hold; 1st Stage Output; 2nd Stage Output; Release Imminent (x2); Exting. Released; Abort; Gen. Fault; Man. Only; Man/Auto. |
Controls | Extinguishant release (housed in yellow casing); Operation keyswitch (Manual only or Manual & Auto). |
Product dimensions (mm) | 160 W x 240 H x 51 D mm. |
Construction & finish | Metal. |
IP Rating | IP30. |
Weight | 1.498kg. |
Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
Network specification | RS485; Max. 8 remote status units (any mix) per EP203; Four wire connection (2 power, 2 data); Daisy-chain wiring. |
