Code: FPS/DC169

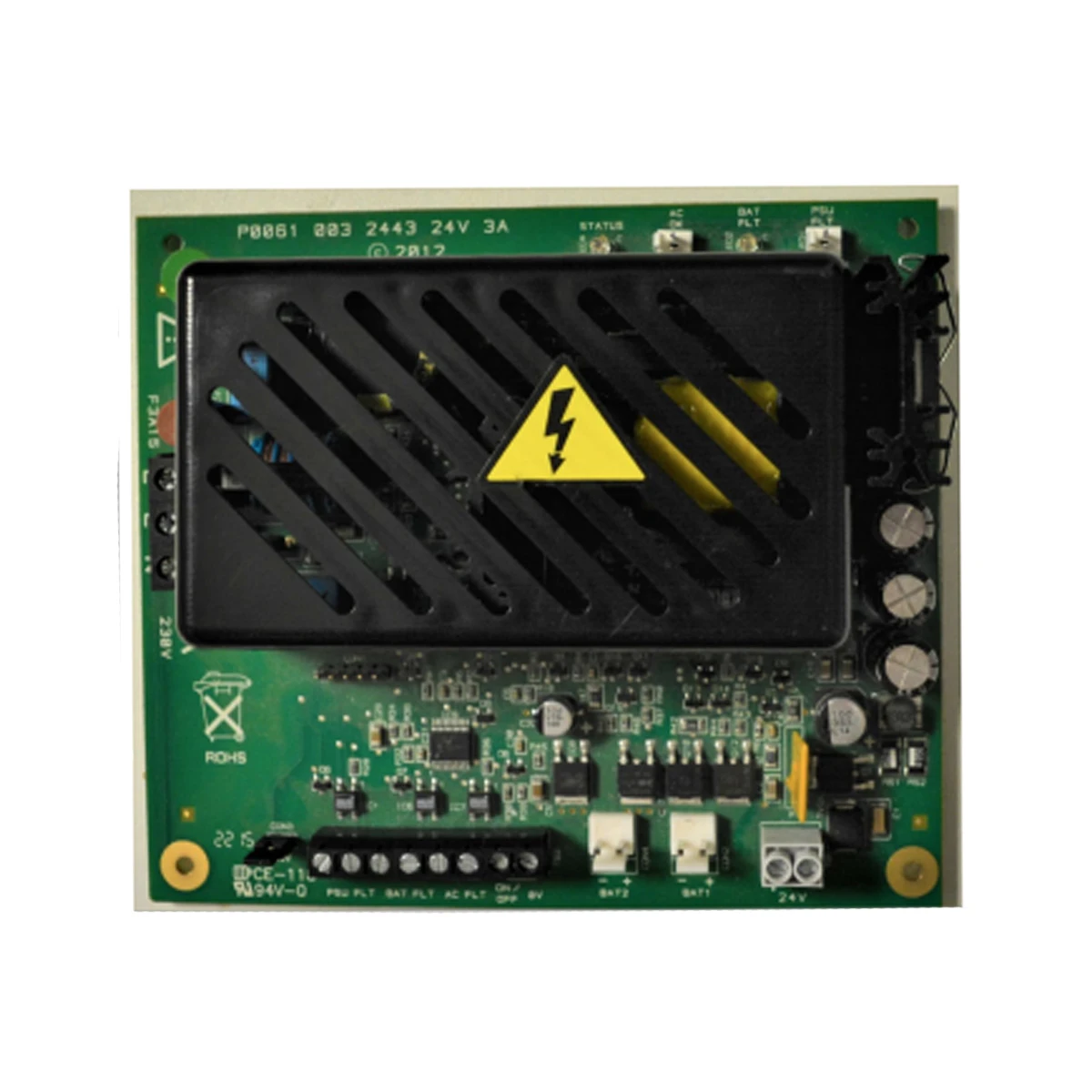

Specially designed for access control applications using Dycon’s unique protective technology, these 24Vdc switched-mode power supplies units’ feature a switchable ON/OFF output capable of switching highly inductive loads (door strikes and locks) and removing the chance of inductive kickback blowing a fuse and causing a door to remain closed or open, a frequent cause of personnel delays and expensive engineer call outs.
The range also features intelligent and capacitive load switching surge protection and snubbing and all include a jumper for simple selection of inverted or normal power switching input operation. Additionally, they have three, volt-free, outputs for remotely signalling the status and serviceability of the unit. These outputs can be used to indicate problems either locally or remotely via a suitable signalling device. A Four x LED Matrix provides detailed information of up to ten different faults and indications making fault finding quicker and easier.
Power Supply Classification: Type A, Ungraded, Environmental Class 2
Voltage Input: 195Vac - 265Vac @ 50-60Hz
AC Input Fuse: 3.15A
Output Voltage with AC Power: D2441/3/5 Max. 28Vdc, min. 20.0Vdc, 27.4Vdc with AC present
Output Ripple: D2441/3/5 = < 0.6V peak-to-peak @full rated output
Max. Output Current at Full Load: 3A
Battery Charging Current at Full Load: 300mA max @27.4Vdc float charge current
Power Consumption at Full Load: 97W
Fault Relay Rating: 60V @ 100mA, 14ohms closed
Efficiency: >80% at full load
Maximum overvoltage cut-out: 29Vdc ±3%,
Low battery fault: 22Vdc ±3%
Low-voltage power output fault: 24.6Vdc ±3%
Battery deep discharge voltage limit: 20V ±3%
Automatic output reset time: 10mS to 18s
Operating temperature range and humidity: -10°C to +50°C 95% non-condensing
PCB Size: 122 x 140 x 38mm
Weight (PCB only) (kg): 0.2kg
Weight B & C Housings (kg): B – 3.2kg; C – 4.3Kg
Specially designed for access control applications using Dycon’s unique protective technology, these 24Vdc switched-mode power supplies units’ feature a switchable ON/OFF output capable of switching highly inductive loads (door strikes and locks) and removing the chance of inductive kickback blowing a fuse and causing a door to remain closed or open, a frequent cause of personnel delays and expensive engineer call outs.
The range also features intelligent and capacitive load switching surge protection and snubbing and all include a jumper for simple selection of inverted or normal power switching input operation. Additionally, they have three, volt-free, outputs for remotely signalling the status and serviceability of the unit. These outputs can be used to indicate problems either locally or remotely via a suitable signalling device. A Four x LED Matrix provides detailed information of up to ten different faults and indications making fault finding quicker and easier.
Power Supply Classification: Type A, Ungraded, Environmental Class 2
Voltage Input: 195Vac - 265Vac @ 50-60Hz
AC Input Fuse: 3.15A
Output Voltage with AC Power: D2441/3/5 Max. 28Vdc, min. 20.0Vdc, 27.4Vdc with AC present
Output Ripple: D2441/3/5 = < 0.6V peak-to-peak @full rated output
Max. Output Current at Full Load: 3A
Battery Charging Current at Full Load: 300mA max @27.4Vdc float charge current
Power Consumption at Full Load: 97W
Fault Relay Rating: 60V @ 100mA, 14ohms closed
Efficiency: >80% at full load
Maximum overvoltage cut-out: 29Vdc ±3%,
Low battery fault: 22Vdc ±3%
Low-voltage power output fault: 24.6Vdc ±3%
Battery deep discharge voltage limit: 20V ±3%
Automatic output reset time: 10mS to 18s
Operating temperature range and humidity: -10°C to +50°C 95% non-condensing
PCB Size: 122 x 140 x 38mm
Weight (PCB only) (kg): 0.2kg
Weight B & C Housings (kg): B – 3.2kg; C – 4.3Kg
