Code: SAV001/006

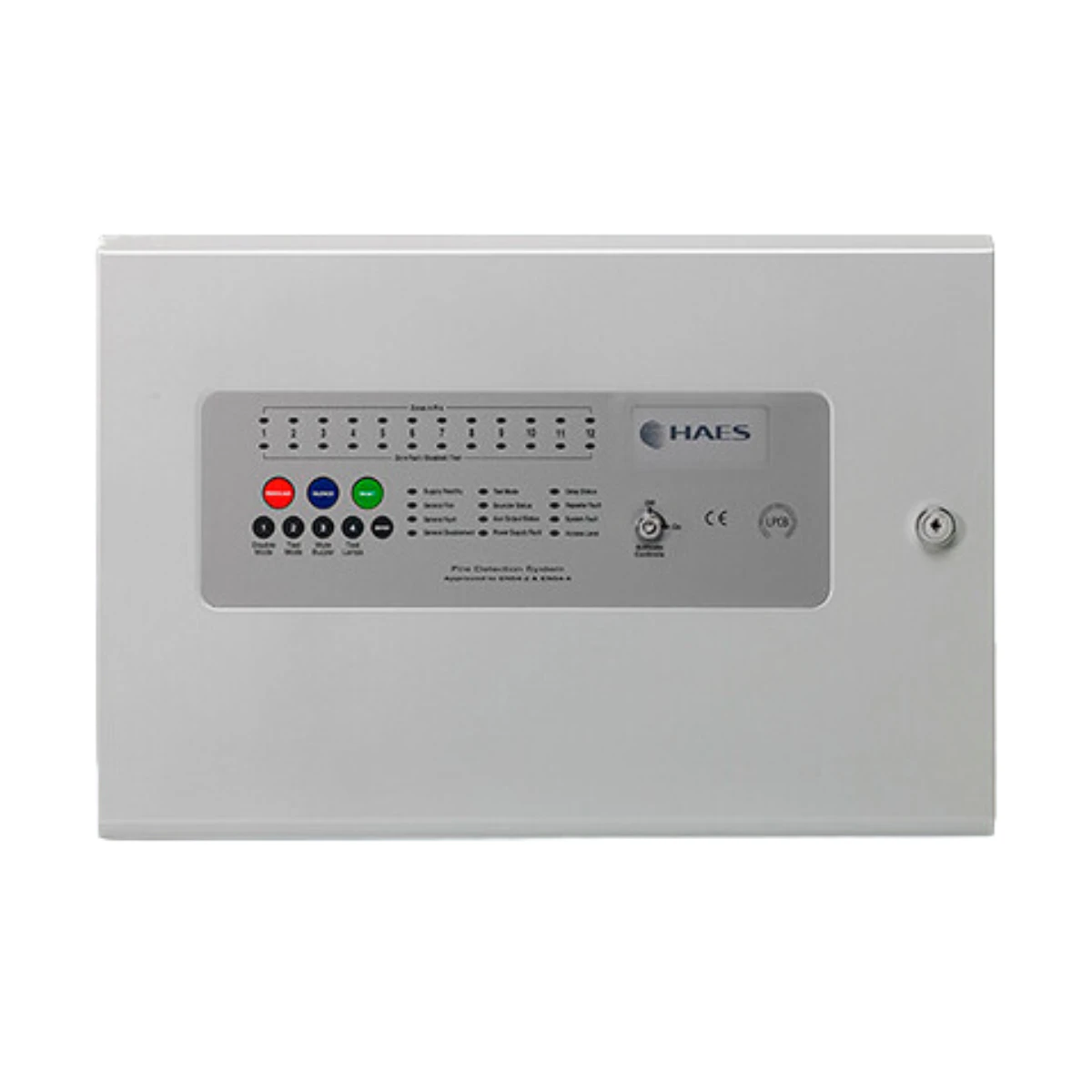

The Haes Excel-EN conventional fire alarm panel is a networkable fire alarm control panel with selectable SAV wire or conventional 4 wire configeration. Simple to install and operate the Haes Excel can support two stage activation before sounding the alarm.
LPCB certified to the latest revisions of EN54 parts 2 and 4, offers an array of user and installer-friendly features at a very competitive price.
Lockable mild steel powder coated cabinet measures 450mm x 300mm x 85mm and has space for 2 x 7.0Ah batteries.
A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone options. Comprehensive test and fault finding facilities are also provided.
2 monitored detection zones
2 monitored sounder outputs
Fire and Fault Relays, 3A 30v rated
Class change input
Alert input
Fire & fault switched -ve outputs
False alarm mode
Test mode, with or without sounders
Disable zones, sounder O/Ps & Aux O/Ps
Alarm load, 800mA shared between all sounder outputs
Fused sounder circuits @ 500mA with resettable fuses.
Twin Wire, selection by DIL switch
Activate controls via keyswitch or code entry
Soft tactile buttons for controls & programing
Conventionally wired, compatible with most detectors
Integral detector removal monitoring
3 Amp switch mode power supply Nom 27V DC
Requires 2 x 7Ah 12V batteries
2 monitored sounder outputs
2 Aux C/O relays (1 x Fire) (1 x Fault). voltage free
Class change I/P
Alert I/P
Fire & fault switched -ve outputs
Additional sounder circuits, relays & switched -ve outputs available via high spec expansion zone cards
Program delays to ouputs
Dependency modes A, B & C
Test mode, with or without sounders
Disable zones, sounder O/Ps, aux O/Ps & delays
Alarm load, 2.4A shared between all sounder outputs
All sounder circuits are fused @ 500mA with resettable fuses
Metal casing | 1.2mm mild steel |
Battery capacity | 2 x 7Ah 12V batteries |
Height | 250mm |
Width | 300mm |
Depth | 80mm |
The Haes Excel-EN conventional fire alarm panel is a networkable fire alarm control panel with selectable SAV wire or conventional 4 wire configeration. Simple to install and operate the Haes Excel can support two stage activation before sounding the alarm.
LPCB certified to the latest revisions of EN54 parts 2 and 4, offers an array of user and installer-friendly features at a very competitive price.
Lockable mild steel powder coated cabinet measures 450mm x 300mm x 85mm and has space for 2 x 7.0Ah batteries.
A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone options. Comprehensive test and fault finding facilities are also provided.
2 monitored detection zones
2 monitored sounder outputs
Fire and Fault Relays, 3A 30v rated
Class change input
Alert input
Fire & fault switched -ve outputs
False alarm mode
Test mode, with or without sounders
Disable zones, sounder O/Ps & Aux O/Ps
Alarm load, 800mA shared between all sounder outputs
Fused sounder circuits @ 500mA with resettable fuses.
Twin Wire, selection by DIL switch
Activate controls via keyswitch or code entry
Soft tactile buttons for controls & programing
Conventionally wired, compatible with most detectors
Integral detector removal monitoring
3 Amp switch mode power supply Nom 27V DC
Requires 2 x 7Ah 12V batteries
2 monitored sounder outputs
2 Aux C/O relays (1 x Fire) (1 x Fault). voltage free
Class change I/P
Alert I/P
Fire & fault switched -ve outputs
Additional sounder circuits, relays & switched -ve outputs available via high spec expansion zone cards
Program delays to ouputs
Dependency modes A, B & C
Test mode, with or without sounders
Disable zones, sounder O/Ps, aux O/Ps & delays
Alarm load, 2.4A shared between all sounder outputs
All sounder circuits are fused @ 500mA with resettable fuses
Metal casing | 1.2mm mild steel |
Battery capacity | 2 x 7Ah 12V batteries |
Height | 250mm |
Width | 300mm |
Depth | 80mm |
