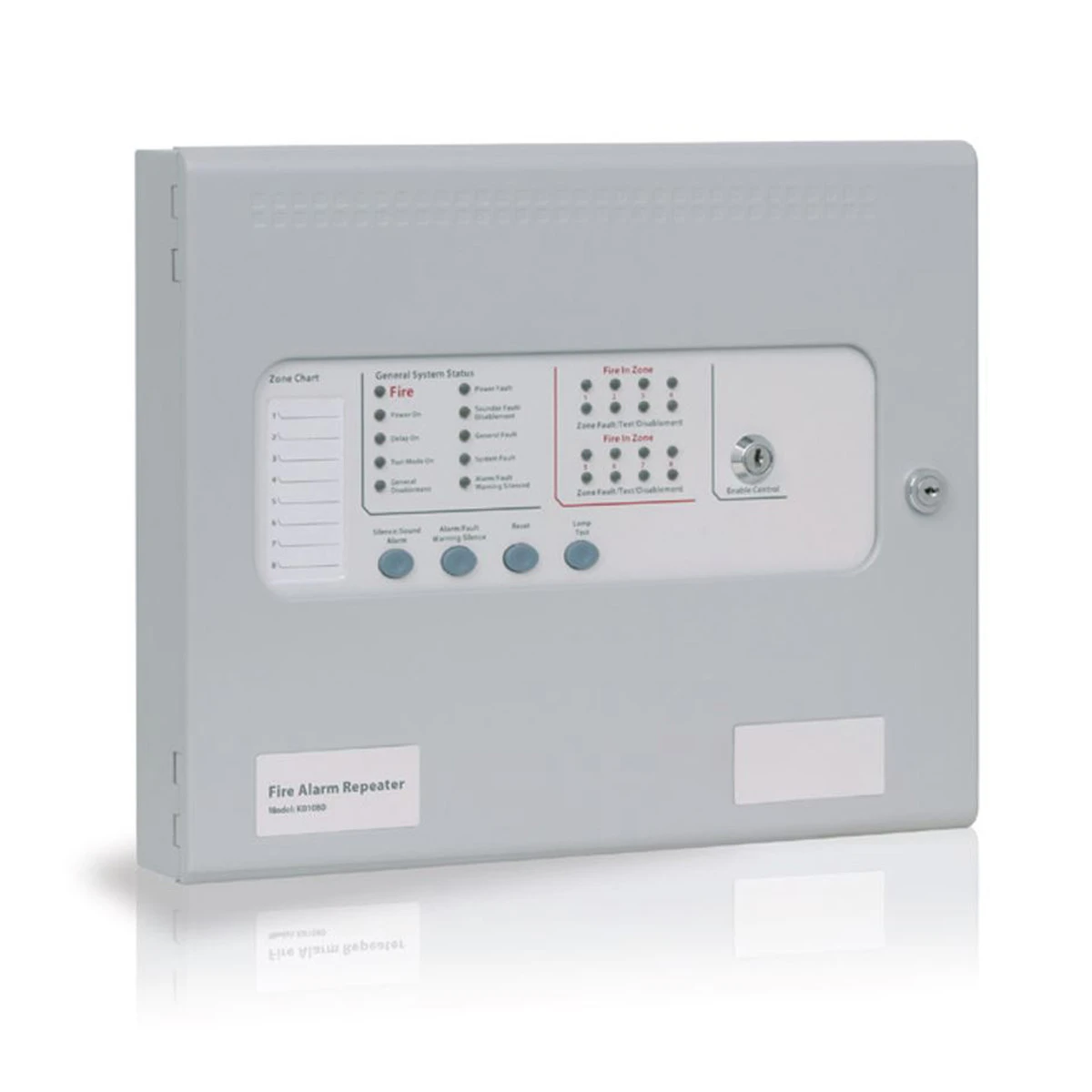

Kentec Sigma K01020M2 CP-R 2 Zone Repeater Panel
We Recommend
Bestseller
INC VAT
Code: KENPAN001/004
The Sigma CP-R Repeater is compatible with all Sigma CP control panels which have operating software version V2.0 or above.
Repeaters are available with 2, 4 or 8 zones and in mains powered (K versions) or 24v (E versions).
Mains powered repeaters require only a two core data cable from the main control panel. 24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.
A mixture of repeaters or ancillary boards up to a maximum of 7 of each type can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL swtich. The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres.
2 Zone Repeater Panel (240V)
Two wire serial connection
Volt free fire and fault contact outputs
Up to 7 panels per system
Full control over main panel
Product | Kentec Sigma K01020M2 CP-R 2 Zone Repeater Panel |
The Sigma CP-R Repeater is compatible with all Sigma CP control panels which have operating software version V2.0 or above.
Repeaters are available with 2, 4 or 8 zones and in mains powered (K versions) or 24v (E versions).
Mains powered repeaters require only a two core data cable from the main control panel. 24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.
A mixture of repeaters or ancillary boards up to a maximum of 7 of each type can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL swtich. The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres.
2 Zone Repeater Panel (240V)
Two wire serial connection
Volt free fire and fault contact outputs
Up to 7 panels per system
Full control over main panel
Product | Kentec Sigma K01020M2 CP-R 2 Zone Repeater Panel |
