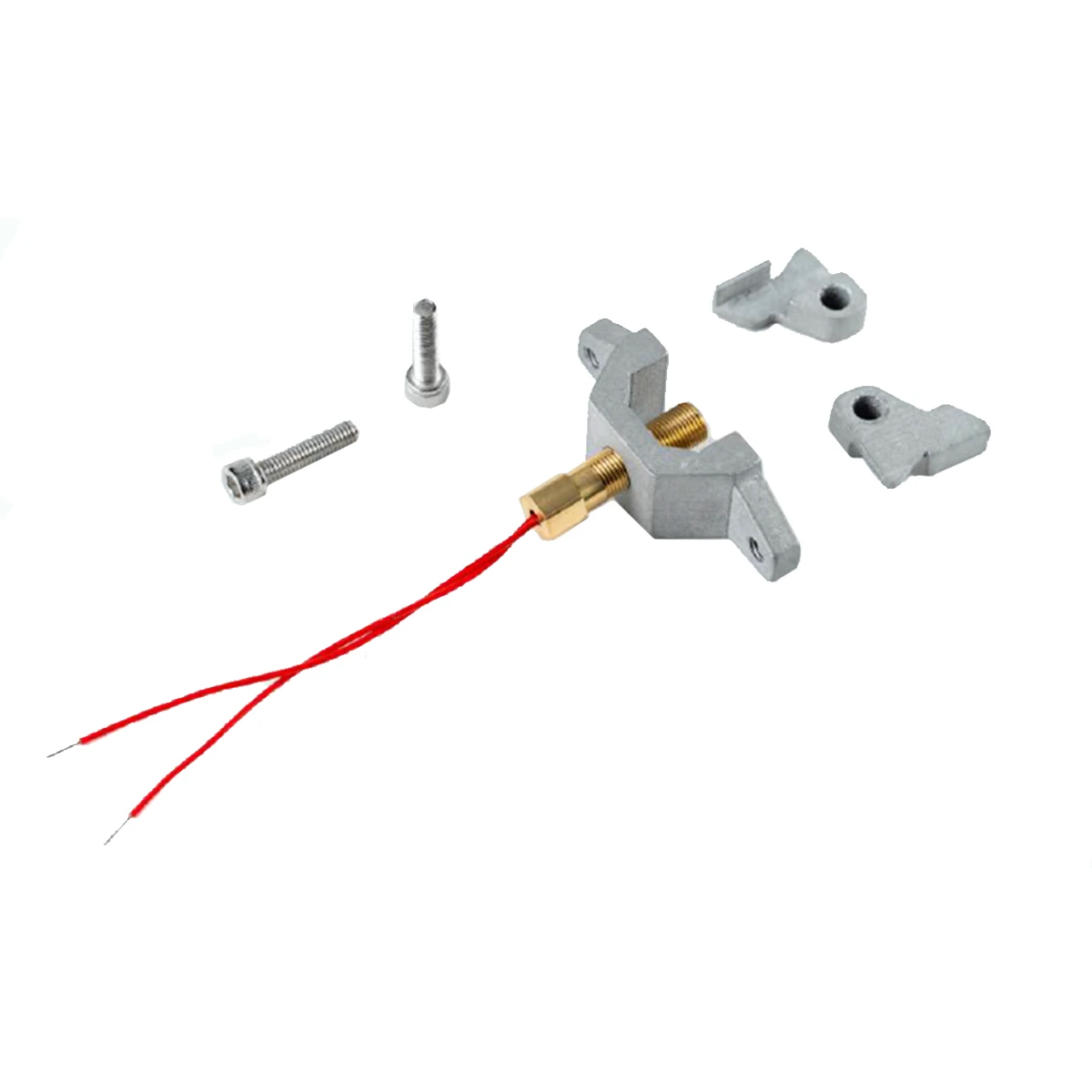

Metron Actuator For Ceiling or Wall Mounted Atom X M Series/Atom X Pro
INC VAT
Code: FPS114/560
The Metron Actuator is an integral part of the Atom X M Series/Atom X Pro. The Metron Actuator receives an electrical impulse from the fire suppression panel which causes the actuator to activate and break the heat sensitive bulb placed at the discharge point of Atom X units. When one Metron Actuator activates, all Metron Actuators will trigger, causing total room flooding for ultimate fire suppression.
When one Metron Actuator activates, all Metron Actuators will trigger, causing total room flooding for ultimate fire suppression.
Description | UOM | Technical Detail |
Product Code | - | SM-RM2431 |
Minimum Piston Stroke Length (mm) | (mm) | 9.5 |
Body/Piston Material | - | Brass/Stainless Steel |
Minimum Work Output (Joules) | Joules | 4.9 |
Typical Peak Thrust (Newton’s) | Newton’s | 1800 |
Service Life (Ambient) (Years) | -Years | 10 |
Operating Temperature (OC) | OC) | -40 to +70 |
Electrical Resistance Range (Ohms) | Ohms | 0.9 - 1.6 |
Maximum No Fire Current (Amps) | Amps | 30 sec pulse: 0.15 0.05 sec pulse: 0.3 |
Minimum Single Fire Current (Amps) | Amps | DC: 0.6 0.01 sec pulse: 0.9 |
Recommended Series Firing Current (Amps) | Amps | 3 |
Maximum distance of Metron head from the QBD | mm | 7 |
Merton Threads on body | - | M 8 X 0.75 |
The Metron Actuator is an integral part of the Atom X M Series/Atom X Pro. The Metron Actuator receives an electrical impulse from the fire suppression panel which causes the actuator to activate and break the heat sensitive bulb placed at the discharge point of Atom X units. When one Metron Actuator activates, all Metron Actuators will trigger, causing total room flooding for ultimate fire suppression.
When one Metron Actuator activates, all Metron Actuators will trigger, causing total room flooding for ultimate fire suppression.
Description | UOM | Technical Detail |
Product Code | - | SM-RM2431 |
Minimum Piston Stroke Length (mm) | (mm) | 9.5 |
Body/Piston Material | - | Brass/Stainless Steel |
Minimum Work Output (Joules) | Joules | 4.9 |
Typical Peak Thrust (Newton’s) | Newton’s | 1800 |
Service Life (Ambient) (Years) | -Years | 10 |
Operating Temperature (OC) | OC) | -40 to +70 |
Electrical Resistance Range (Ohms) | Ohms | 0.9 - 1.6 |
Maximum No Fire Current (Amps) | Amps | 30 sec pulse: 0.15 0.05 sec pulse: 0.3 |
Minimum Single Fire Current (Amps) | Amps | DC: 0.6 0.01 sec pulse: 0.9 |
Recommended Series Firing Current (Amps) | Amps | 3 |
Maximum distance of Metron head from the QBD | mm | 7 |
Merton Threads on body | - | M 8 X 0.75 |
