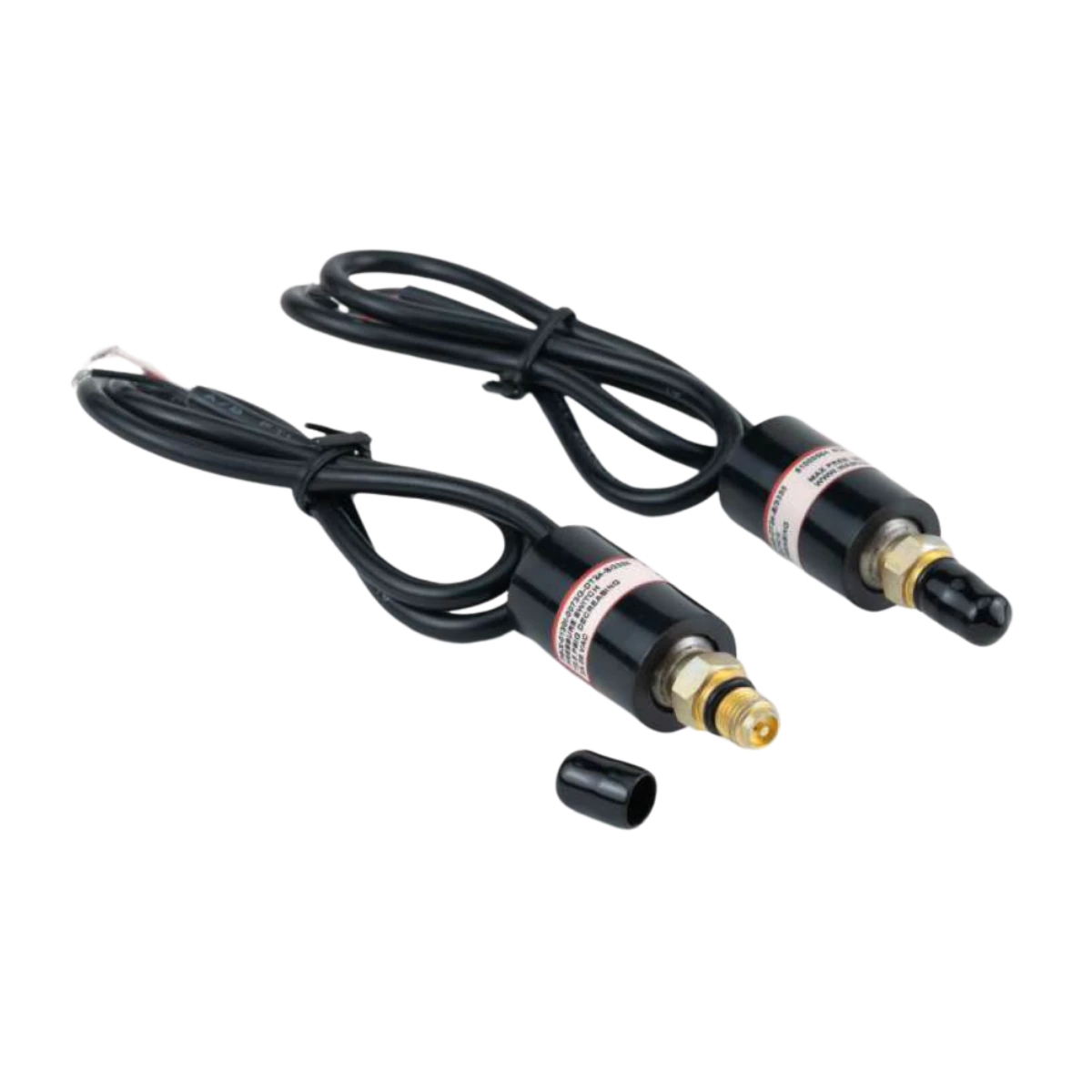

Monitorable Pressure Switch For Ceiling or Wall Mounted Atom X M Series/Atom X Pro
INC VAT
Code: FPS144/561
The Monitorable Pressure Switch is designed for the ceiling or wall mounted Atom X M Series automatic extinguishers/Atom X Pro. The pressure switch is fitted onto the Atom X M Series and allows the pressure to be monitored.
A reduction in pressure indicates that the automatic extinguisher has activated. This means that the presence of pressure switch is vital for monitoring the status of your automatic fire extinguishers, making it a perfect addition to any extinguishers that are had top access.
In addition to this, the pressure switch adds a new aspect to fire detection and evacuation. The pressure switch links with your detectors for rapid extinguisher activation. In addition to this, when an automatic extinguisher has triggered, occupants can be alerted through a sounder, resulting in faster evacuation.
Allows for easy monitoring of automatic fire extinguisher pressure levels.
Links with an array of detectors including heat and smoke detectors.
Can link with evacuation sounders for efficient evacuation.
Can be retrofitted to Atom X M Series Automatic Extinguishers.
Product Code | SM-RM4307 |
Increasing Activation | 130 PSIG ± 9 PSIG [9 BAR] |
Decreasing Activation | 72.5 PSIG ± 7 PSIG [5 BAR] |
Max Pressure | 290 PSIG |
Connector | NONE |
Fitting | M10 WITH DEFLATOR |
Fitting Material | BRASS |
Body Material | PLASTIC |
Electrical Rating | 3A 240 VAC/28 VDC |
Wire Jacket/insulator Material | PVC |
O-ring Provided With Switch | NBR-70 SHORE (7.8X1.9 mm) |
Certification | UL, RoHS, CE |
The Monitorable Pressure Switch is designed for the ceiling or wall mounted Atom X M Series automatic extinguishers/Atom X Pro. The pressure switch is fitted onto the Atom X M Series and allows the pressure to be monitored.
A reduction in pressure indicates that the automatic extinguisher has activated. This means that the presence of pressure switch is vital for monitoring the status of your automatic fire extinguishers, making it a perfect addition to any extinguishers that are had top access.
In addition to this, the pressure switch adds a new aspect to fire detection and evacuation. The pressure switch links with your detectors for rapid extinguisher activation. In addition to this, when an automatic extinguisher has triggered, occupants can be alerted through a sounder, resulting in faster evacuation.
Allows for easy monitoring of automatic fire extinguisher pressure levels.
Links with an array of detectors including heat and smoke detectors.
Can link with evacuation sounders for efficient evacuation.
Can be retrofitted to Atom X M Series Automatic Extinguishers.
Product Code | SM-RM4307 |
Increasing Activation | 130 PSIG ± 9 PSIG [9 BAR] |
Decreasing Activation | 72.5 PSIG ± 7 PSIG [5 BAR] |
Max Pressure | 290 PSIG |
Connector | NONE |
Fitting | M10 WITH DEFLATOR |
Fitting Material | BRASS |
Body Material | PLASTIC |
Electrical Rating | 3A 240 VAC/28 VDC |
Wire Jacket/insulator Material | PVC |
O-ring Provided With Switch | NBR-70 SHORE (7.8X1.9 mm) |
Certification | UL, RoHS, CE |
